Toyota QUICK DELI/URBAN SUP721 — CYLINDER HEAD

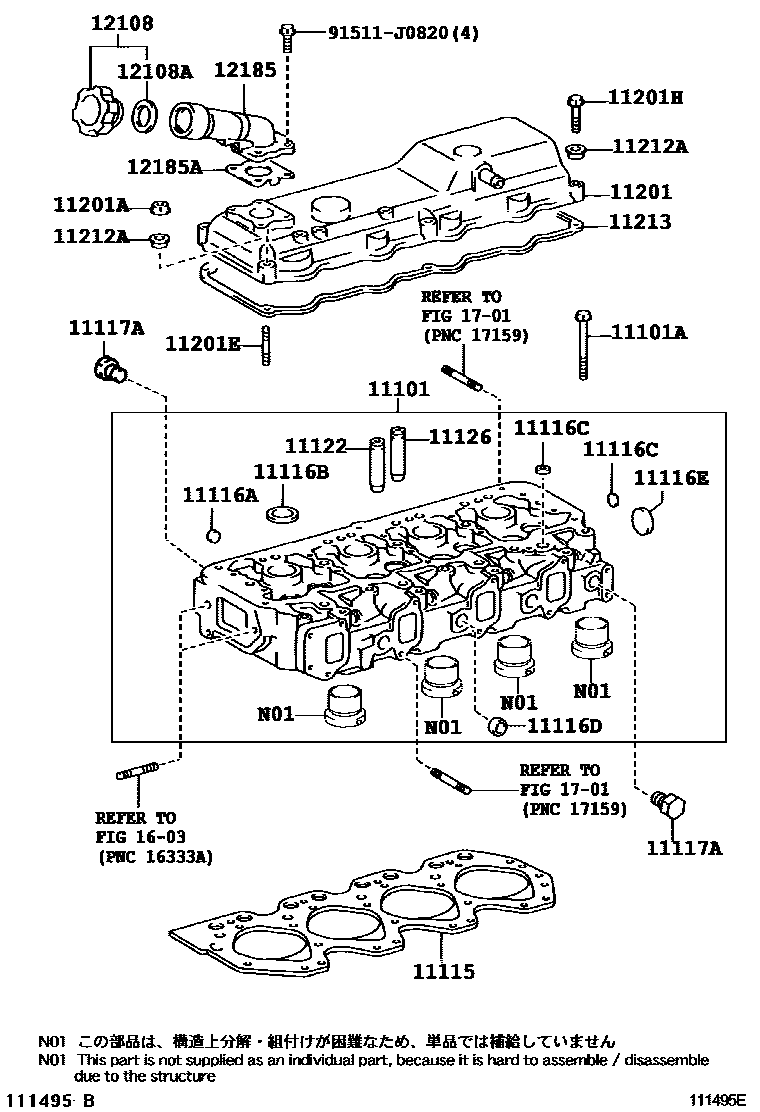

Parts diagram

11101ABOLT(FOR CYLINDER HEAD SET)

11115GASKET, CYLINDER HEAD

11116APLUG, TIGHT, NO.1

11116BPLUG, TIGHT, NO.2

11116CPLUG, TIGHT, NO.3

11116DPLUG, TIGHT, NO.4

11116EPLUG, TIGHT, NO.5

11117APLUG, W/HEAD TAPER SCREW, NO.1

11122BUSH, INTAKE VALVE GUIDE

11126BUSH, EXHAUST VALVE GUIDE

11201COVER SUB-ASSY, CYLINDER HEAD

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)

11201HBOLT(FOR CYLINDER HEAD COVER)

11212COVER, CYLINDER HEAD, NO.2

11212ACUSHION, CYLINDER HEAD COVER

11213GASKET, CYLINDER HEAD COVER

12108CAP SUB-ASSY, OIL FILLER

12108AGASKET(FOR OIL FILLER CAP)

12185HOUSING, OIL FILLER CAP

12185AGASKET, OIL FILLER CAP HOUSING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

91511J0820

25 parts on this diagram · 7 diagrams in section

CYLINDER HEAD for Toyota QUICK DELI/URBAN SUP721

This section contains 68 genuine Toyota parts for the CYLINDER HEAD system of the Toyota QUICK DELI/URBAN SUP721. Key components include: TIMING GEAR COVER & REAR END PLATE, HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), WASHER, PLATE(FOR CYLINDER HEAD SET), TUBE(FOR CYLINDER HEAD).
