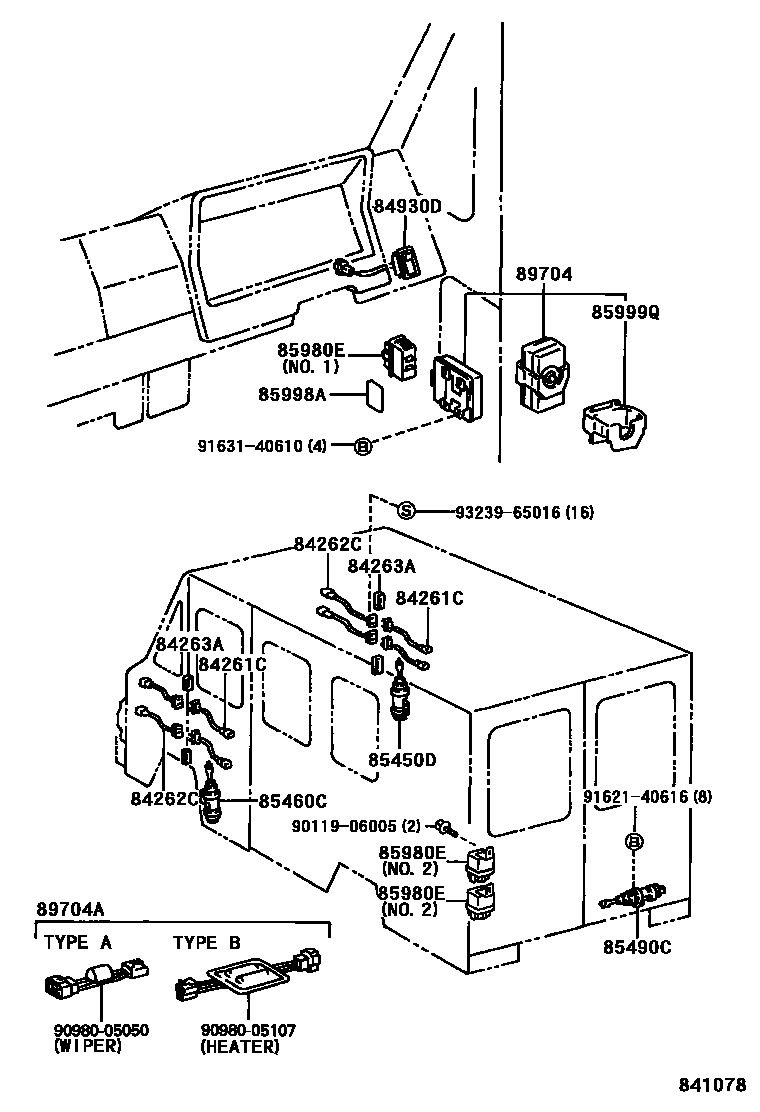

WIRELESS DOOR LOCK

84261CJUNCTION, SLIDE DOOR CONTROL,MALE NO.1

main84261-90D00×4iLH8#,LY15#;BU68,RZU68..N199505

84262CJUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1

main84262-95J00×4iLH8#,LY15#;BU68,RZU68..N199505

84263ACUSION, SLIDE DOOR JUNCTION

main84263-90D00×4iLH8#,LY15#;BU68,RZU68..N199505

84930DSWITCH, DOOR CONTROL

main84931-95400iLH8#,LY15#;BU68,RZU68..N199505

85450DSOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-90D01iLH81,LY151199505-199905

main85450-90F00iBU68..N199505

85460CSOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-90D01iLH82,LY152,RZU68199610

main85450-90F00iBU68..N199505

85490CSOLENOID ASSY, BACK DOOR CONTROL

main85450-26020iLH8#,LY15#199505

main85450-36020iBU68..N199505

main85450-90D01iLH8#,LY15#199505

main85450-90F00iBU68..N199505

85980ERELAY ASSY, DOOR CONTROL

main85980-25020iBU68..N199607

main85980-25030×2iBU68..N199607

main85980-25040×2iLH8#,LY15#; RZU68199701

main85980-90A00×2iBU68..N199505-199607

main85980-90D00iRZU68199610

main85980-90F00iBU68..N199505-199607

main88630-14010×2iLH81,LY151199505-199701

85998APLATE, RELAY CAUTION

main85998-25010iLH82,LY152;BU68,RZU68..N199505

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36040iLH81,LY151;BU68,RZU68..N199505-199709

main85999-36050iLH8#,LY15#;BU68,RZU68..N199709

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-25010iLH8#,LY15#,RZU68199709

main89704-25020iBU68..N199709

main89704-26050iLH81,LY151,RZU68199505-199709

main89704-37020iBU68..N199505-199709

main89704-90D02iLH81,LY151,RZU68199505-199709

main89704-90F02iBU68..N199505-199709

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05050iLH8#,LY15#;BU68,RZU68..N199505

main90980-05107iLH8#,LY15#;BU68,RZU68..N199505

9011906005

main90119-06005

9162140616

main91621-40616

9163140610

main91631-40610

9323965016

main93239-65016

16 parts on this diagram · 1 diagram in section
