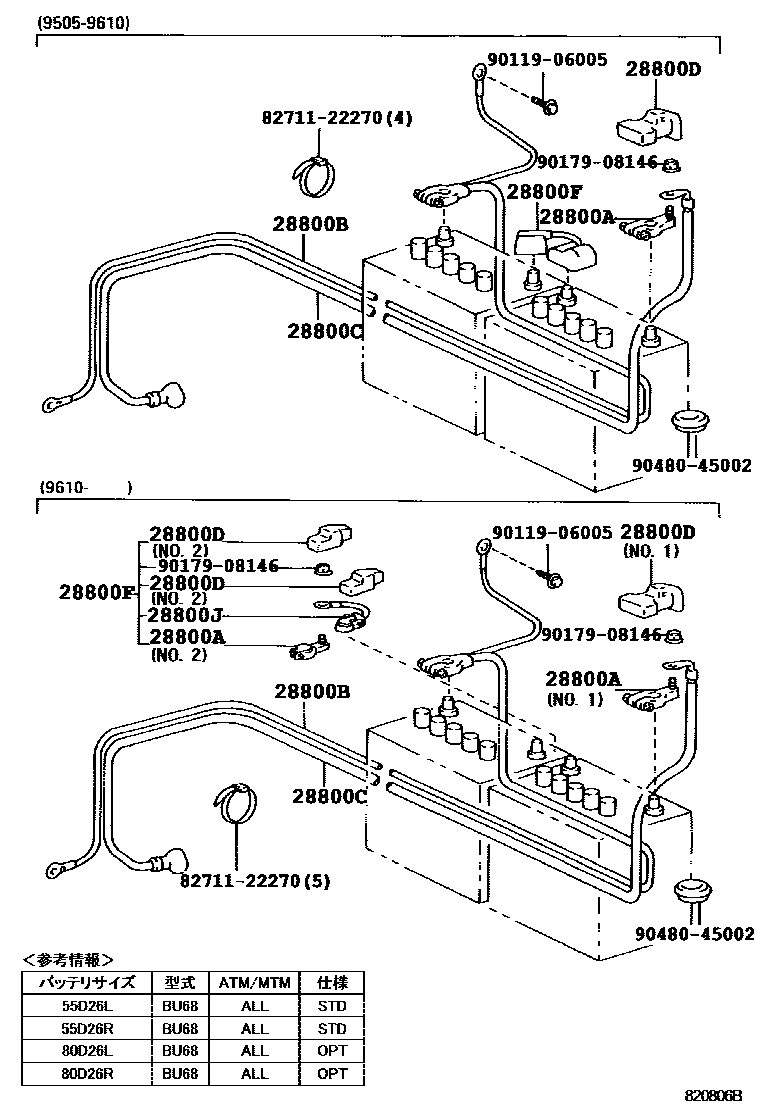

BATTERY & BATTERY CABLE

0001 1 0002 1 0004 1����� ���

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i3L,5L,3RZFP..LH8#,LY15#,RZU68199610

main90982-05035i3B..BU68199610-199908

28800BCABLE, BATTERY TO GROUND

main82123-25010i3B..BU68199505-199610

main82123-25011i3B..BU68199610-199708

main82123-25012i3B..BU68199708-199908

main82123-25020i3RZFP..RZU68199610-199708

main82123-25021i3RZFP..RZU68199708-199908

main82123-25030i3L..LH81,LY151199610-199905

main82123-25031i5L..LH82,LY152..MTM199905

main82123-25040i5L..LH82..ATM199905

main82123-25050i5L..LH82,LY152199905

main82123-90D03i3L..LH81,LY151199505-199610

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-25010i3B..BU68199505-199708

main82122-25011i3B..BU68199708-199908

main82122-25020i3RZFP..RZU68199610-199708

main82122-25021i3RZFP..RZU68199708-199908

main82122-25030i5L..LH82,LY152..MTM199905

main82122-25040i5L..LH82..ATM199905

main82122-25050i5L..LH82,LY152199905

main82122-26180i3L..LH81,LY151..MTM199505-199905

main82122-26220i3L..LH81,LY151..MTM; 3L..LH81..ATM199505-199905

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150×2i3B..BU68199610-199908

main82821-22110i3B..BU68199505-199610

28800FCABLE, BATTERY TO BATTERY

main82124-25010i5L..LH82,LY152199905

main82124-36010i3B..BU68199505-199610

main82124-36011i3B..BU68199610

28800JTERMINAL, BATTERY NEGATIVE

main90982-06013i3B..BU68199610-199908

main90982-06028×2i5L..LH82,LY152; 5L..LH82..ATM199905

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011906005

main90119-06005

9017908146

main90179-08146

9048045002

main90480-45002

10 parts on this diagram · 3 diagrams in section
