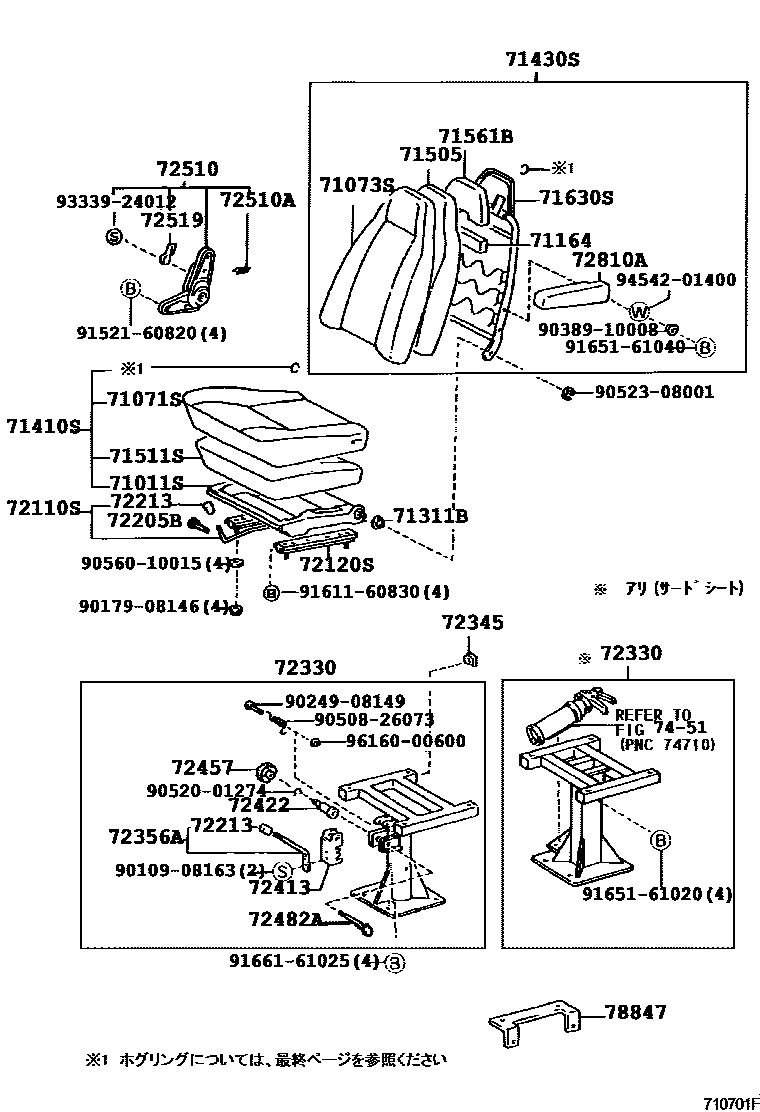

SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1������� 0004 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-90D02-B1iBU68,LH8#,LY15#,RZU68199505

BLUISH GRAY,TRIM1#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-25030-B0iBU68,LH8#,LY15#,RZU68199505-199909

BLUISH GRAY,TRIM1#

main71071-25031-B1iLH82,LY152199909

BLUISH GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-25040-B0iBU68,LH8#,LY15#..D199505-199909

BLUISH GRAY,TRIM1#

main71073-25041-B1iLH82,LY152199909

BLUISH GRAY,TRIM1#

main71073-25050-B0iBU68,RZU68..N; BU68..D199505-199908

main71073-25051-B1iLH82,LY152199909

main71073-25060-B0iLH8#199505-199909

main71073-25061-B1iLH82199909

71164PAD, DRIVER SEATBACK, NO.2

main71164-90500iBU68,LH8#,LY15#,RZU68199505

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12005iBU68,LH8#,LY15#199505

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-25030-B1iBU68,LH8#,LY15#,RZU68199505-199909

***,BLUISH GRAY,TRIM1#

main71410-25031-B2iLH82,LY152199909

***,BLUISH GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-25050-B1iBU68,LH8#,LY15#..D199505-199909

***,BLUISH GRAY,TRIM1#

main71430-25051-B2iLH82,LY152199909

***,BLUISH GRAY,TRIM1#

main71430-25060-B1iBU68,RZU68..N; BU68..D199505-199908

main71430-25061-B2iLH82,LY152199909

main71430-25070-B1iLH8#199505-199909

main71430-25071-B2iLH82199909

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-90501iBU68,LH8#,LY15#..D199505

main71505-90D00iBU68,RZU68..N; BU68..D; LH8#,LY15#199505

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-90D02iBU68,LH8#,LY15#,RZU68199505

71561BPAD, FRONT SEATBACK, UPPER

main71561-90D00iBU68,LH8#,LY15#,RZU68199505

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-90D01-B0iBU68,RZU68..N; BU68..D199505-199908

main71630-90D02-B0iBU68,LH8#,LY15#..D199505

BLUISH GRAY,TRIM1#

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-90D01iBU68,LH8#199505

main72110-90D02iBU68..N; LH8#; LY15#,RZU68199505

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-90D00iBU68,LH81,LY151,RZU68199505-199905

main72120-90D01iBU68..N; LH8#199505

72205BPIN SUB-ASSY, SEAT TRACK OPEN LEVER

main72205-90K00×2iLH81199505-199905

72213KNOB, SEAT TRACK ADJUSTING HANDLE

main72213-12040iBU68,LH81,LY151,RZU68199505-199905

72330STAND ASSY,SEAT

main72330-25010-B0iBU68..D199505-199908

BLUISH GRAY,TRIM1#

main72330-25020-B1iBU68..D199505-199908

main72330-25030-B1iBU68..N199505-199908

BLUISH GRAY,TRIM1#

main72330-25040-B1iBU68..N199505-199908

main72330-25050-B1iLH8#199505

main72330-25060-B1iLH8#,LY15#199505

main72330-25070-B1iLY15#199505

main72330-90D08-B0iLH8#199505

BLUISH GRAY,TRIM1#

main72330-90D10-B0iLH8#199505

main72330-90D51-B0iLY15#199505

BLUISH GRAY,TRIM1#

72345CAP, SEAT STAND FRAME

main72345-90D00×2iBU68,LH8#,LY15#,RZU68199505

72356APLATE, VERTICAL ADJUSTER RELEASE

main72356-90D01iLH82,LY152;BU68,RZU68..N199505

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-90D01-B0iBU68,LH8#,LY15#,RZU68199505

BLUISH GRAY,TRIM1#

72422ROD, VERTICAL ADJUSTER

main72422-90D00iBU68,LH8#,LY15#,RZU68199505

72457KNOB, VERTICAL SEAT ADJUSTER

main72457-20050-B0iBU68,LH8#,LY15#,RZU68199505

BLUISH GRAY,TRIM1#

72482AROD, VERTICAL ADJUSTER, NO.2

main72482-90D00iBU68,LH8#,LY15#,RZU68199505

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-90D00-B0iBU68,LH8#,LY15#,RZU68199505

BLUISH GRAY,TRIM1#

72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

main90506-12287iBU68,LH8#,LY15#,RZU68199505

72519KNOB, RECLINING SEATBACK ADJUSTING ARM

main72553-12010iBU68,LH8#,LY15#,RZU68199505

72810AARMREST ASSY, SEAT, RH

main72830-25010-B0iBU68,LH8#,LY15#,RZU68199505-199908

BLUISH GRAY,TRIM1#

main72830-25011-B0iLH82,LY152199909-200108

BLUISH GRAY,TRIM1#

7451ARMREST & VISOR

→ Go to FIG 74-51

78847PLATE, CENTER SUB SEAT BRACKET

main78847-90D01iLH8#199505

9010908163

main90109-08163

9017908146

main90179-08146

9024908149

main90249-08149

9038910008

main90389-10008

9050826073

main90508-26073

9052001274

main90520-01274

9052308001

main90523-08001

9056010015

main90560-10015

9152160820

main91521-60820

9161160830

main91611-60830

9165161020

main91651-61020

9165161040

main91651-61040

9166161025

main91661-61025

9333924012

main93339-24012

9454201400

main94542-01400

9616000600

main96160-00600

44 parts on this diagram · 4 diagrams in section
