LOCK CYLINDER SET

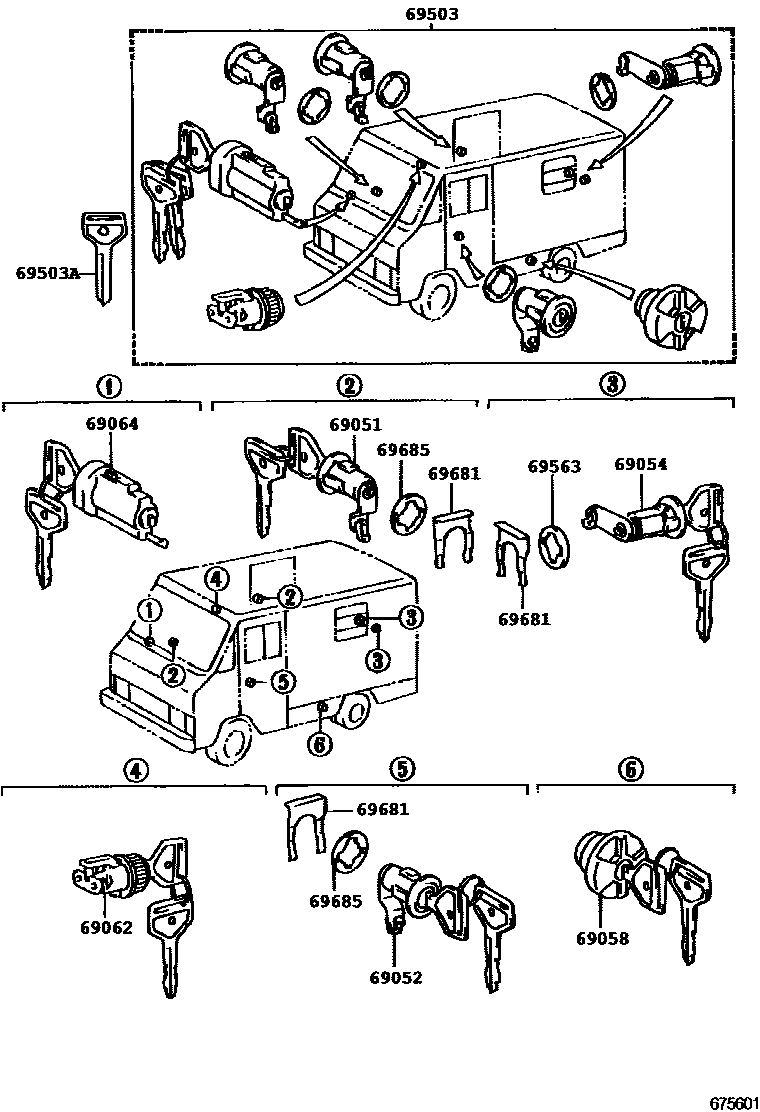

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69053-26010i199505-199605

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69054-26040i199505-199605

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69009-90D00i199505-199605

main69055-90D00i199505-199605

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-25010i199511-199605

main69058-89102i199505-199511

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-25010i199511-199605

main69056-30030i199505-199511

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20010i199505-199511

main69057-25010i199511-199605

main69057-25021i199605

69503CYLINDER SET, LOCK

main69005-25010i199605-199912

main69005-25011i199912

main69005-25020i199605-199912

main69005-25021i199912

main69005-25030i199603-199605

main69005-25040i199605-199908

main69005-25040i199605-199912

main69005-25041i199912

main69005-25050i199610-199908

main69005-90D03i199505-199605

main69005-90D03i199505-199605

main69005-90D03i199505-199603

main69005-90D06i199505-199605

69503AKEY, BLANK

main90999-00085i199505-199605

main90999-00163i199605-199908

main90999-00163i200004

main90999-00212i199511-199603

69563PAD, BACK DOOR LOCK CYLINDER

main69513-38010i199605

main69513-90A00i199505-199605

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69511-32010i199605-199606

main69512-87001i199606

main69681-20040i199505-199605

69685PAD, LOCK CYLINDER

main69513-12020i199505-199605

11 parts on this diagram · 2 diagrams in section
