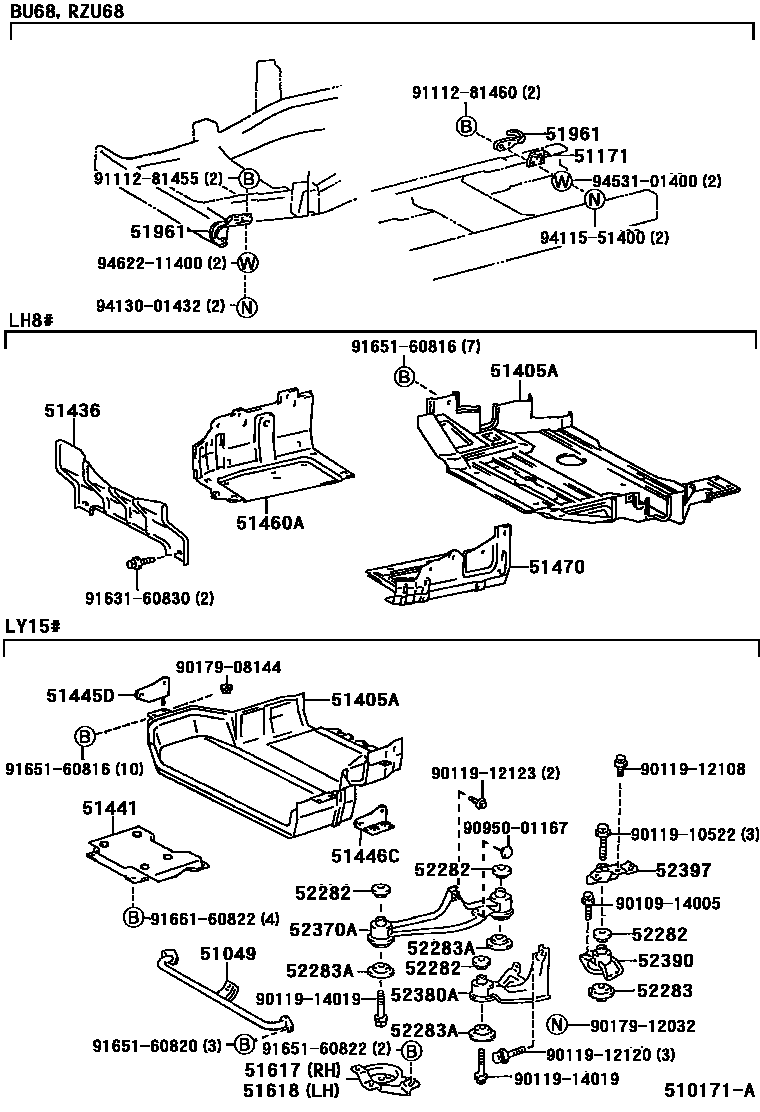

SUSPENSION CROSSMEMBER & UNDER COVER

51049BAR SUB-ASSY, UNDER GUARD, FRONT

main51049-26010iLY15#199505

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36080iBU68,RZU68199505

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-25040iLY15#199505

main51405-25060iLH8#..ATM199505

main51405-25070iLH8#..MTM199505

51436PROTECTOR, ENGINE FRONT SUPPORT

main51436-25020iLH8#199505

51441COVER, ENGINE UNDER, NO.1

main51440-25020iLY15#199505

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-25060iLY15#199505

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-25040iLY15#199505

51460ACOVER ASSY, TRANSMISSION UNDER, RH

main51460-25030iLH8#..MTM199505

51470COVER ASSY, TRANSMISSION UNDER

main51470-25030iLH8#..MTM199505

51617GUARD, FRONT DIFFERENTIAL SUPPORT, RH

main51617-26010iLY15#199505

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-26010iLY15#199505

51961HOOK, NO.1

main51961-36020iBU68,RZU68199505

REAR

main51961-36040iBU68,RZU68199505

FRONT

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-95J00×4iLY15#199505

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-26010iLY15#199505

52283ASTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-95J00×3iLY15#199505

52370ASUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH

main52370-26010iLY15#199505

52380ASUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH

main52380-26011iLY15#199505

52390SUPPORT ASSY, FRONT DIFFERENTIAL, REAR

main52390-95J01iLY15#199505

52397BRACKET, FRONT DIFFERENTIAL REAR SUPPORT

main52397-26010iLY15#199505

9010914005

main90109-14005

9011910522

main90119-10522

9011912108

main90119-12108

9011912120

main90119-12120

9011912123

main90119-12123

9011914019

main90119-14019

9017908144

main90179-08144

9017912032

main90179-12032

9095001167

main90950-01167

9111281455

main91112-81455

9111281460

main91112-81460

9163160830

main91631-60830

9165160816

main91651-60816

9165160820

main91651-60820

9165160822

main91651-60822

9166160822

main91661-60822

9411551400

main94115-51400

9413001432

main94130-01432

9453101400

main94531-01400

9462211400

main94622-11400

39 parts on this diagram · 1 diagram in section
