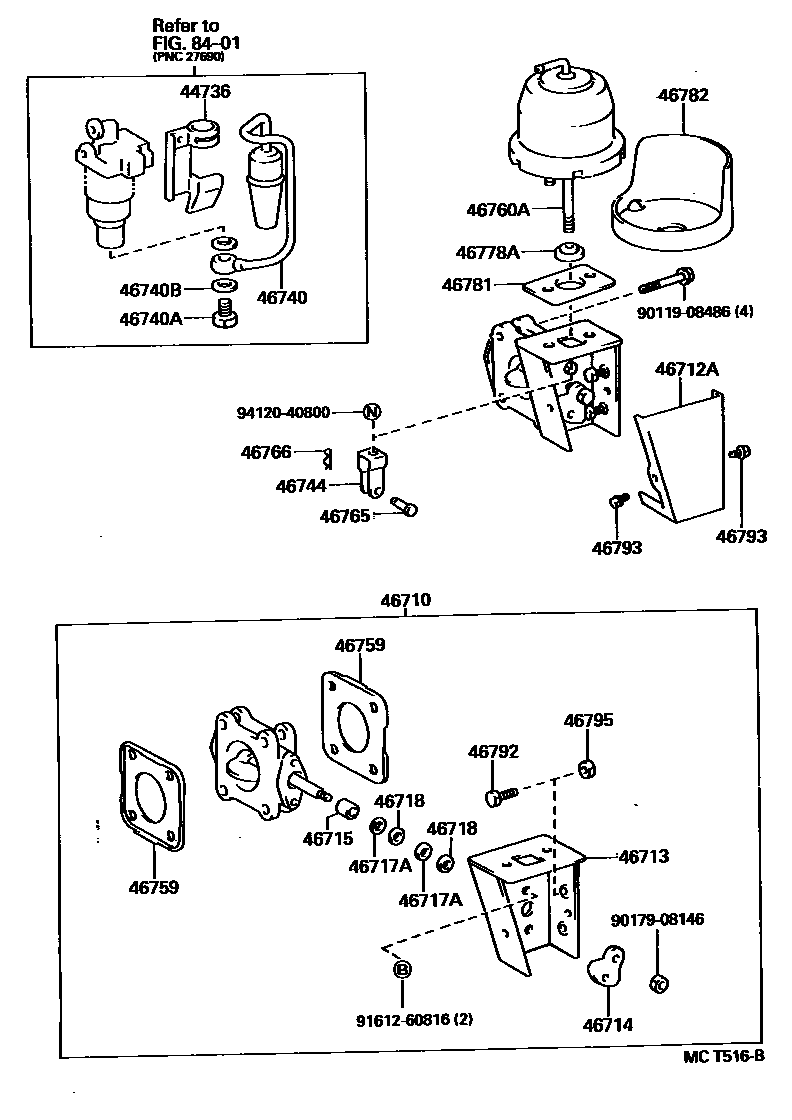

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

44736BRACKET, AIR CLEANER

main44736-36070iBU68199505-199711

main44736-37030iBU68199711

46710VALVE ASSY, EXHAUST BRAKE

main46710-36170iBU68199505

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBU68199505

46713BRACKET, EXHAUST VALVE

main46713-36060iBU68199505

46714LEVER, EXHAUST VALVE

main46714-36010iBU68199505

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBU68199505

main46715-36060iBU68199505

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBU68199505

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBU68199505

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36080iBU68199505

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU68199505

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBU68199505

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBU68199505

46759GASKET, EXHAUST RETARDER

main46759-36040×2iBU68199505

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36093iBU68199505

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBU68199505

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU68199505

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBU68199505

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBU68199505

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iBU68199505

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBU68199505

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBU68199505

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBU68199505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908486

main90119-08486

9017908146

main90179-08146

9161260816

main91612-60816

9412040800

main94120-40800

27 parts on this diagram · 1 diagram in section
