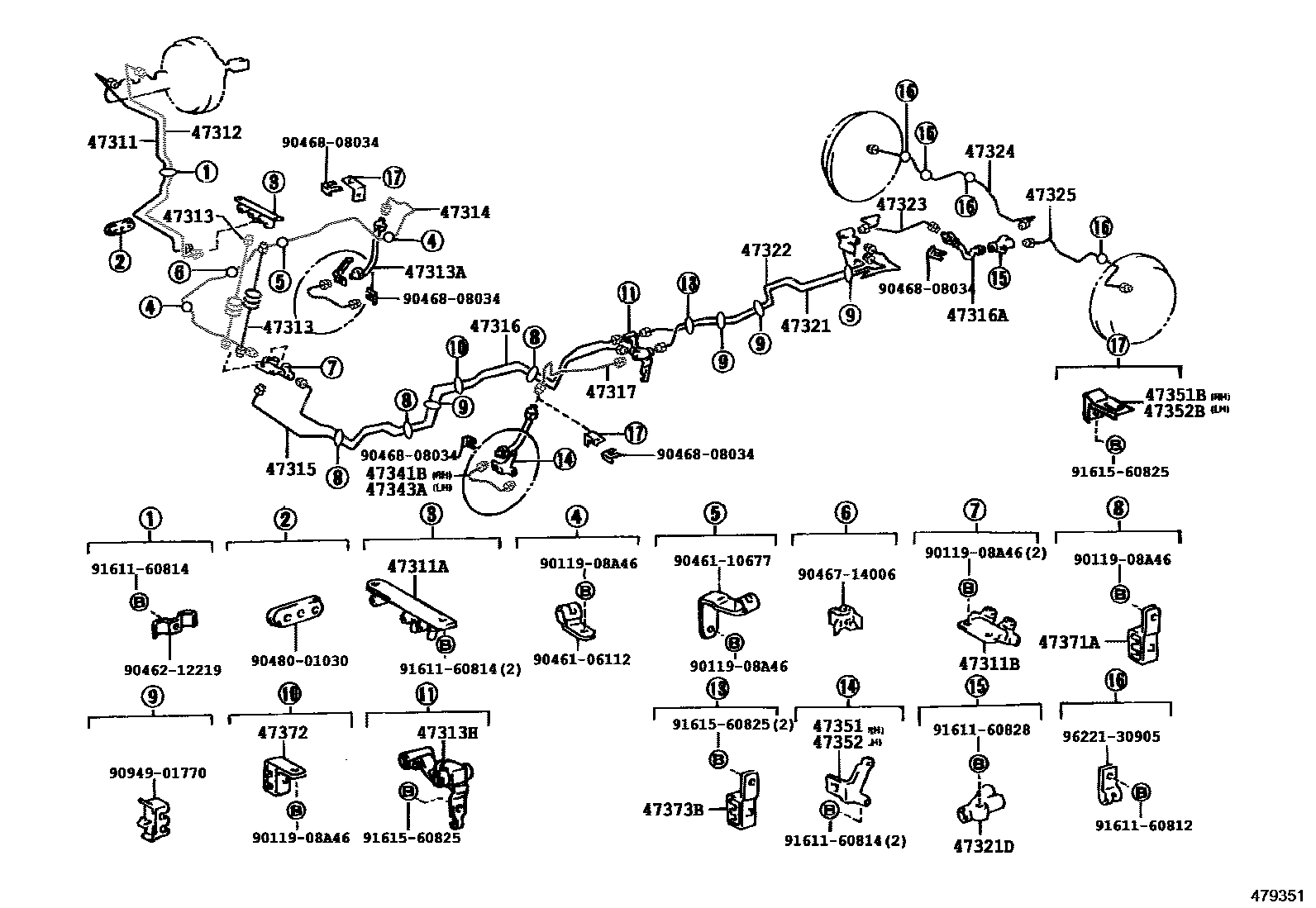

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25280iBU68,RZU68199505

main47311-25401iLH82,LY152199905

main47311-26270iLH81,LY151199505-199905

47311AWAY(FOR FRONT BRAKE TUBE)

main47351-25130iLH82,LY152199905

main90412-10104iLH81,LY151199505-199905

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-12020iBU68,RZU68199505

main90413-10187iLH81,LY151199505-199905

main90904-13058iLH82,LY152199905

47312TUBE, FRONT BRAKE, NO.2

main47321-25140iBU68,RZU68199505

main47321-25261iLH82,LY152199905

main47321-26180iLH81,LY151199505-199905

47313TUBE, FRONT BRAKE, NO.3

main47312-26221×2iLH81199505-199905

main47312-26260×2iLY151199505-199905

main47319-25050iBU68,RZU68199505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02477×2iLH81199505-199905

main90947-02522×2iLY151199505-199905

main90947-02576×2iBU68,RZU68199505-199903

main90947-02A59×2iBU68,RZU68199903-199905

main90947-02E77×2iLH82199905

main90947-02F22×2iLY152199905

main90947-02L59×2iBU68,RZU68199905

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90904-13023iLH8#,LY151199505-199906

47314TUBE, FRONT BRAKE, NO.4

main47313-25130iLH81199505-199905

main47313-25140iLY151199505-199905

main47313-25161iLH82199905

main47313-25171iLY152199905

main47329-25010iBU68,RZU68199505

47315TUBE, FRONT BRAKE, NO.5

main47314-25160iLH81199505-199905

main47314-25180iLY151199505-199905

main47314-25201iLH82199905

main47314-25221iLY152199905

main47318-25040iBU68,RZU68199505

47316TUBE, FRONT BRAKE, NO.6

main47323-25130iLH81199505-199905

main47323-25140iLY151199505-199905

main47323-25161iLH82199905

main47323-25171iLY152199905

main47328-25050iBU68,RZU68199505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02557iLH8#199505

main90947-02621iLY15#199505

main96912-34005iBU68,RZU68199505-199903

main96912-34007iBU68,RZU68199903

47317TUBE, FRONT BRAKE, NO.7

main47312-37040iBU68,RZU68199505

main47315-25090iLY151199505-199905

main47315-25100iLH8#199505

47321TUBE, REAR BRAKE, NO.1

main47316-25170iLH8#,LY15#199505

main47322-37100iBU68,RZU68199505

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-12049iBU68,RZU68199505

main90413-10147iLH8#,LY15#199505

47322TUBE, REAR BRAKE, NO.2

main47324-25290iLH8#,LY15#199507

main47324-26151iLH81,LY151199505-199507

main47324-37050iBU68,RZU68199505

47323TUBE, REAR BRAKE, NO.3

main47325-26190iLH8#,LY15#199505

main47325-36171iBU68,RZU68199505

47324TUBE, REAR BRAKE, NO.4

main47326-25260iBU68199505-199610

main47326-25261iBU68,RZU68199610

main47326-25431iLH82,LY152199905

main47326-26180iLH81,LY151199505-199905

47325TUBE, REAR BRAKE, NO.5

main47327-25220iBU68199505-199610

main47327-25221iBU68,RZU68199610

main47327-25391iLH82,LY152199905

main47327-26060iLH81,LY151199505-199905

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26060iLH8#199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26060iLH8#199505

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26070iLH8#199505

main47351-26090iLY15#199505

main47351-37050iBU68,RZU68199505

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47353-26030iLH8#199505

main47355-25010iBU68,RZU68199505

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26070iLH8#199505

main47352-26090iLY15#199505

main47352-37020iBU68,RZU68199505

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47353-26030iLH8#199505

main47354-25010iBU68,RZU68199505

47371ACLAMP, BRAKE TUBE, NO.1

main47372-25010×4iLH8#; LY15#199505

47372CLAMP, BRAKE TUBE, NO.2

main47373-26010iLH8#199505

47373BCLAMP, BRAKE TUBE, NO.3

main47372-25010iLH8#,LY15#199505

9011908A46

main90119-08A46

9046106112

main90461-06112

9046110677

main90461-10677

9046212219

main90462-12219

9046714006

main90467-14006

9046808034

main90468-08034

9048001030

main90480-01030

9094901770

main90949-01770

9161160812

main91611-60812

9161160814

main91611-60814

9161160828

main91611-60828

9161560825

main91615-60825

9622130905

main96221-30905
