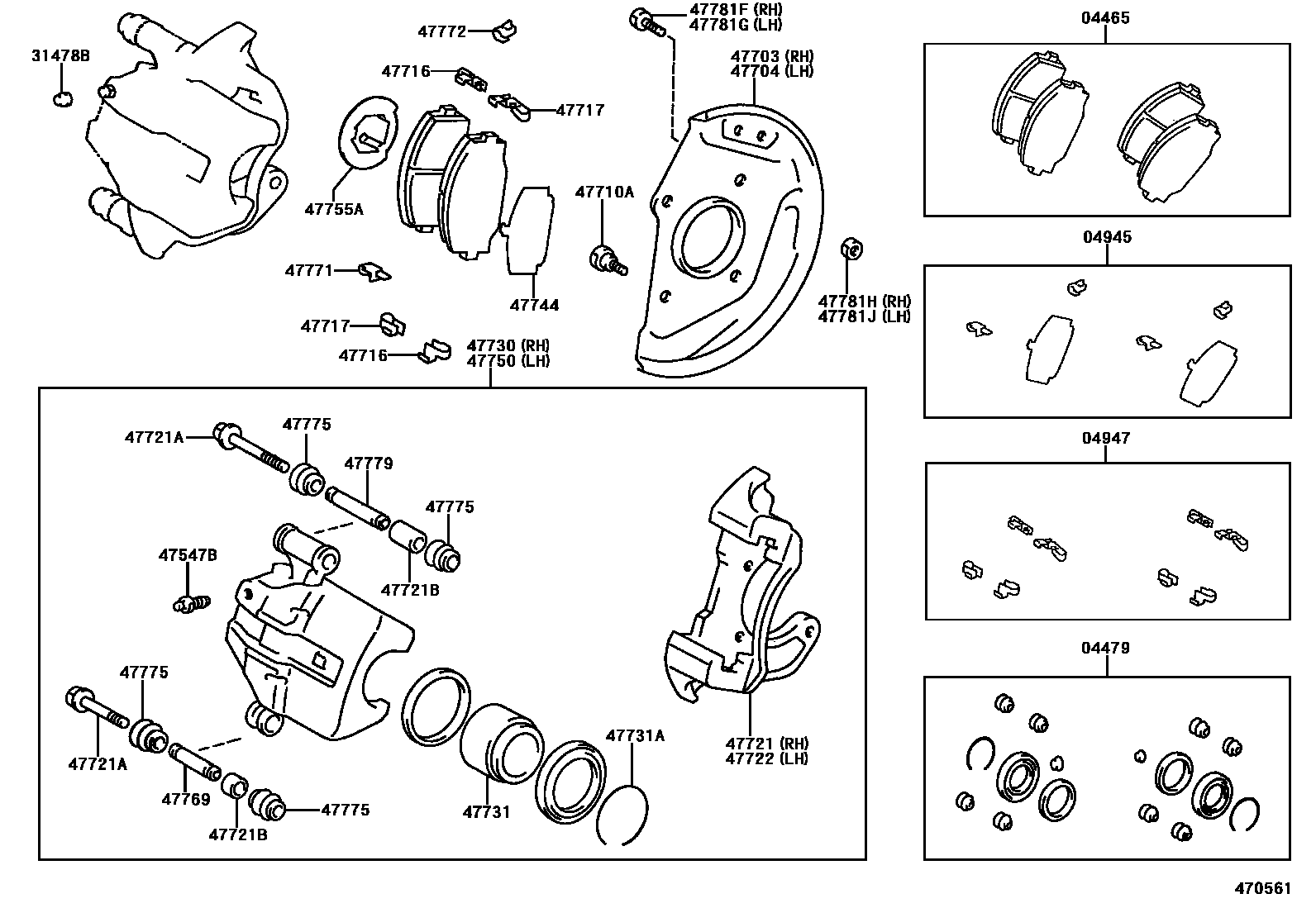

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
SUB PIN SIDE
MAIN PIN SIDE
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
47755AINSULATOR, DISC BRAKE HEAT
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47772PLATE, PAD WEAR INDICATOR, NO.2
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
31 parts on this diagram · 3 diagrams in section
