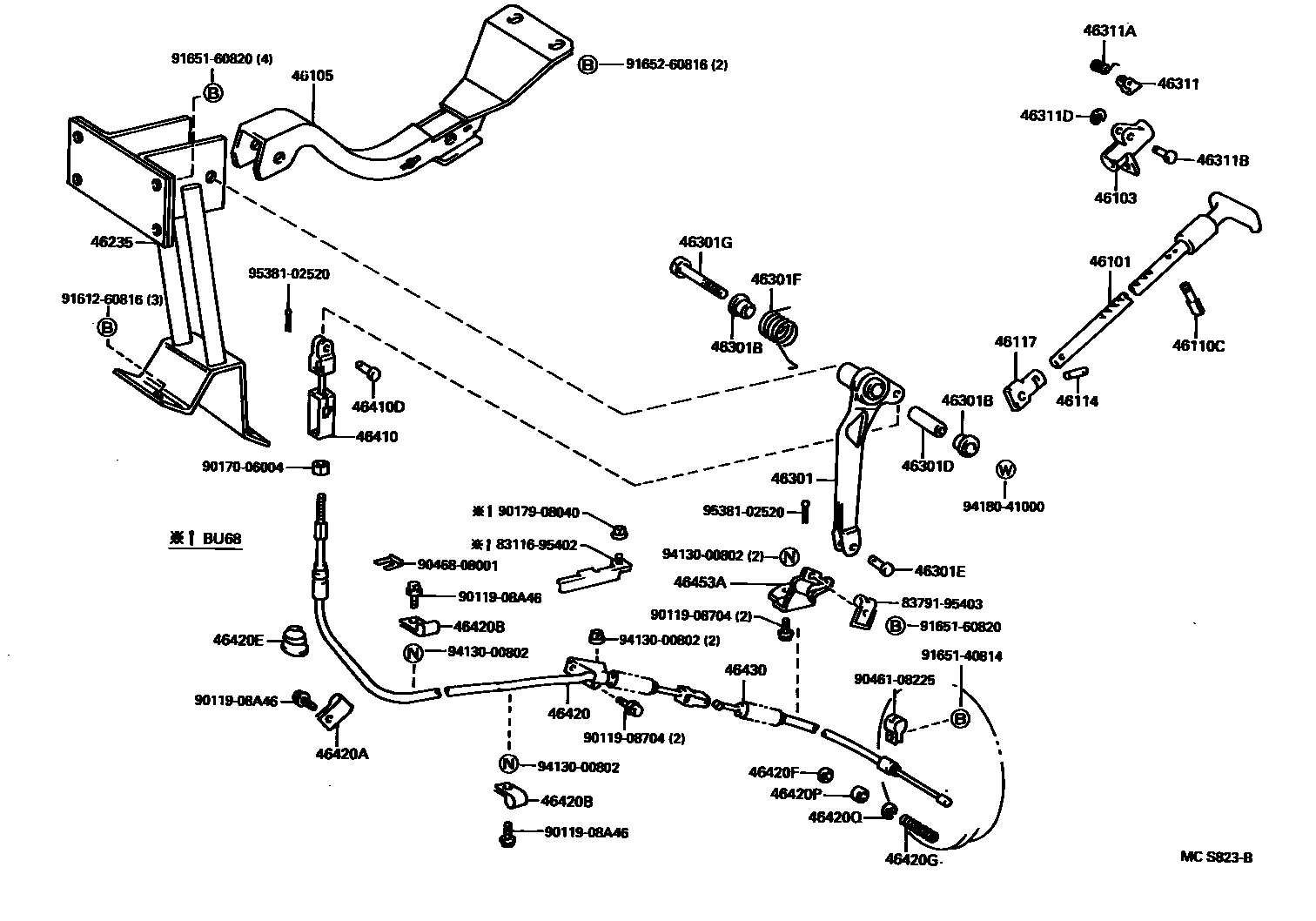

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-25050iBU68,RZU68199505

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26150iLH8#,LY15#199505

main46103-36140iBU68,RZU68199505

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-25030iBU68,RZU68199505

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main46114-20010iBU68,RZU68199505

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH8#,LY15#199505

main46114-30010iBU68,RZU68199505

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iBU68,RZU68199505

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-25020iBU68,RZU68199505

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iBU68,RZU68199505

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007×2iBU68,RZU68199505

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iBU68,RZU68199505

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iBU68,RZU68199505

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iBU68,RZU68199505

46301GBOLT(FOR INTERMEDIATE LEVER)

main91112-81070iBU68,RZU68199505

46311PAWL, PARKING BRAKE

main46311-26010iBU68,RZU68; LH8#,LY15#199505

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iBU68,RZU68199505

main90508-08106iLH8#,LY15#199505

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010×2iLH8#,LY15#199505

main90249-05010iBU68,RZU68199505

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBU68,RZU68199505

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26270iLH8#,LY15#199505

main46410-36350iBU68,RZU68199505

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iBU68,RZU68199505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-25261iBU68199505-199610

main46420-25262iBU68,RZU68199610

main46420-26150iLH8#199505

main46420-26220iLY15#199505

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-08478×3iLH8#,LY15#199505

main90461-10642iBU68,RZU68199505

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90461-10699iBU68,RZU68199610

main90461-12335×2iLH8#,LY15#199505

main90461-12406iBU68,RZU68199610

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-26006iBU68,RZU68199505

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001×2iBU68,RZU68; LH8#,LY15#199505

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14021iBU68,RZU68199505

46420PSPACER, PARKING BRAKE

main90560-08002iBU68,RZU68199505

main90560-08014×2iLH8#,LY15#199505

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU68,RZU68; LH8#,LY15#199505

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26110iLY15#199505

main46430-26151iLH8#199505

main46430-37050iBU68,RZU68199505

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37020iBU68,RZU68199505

8311695402BRACKET, SPEEDOMETER

main83116-95402

8379195403

main83791-95403

9011908704

main90119-08704

9011908A46

main90119-08A46

9017006004

main90170-06004

9017908040

main90179-08040

9046108225

main90461-08225

9046808001

main90468-08001

9161260816

main91612-60816

9165140814

main91651-40814

9165160820

main91651-60820

9165260816

main91652-60816

9413000802

main94130-00802

9418041000

main94180-41000

9538102520

main95381-02520

44 parts on this diagram · 3 diagrams in section
