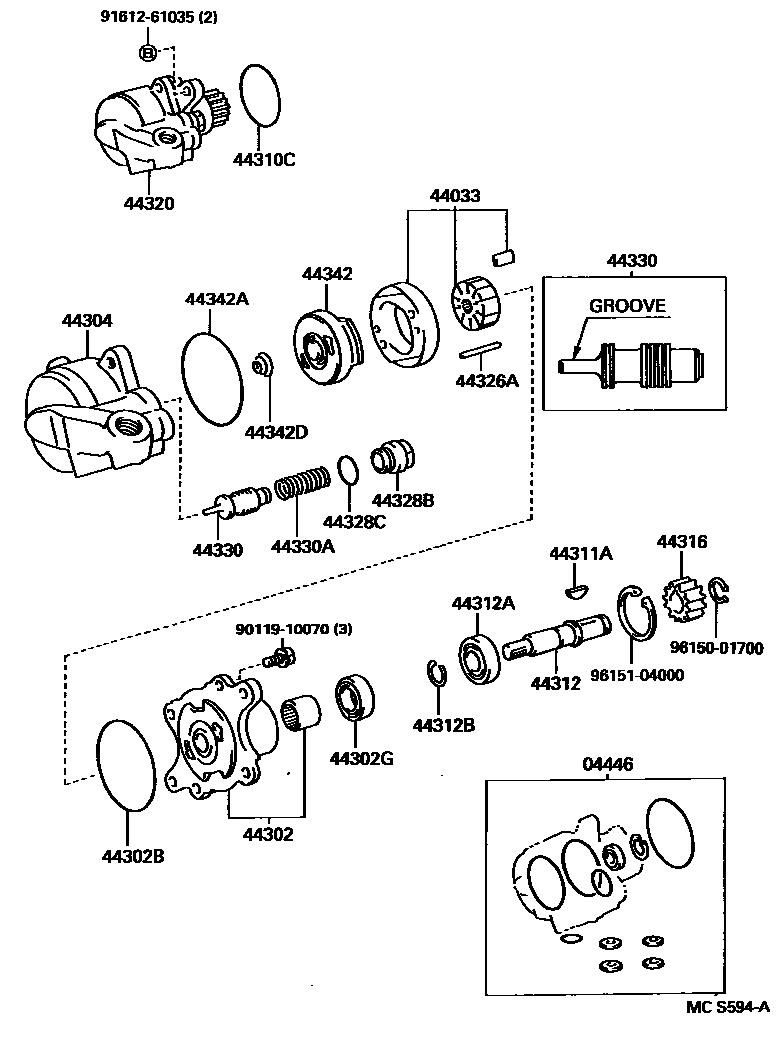

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44033ROTOR SUB-ASSY, W/CAM & VANE
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44310CRING, O(FOR VANE PUMP)
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312ABEARING(FOR VANE PUMP SHAFT)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44320PUMP ASSY, VANE
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44328BEND, VANE PUMP HOUSING
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)
9011910070
main90119-10070
9161261035
main91612-61035
9615001700
main96150-01700
9615104000
main96151-04000
27 parts on this diagram · 4 diagrams in section
