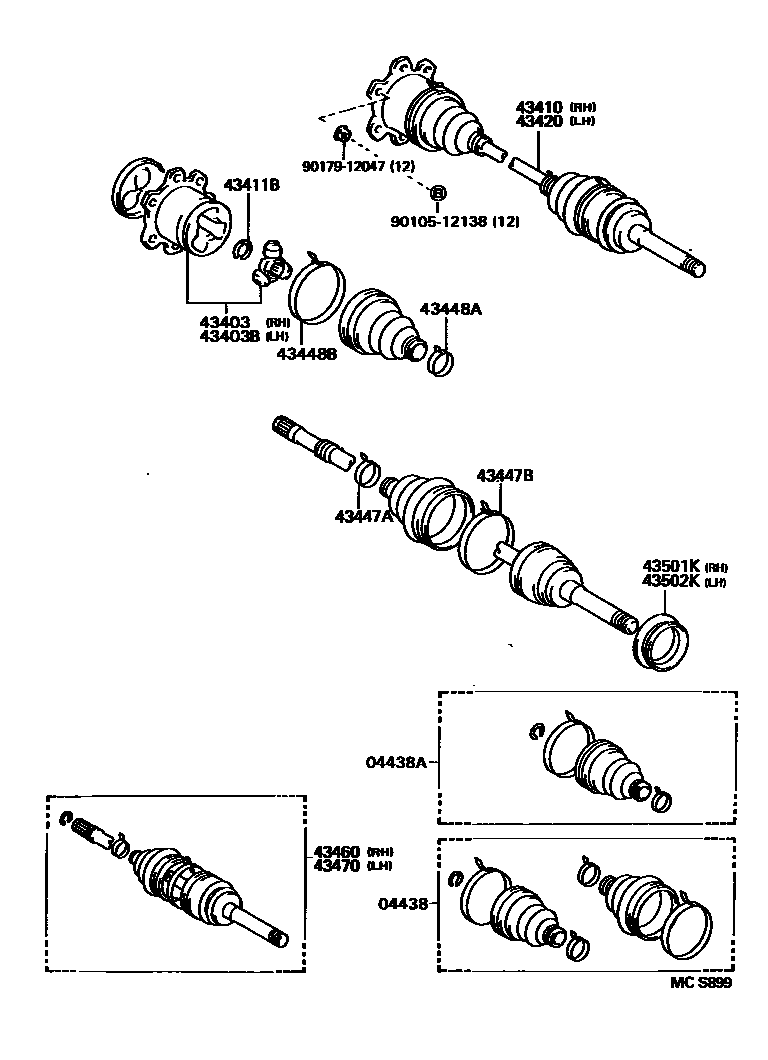

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35021×2iLY151199505-199606

main04438-35022×2iLY15#199606

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35011×2iLY151199505-199606

main04438-35012×2iLY15#199606

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-35010iLY151199505-199508

main43403-35020iLY15#199508

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43403-35010iLY151199505-199508

main43403-35020iLY15#199508

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26012iLY151199505-199606

main43430-26013iLY15#199606-200108

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iLY15#199505

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26012iLY151199505-199606

main43430-26013iLY15#199606-200108

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iLY15#199505

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iLY15#199505

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iLY15#199505

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iLY15#199505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29066iLY151199505-199508

main43460-29067iLY15#199508-200108

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29066iLY151199505-199508

main43460-29067iLY15#199508-200108

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76003iLY15#199505

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76003iLY15#199505

9010512138

main90105-12138

9017912047

main90179-12047

17 parts on this diagram · 1 diagram in section
