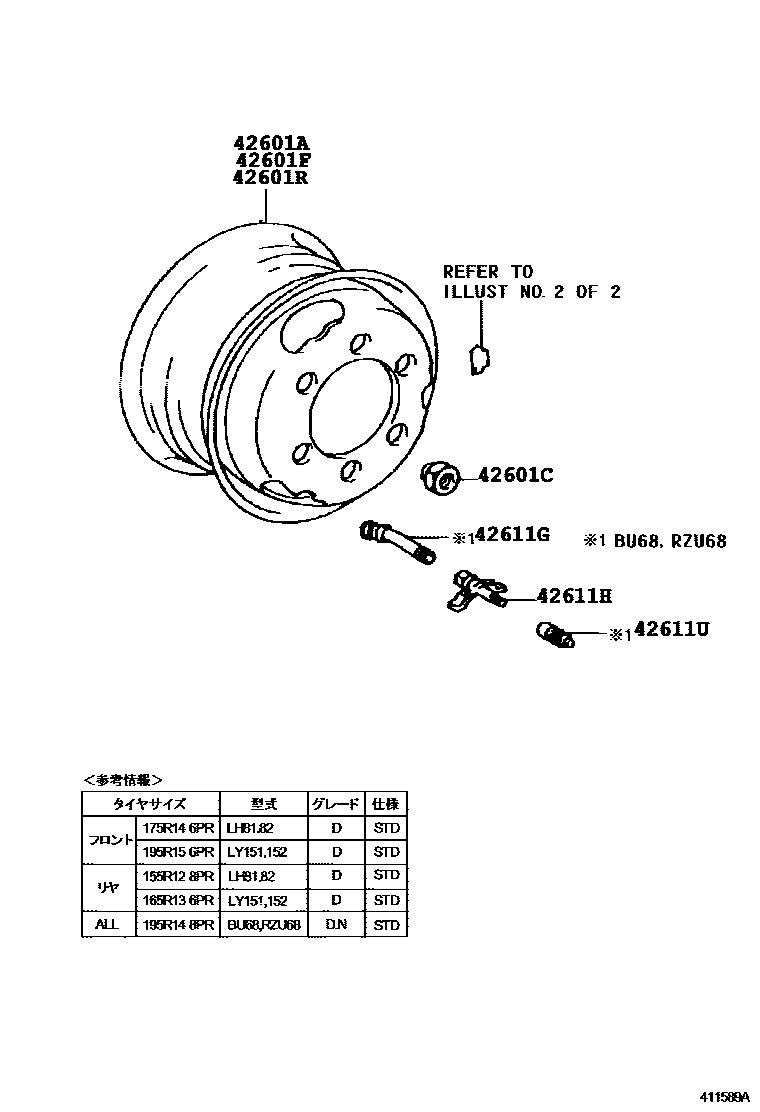

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42601-26132-01iLH81199505-199905

main42601-26171-03iLH81199505-199905

main42601-26281-03iLY152199905-200108

main42601-26310iLY151199505-199905

main42601-36400-03iBU68,RZU68199505-199908

42601CNUT, HUB (FOR AXLE)

main90942-01004×6iLH81,LY151199505-199708

REAR,RH

main90942-01009×6iLH81,LY151199505-199708

REAR,LH

main90942-01010×6iBU68,RZU68199505-199908

REAR,RH

main90942-01011×6iBU68,RZU68199505-199908

REAR,LH

main90942-01012×6iBU68,RZU68199505-199908

FRONT,RH

main90942-01013×6iBU68,RZU68199505-199908

FRONT,LH

main90942-01047×12iLH8#; LY15#199505-200108

FRONT

main90942-01099×6iLH8#,LY15#199708-200108

REAR,RH

main90942-01100×6iLH8#,LY15#199708-200108

REAR,LH

42601FWHEEL, DISC (FOR FRONT)

main42601-26171-03×2iLH8#199505-200108

main42601-26281-03×2iLY15#199505-200108

main42601-36400-03×2iBU68,RZU68199505-199908

42601RWHEEL, DISC (FOR REAR)

main42601-26132-01×4iLH8#199505-200108

main42601-26310×4iLY15#199505-200108

main42601-36400-03×4iBU68,RZU68199505-199908

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×7iBU68,RZU68199610-199908

main90942-05026×7iBU68199606-199610

42611HEXTENSION, VALVE

main90942-05015×2iLH8#199505-200108

main90942-05020×2iBU68,RZU68199505-199908

main90942-05022×2iLY15#199505-200108

42611UCAP, TIRE VALVE

main90942-05013×2iBU68199505-199511

7 parts on this diagram · 2 diagrams in section
