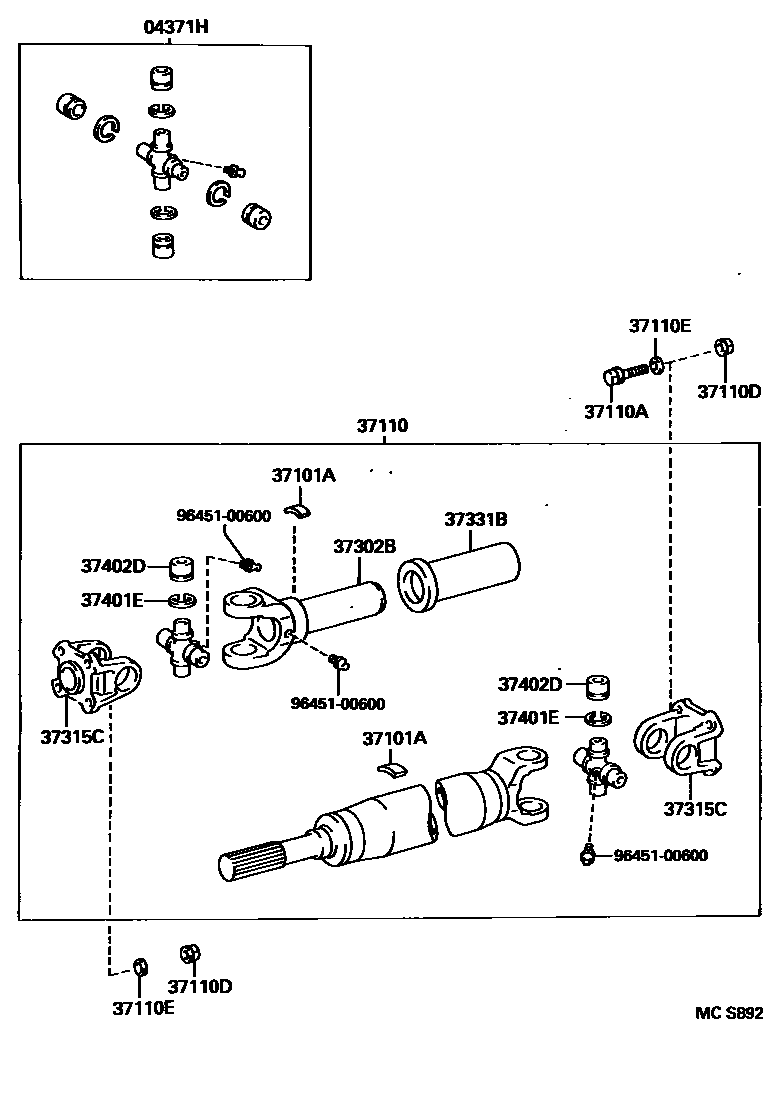

PROPELLER SHAFT & UNIVERSAL JOINT
04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
RED PAINTED
RED PAINTED
WHITE PAINTED(BEARING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37302BYOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE
37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37331BCOVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
37402DBEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER
RED PAINTED
WHITE PAINTED(BEARING)
9645100600
main96451-00600
12 parts on this diagram · 4 diagrams in section
