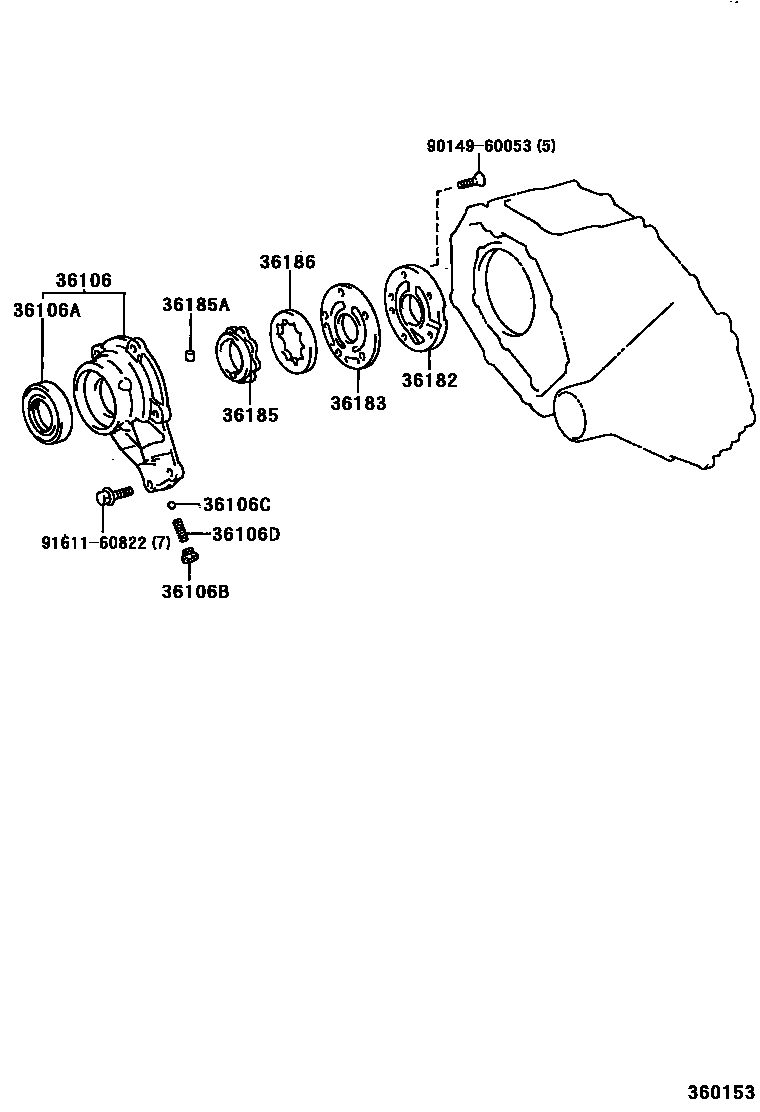

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-25010iLY15#199505

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iLY151199505-199705

main90310-40005iLY15#199705

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iLY15#199505

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iLY15#199505

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iLY15#199505

36182COVER, TRANSFER OIL PUMP

main36182-28010iLY15#199505

36183PLATE, TRANSFER OIL PUMP

main36183-28010iLY15#199505

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-25010iLY15#199505

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025×2iLY15#199505

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-25010iLY15#199505

9014960053

main90149-60053

9161160822

main91611-60822

12 parts on this diagram · 1 diagram in section
