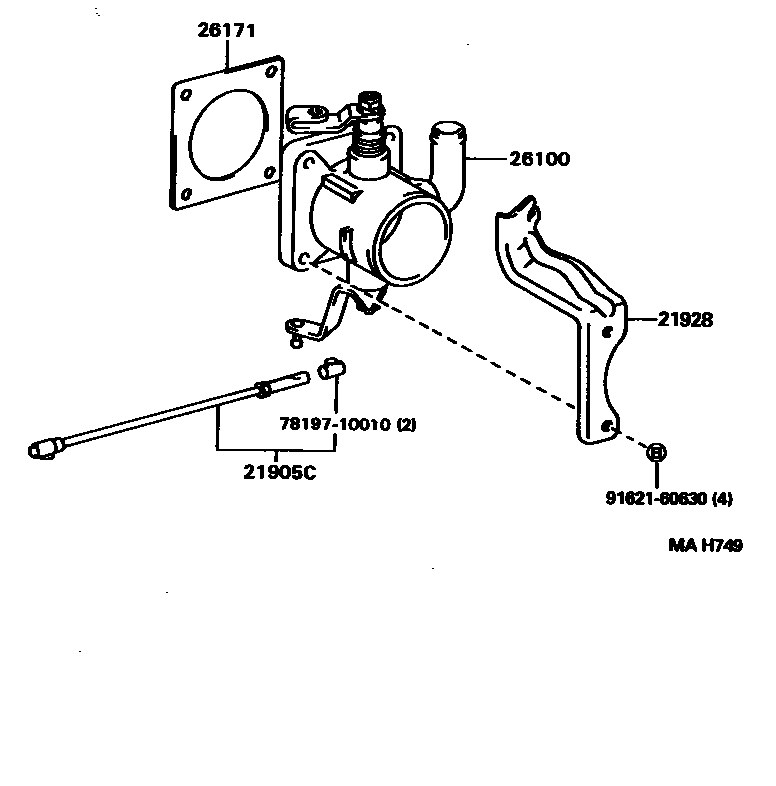

VENTURI

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-58080i3B..BU68199505

21928SUPPORT, THROTTLE WIRE

main21928-58120i3B..BU68199505

26100VENTURI ASSY

main26100-58071i3B..BU68199505

main26100-58180i3B..BU68199505

26171GASKET, VENTURI

main26171-56050i3B..BU68199505

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9162160630

main91621-60630

6 parts on this diagram · 1 diagram in section
