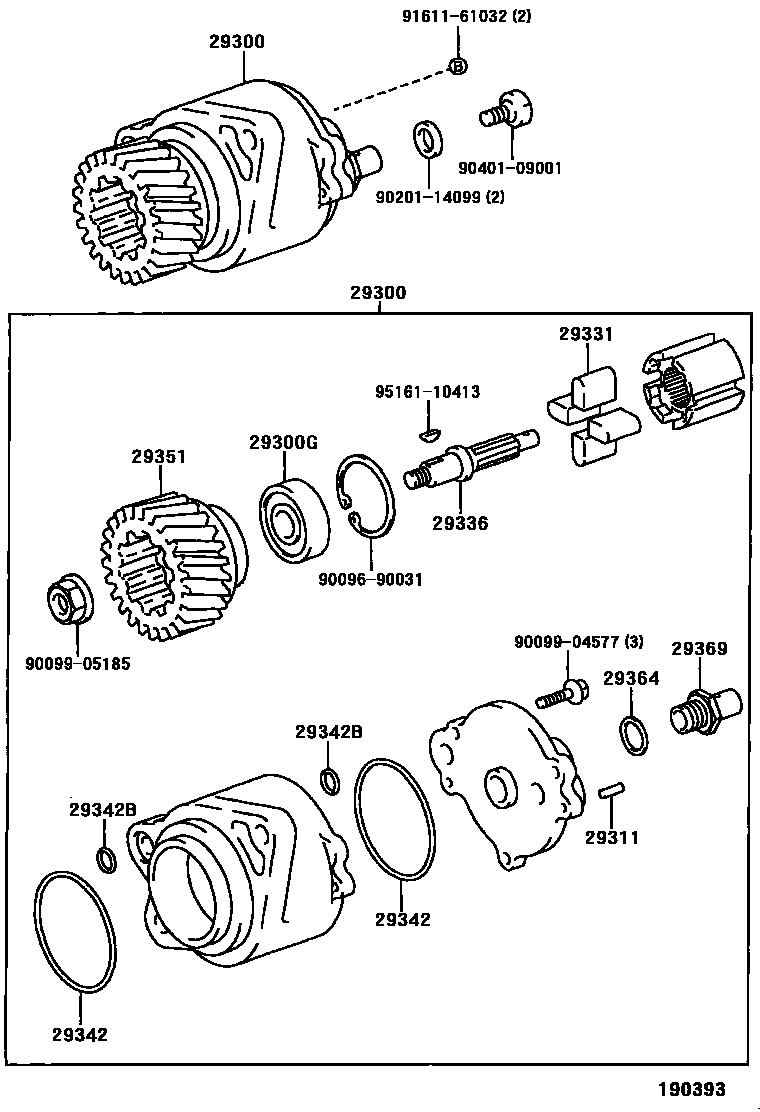

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54061i3L,5L..LH8#199505

main29300-54071i3L,5L..LH8#,LY151..MTM199505-200003

main29300-54210i5L..LH82..MTM; 5L..LY152200003

main29300-58050i3B..BU68199505-199902

main29300-58060i3B..BU68199902-199908

29300GBEARING, BALL

main90099-10185i3B..BU68199505

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i3B..BU68; 3L,5L..LH8#,LY15#199505

29331BLADE, VACUUM PUMP, A

main29331-67020×4i3B..BU68199505

main29331-78010×4i3L,5L..LH8#,LY15#199505

29336SHAFT, VACUUM PUMP

main29336-58050i3B..BU68199505-199902

main29336-58060i3B..BU68199902

29342PACKING, VACUUM PUMP

main29342-58010×2i3B..BU68199505

29342BRING, O

main29342-64010×2i3B..BU68199505

29351GEAR, VACUUM PUMP

main29351-58050i3B..BU68199505

29364WASHER, VACUUM PUMP

main29364-66010i3B,3L,5L..BU68,LH8#,LY15#199505

29369VALVE SUB-ASSY, CHECK

main29369-56070i3L,5L..LH8#,LY15#199505

main29369-64030i3B..BU68199505

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161161032

main91611-61032

9516110413

main95161-10413

17 parts on this diagram · 2 diagrams in section
