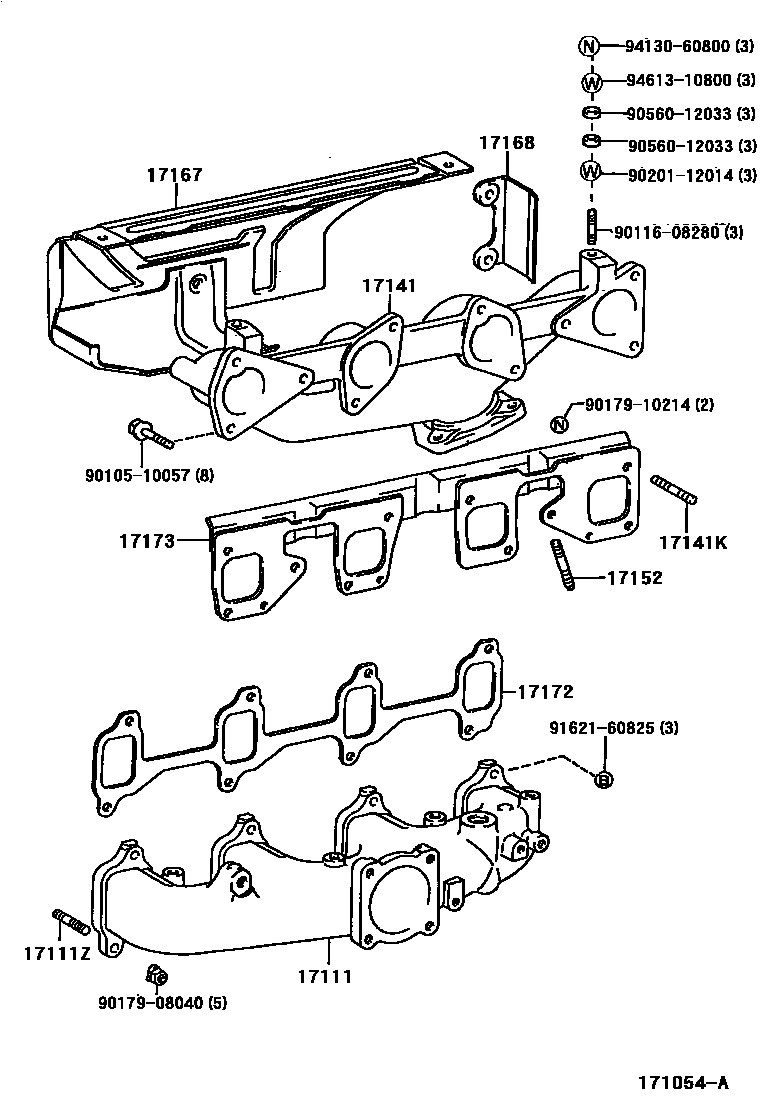

MANIFOLD

0001 1 0002 1 0004 1

17111MANIFOLD, INTAKE

main17101-54110i3L,5L..LH8#,LY15#199505

main17111-58070i3B..BU68199505

main17111-75040i3RZFP..RZU68199610

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08352i3B..BU68199505

17141MANIFOLD, EXHAUST

main17141-54110i3L..LH81,LY151199505-199602

main17141-54111i3L,5L..LH8#,LY15#199602

main17141-56060i3B..BU68199505

main17141-75051i3RZFP..RZU68199610

sub17141-75052

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10063i3B..BU68199505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i3L,5L..LH8#,LY15#199505

main90116-10149i3RZFP..RZU68199610

main90126-10006i3B..BU68199505

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54110i3L,5L..LH8#,LY15#199505

main17167-56040i3B..BU68199505

sub17167-56060

sub91621-B0816

main17167-75041i3RZFP..RZU68199610

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-58060i3B..BU68199505

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-58020i3B..BU68199505

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i3L,5L..LH8#,LY15#199505

main17173-56040i3B..BU68199505

main17173-75020i3RZFP..RZU68199610

9010510057

main90105-10057

9011608280

main90116-08280

9017908040

main90179-08040

9017910214

main90179-10214

9020112014

main90201-12014

9056012033

main90560-12033

9162160825

main91621-60825

9413060800

main94130-60800

9461310800

main94613-10800

18 parts on this diagram · 3 diagrams in section
