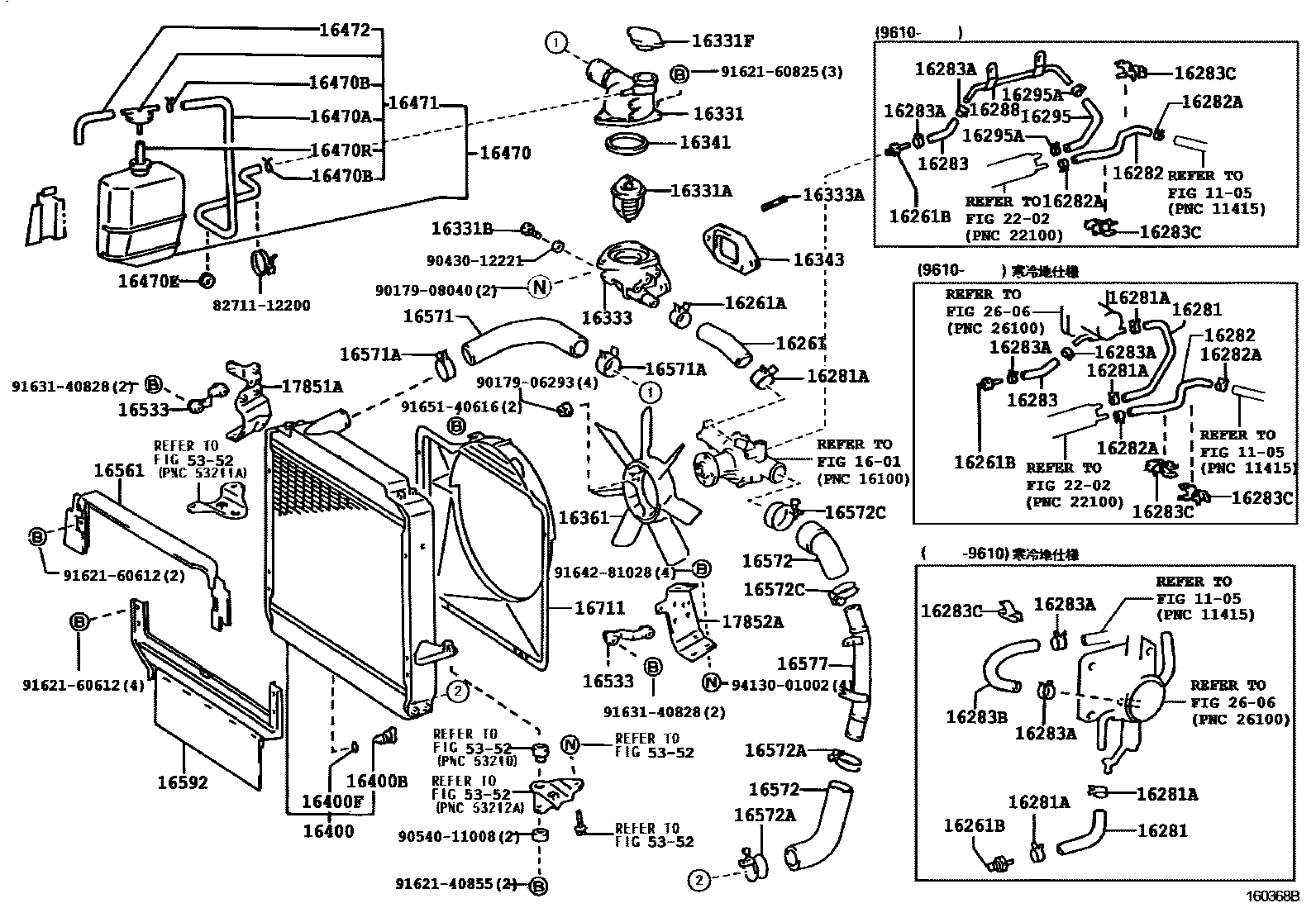

RADIATOR & WATER OUTLET
1105
1601
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283BHOSE, WATER BY-PASS
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
OIL LEVEL GAGE SIDE
INJECTION PIPE SIDE
16288PIPE, WATER BY-PASS, NO.4
16295HOSE, WATER BY-PASS, NO.7
16295ACLIP(FOR WATER BY-PASS HOSE NO.7)
16331OUTLET, WATER
16331BPLUG(FOR WATER OUTLET)
16333HOUSING, WATER OUTLET
16333ABOLT, STUD(FOR WATER OUTLET HOUSING)
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
WATER PUMP SIDE
RADIATOR PIPE SIDE
WATER PUMP SIDE
17851ABRACKET, RADIATOR SUPPORT, NO.1
17852ABRACKET, RADIATOR SUPPORT, NO.2
2202
2606
5352
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9017906293
main90179-06293
9017908040
main90179-08040
9043012221
main90430-12221
9054011008
main90540-11008
9162140855
main91621-40855
9162160612
main91621-60612
9162160825
main91621-60825
9163140828
main91631-40828
9164281028
main91642-81028
9165140616
main91651-40616
9413001002
main94130-01002
62 parts on this diagram · 7 diagrams in section
