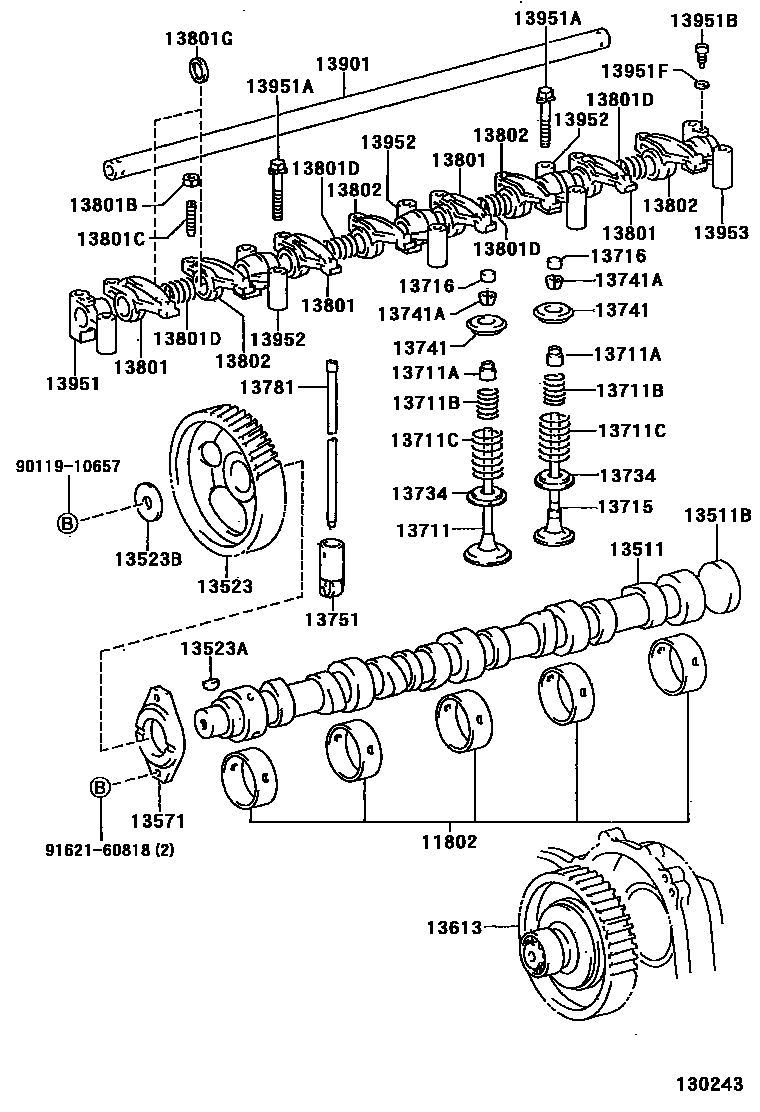

CAMSHAFT & VALVE
13511BPLUG, EXPANSION(FOR CAMSHAFT)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13613GEAR, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711CSPRING, COMPRESSION(FOR OUTER)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13781ROD, VALVE PUSH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13801GWASHER, PLATE(FOR VALVE ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
9011910657
main90119-10657
9162160818
main91621-60818
34 parts on this diagram · 3 diagrams in section
