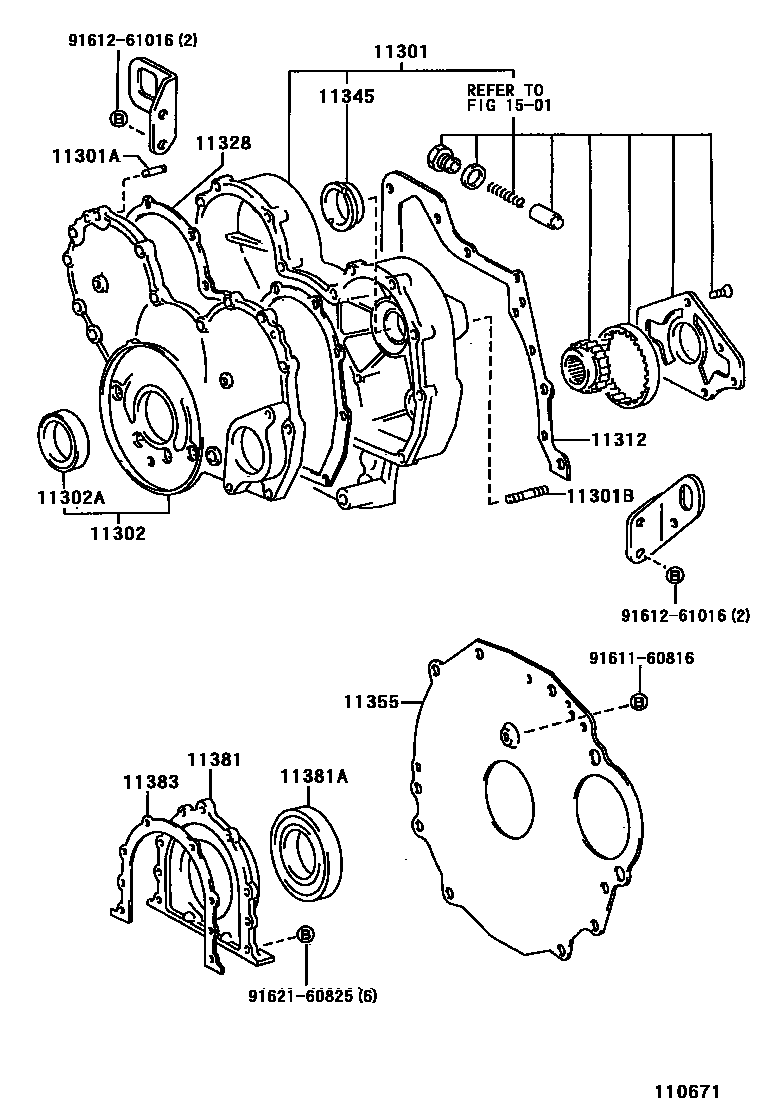

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0005 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58020i3B..BU68199505-199905

main11301-58021i3B..BU68199905

main11301-75020i3RZFP..RZU68199610-199704

main11301-75021i3RZFP..RZU68199704

main11311-54052i3L,5L..LH8#,LY15#199505

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2i3B..BU68199505

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169×2i3B..BU68199505

main92132-60828×2i3L,5L..LH8#,LY15#199505

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58010i3B..BU68199505-199904

main11302-58011i3B..BU68199904

main11321-54020i3L,5L..LH8#,LY15#199505

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50013i3B..BU68199505

11312GASKET, FRONT END PLATE

main11312-54021i3L,5L..LH8#,LY15#199505-200008

main11312-54040i5L..LH82,LY152200008

main11312-56040i3B..BU68199505

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i3L,5L..LH8#,LY15#199505

main11328-56050i3B..BU68199505-199905

main11328-58010i3B..BU68199905

main11328-75020i3RZFP..RZU68199610-199904

main11328-75021i3RZFP..RZU68199904

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i3B..BU68199505

11355PLATE, REAR END

main11355-54030i3L,5L..LH8#..MTM199505

main11355-54080i3L,5L..LY15#199505

main11355-54090i3L..LH81..ATM199505-199610

main11355-54140i3L,5L..LH8#..ATM199610

main11355-56061i3B..BU68199505

main11355-75010i3RZFP..RZU68199610

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i3L,5L..LH8#,LY15#199505-199909

main11381-54030i5L..LH82,LY152199909

main11381-58010i3B..BU68199505-199905

main11381-58011i3B..BU68199905

main11381-75010i3RZFP..RZU68199610

11381ASEAL, ENGINE REAR OIL

main90311-85007i3L..LH81,LY151199505-199703

main90311-85008i3L,5L..LH8#,LY15#199703

main90311-88003i3RZFP..RZU68199610

main90311-95011i3B..BU68199505

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54030i3L,5L..LH8#,LY15#199505

main11383-56040i3B..BU68199505

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160816

main91611-60816

9161261016

main91612-61016

9162160825

main91621-60825

16 parts on this diagram · 4 diagrams in section
