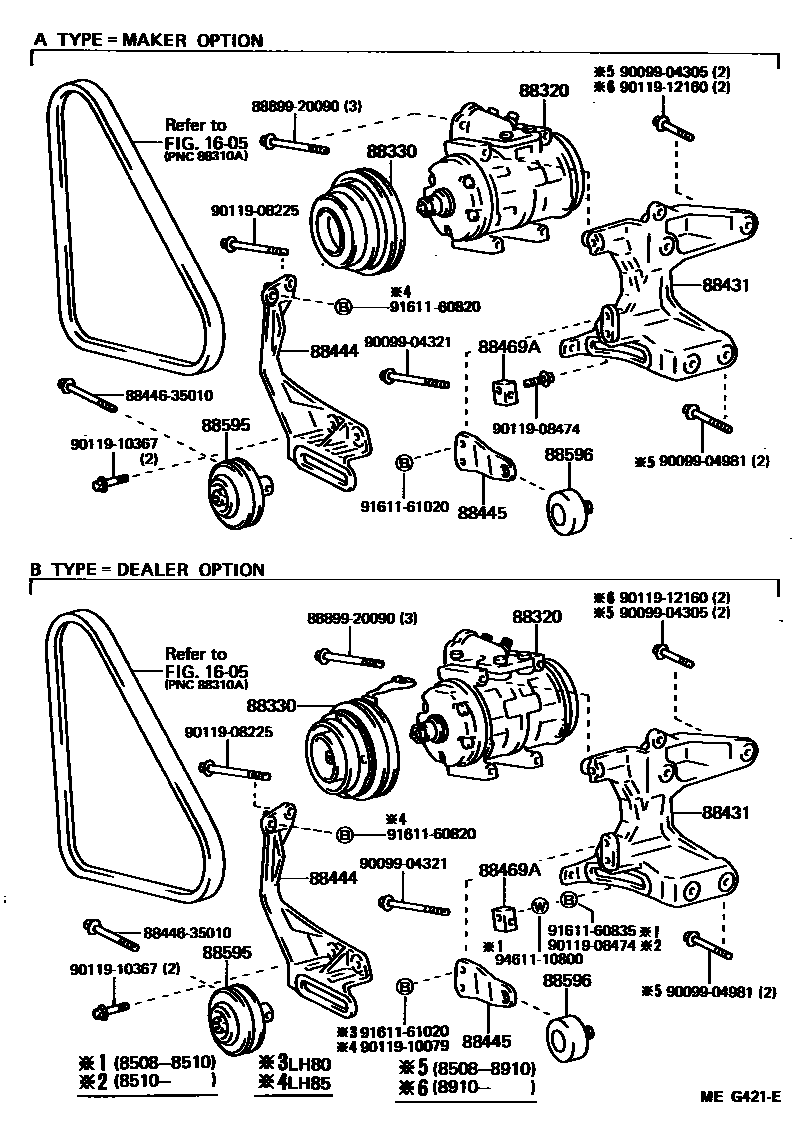

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1

1605V-BELT

→ Go to FIG 16-05

88320COMPRESSOR ASSY, COOLER

main88320-26220iLH80198508-198708

main88320-26281iLH80198910-199302

main88320-26283iLH80199302-199309

main88320-26370iLH85198910-199302

main88320-26371iLH85199302-199309

main88320-26490iLH85199309-199505

main88320-26500iLH80199309-199505

88330CLUTCH ASSY, MAGNET

main88410-22080iLH80198508-198708

main88410-26050iLH85198711-198808

main88410-26060iLH85198910-199302

main88410-26140iLH8#199309-199505

main88410-30430iLH80198708-198808

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26170iLH80198703-198708

B TYPE

main88431-26190iLH85198711-198910

main88431-26200iLH80198804-198808

main88431-26240iLH85198910-199505

main88431-35170iLH80198808-199505

88444BRACKET, IDLE PULLEY

main88444-26100iLH80..5H198508-198703

main88444-26111iLH85198711-198910

main88444-26120iLH80198708-198804

main88444-26170iLH85198910-199505

main88444-35050iLH80198808-199505

88445BRACKET, IDLE PULLEY

main88444-26070iLH85198808-198910

88469ACOLLAR, ADJUSTING

main88469-30280iLH8#198508-199505

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35010iLH8#198508-199505

88596PULLEY ASSY, IDLE, NO.2

main88440-26070iLH8#198508-199505

8844635010BOLT, IDLE PULLEY

main88446-35010

8889920090COVER, EVAPORATOR

main88899-20090

9009904305

main90099-04305

9009904321

main90099-04321

9009904981

main90099-04981

9011908225

main90119-08225

9011908474

main90119-08474

9011910079

main90119-10079

9011910367

main90119-10367

9011912160

main90119-12160

9161160820

main91611-60820

9161160835

main91611-60835

9161161020

main91611-61020

9461110800

main94611-10800

23 parts on this diagram · 2 diagrams in section
