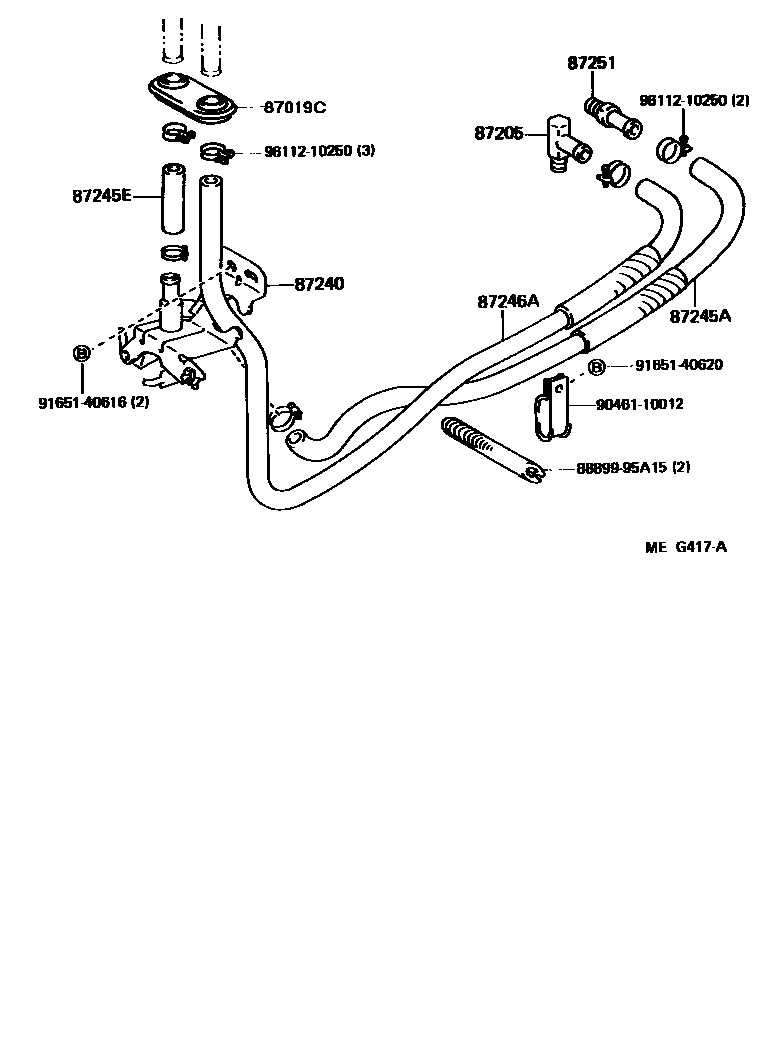

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main96532-13017iLH8#198508-199505

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30230iLH8#198508-199505

87240VALVE ASSY, HEATER WATER

main87240-95407iLH8#198508-199505

87245AHOSE, HEATER WATER, INLET A

main87209-90D00iLH8#198508-198804

87245EHOSE, HEATER WATER, INLET E

main99556-30100iLH8#198508-198804

87246AHOSE, HEATER WATER, OUTLET A

main87209-90D01iLH8#198508-198804

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLH8#198508-199505

8889995A15COVER, EVAPORATOR

main88899-95A15

9046110012

main90461-10012

9165140616

main91651-40616

9165140620

main91651-40620

9611210250

main96112-10250

12 parts on this diagram · 1 diagram in section
