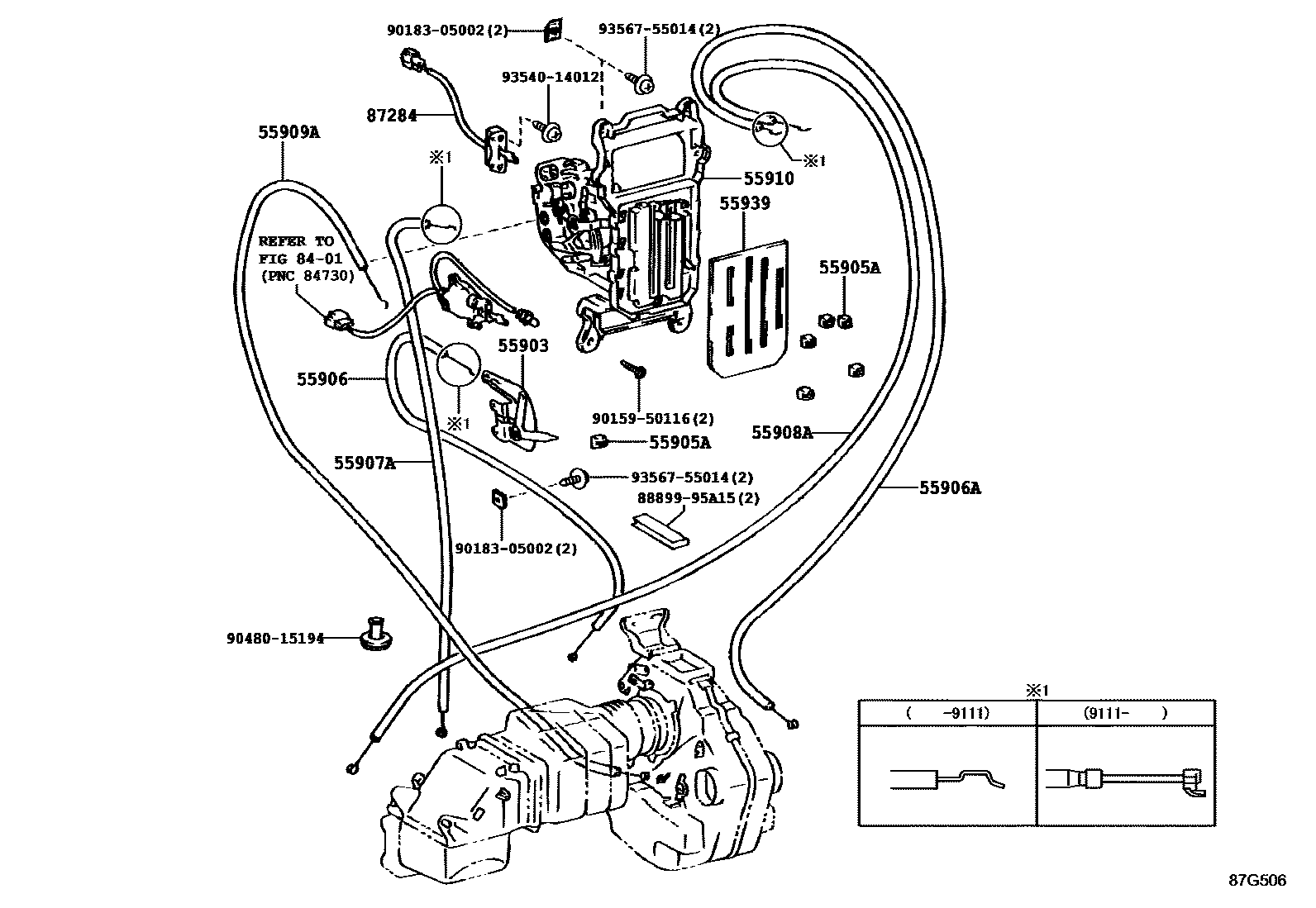

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55903LEVER SUB-ASSY, HEATER CONTROL

main55805-95403iLH8#198508-199505

55905AKNOB, HEATER CONTROL

main55905-12050-01iLH8#198508-198804

HEATER BLOWER SW,BLACK

main55905-12070iLH8#198804-199505

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-26010iLH8#199111-199505

main55905-90D00iLH8#198508-199111

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-26020iLH8#199111-199505

main55906-90D01iLH8#198508-199111

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-26020iLH8#199111-199505

main55907-90D01iLH8#198508-199111

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90D01iLH8#198508-199505

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-90D01iLH8#198508-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iLH8#199111-199505

main55910-95407iLH8#198508-199111

55939ORNAMENT, HEATER CONTROL

main55519-95401iLH80198508-198708

main55519-95405iLH8#198708-199505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iLH8#198508-199505

8889995A15COVER, EVAPORATOR

main88899-95A15

9015950116

main90159-50116

9018305002

main90183-05002

9048015194

main90480-15194

9354014012

main93540-14012

9356755014

main93567-55014

17 parts on this diagram · 2 diagrams in section
