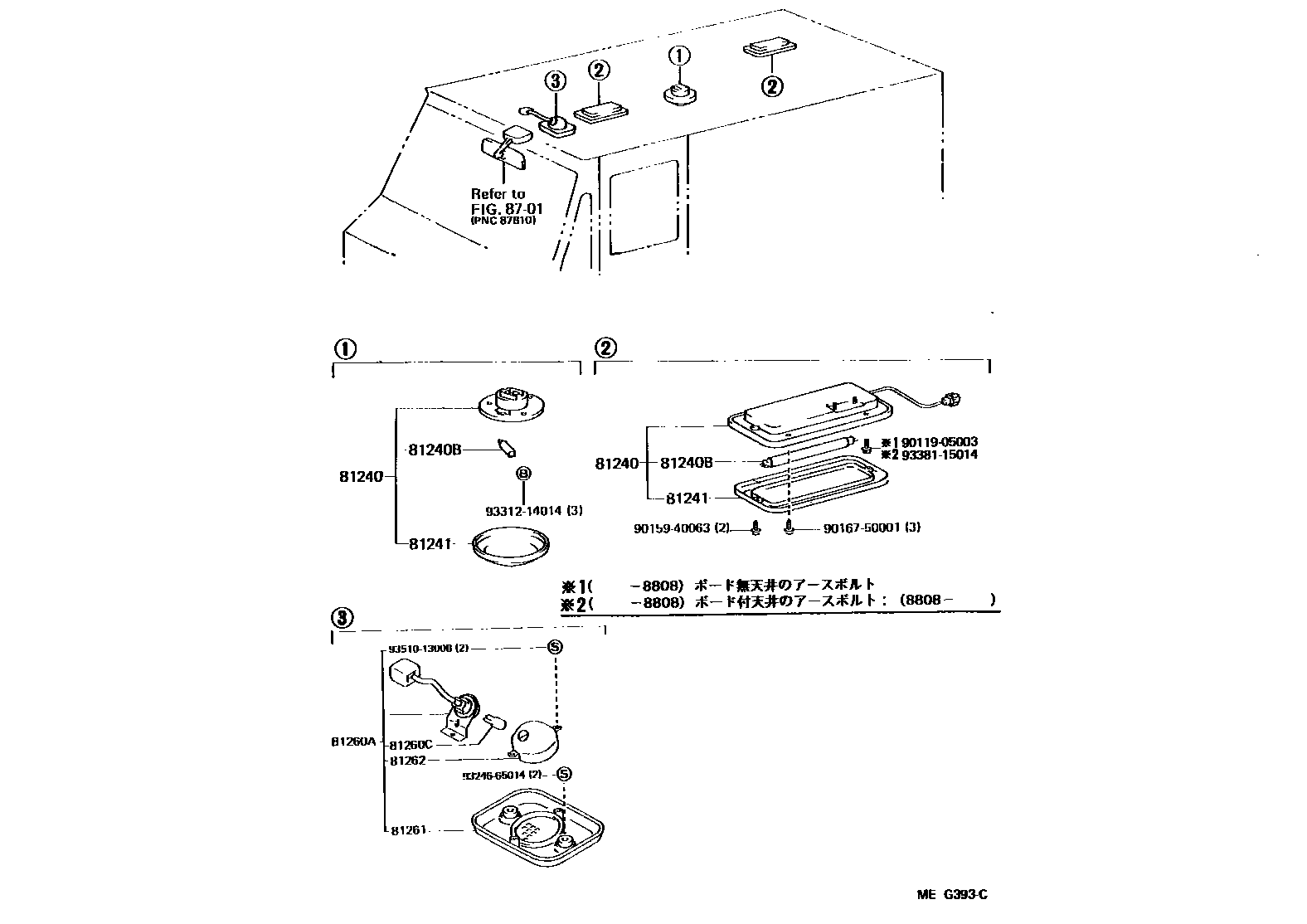

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81201-90B00×2iLH8#198508-198804

W/*FL

main81240-90B02iLH8#..N198808-199505

main81240-95A11iLH8#..D..CBU198508-198801

main81240-95A18iLH8#..D..125..CBU; LH80..1T198804-199505

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH8#..D..CBU198508-198804

main90981-11032×2iLH8#..N; LH80..IV198804-198808

main99132-11100×2iLH8#..N198808-199505

81241LENS, ROOM LAMP, NO.1

main81241-61011iLH8#..D..125..CBU; LH80..1T198804-199505

main81241-90B00×2iLH8#..D..CBU; LH8#..N; LH80..IV198804-199505

81260ALAMP ASSY, MAP

main81260-90D00iLH8#..N198808-198901

81260CBULB(FOR MAP LAMP)

main99132-12050iLH8#..N198808-198901

81261LENS AND COVER, MAP LAMP

main81261-90D00iLH8#..N198808-198901

81262LENS, MAP LAMP

main81262-90D00iLH8#..N198808-198901

8701MIRROR

→ Go to FIG 87-01

9011905003

main90119-05003

9015940063

main90159-40063

9016750001

main90167-50001

9324665014

main93246-65014

9331214014

main93312-14014

9338115014

main93381-15014

9351013008

main93510-13008

15 parts on this diagram · 1 diagram in section
