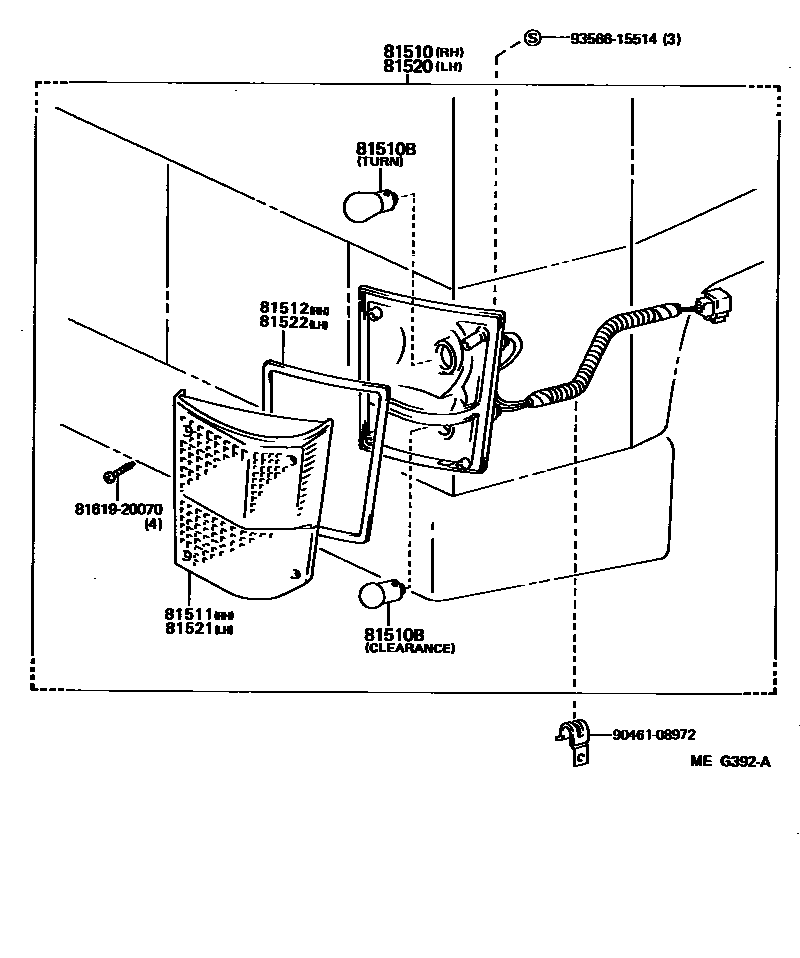

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-90D00iLH80198508-198708

main81510-90D01iLH8#198708-199505

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iLH8#198508-198804

main99132-11210×2iLH8#198708-198804

main99132-11230×2iLH80198508-198708

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-90D00iLH8#198708-199505

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-90B00iLH80198508-198708

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-90D00iLH80198508-198708

main81520-90D01iLH8#198708-199505

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-90D00iLH80198508-198708

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-90B00iLH80198508-198708

8161920070

main81619-20070

9046108972

main90461-08972

9356615514

main93566-15514

10 parts on this diagram · 1 diagram in section
