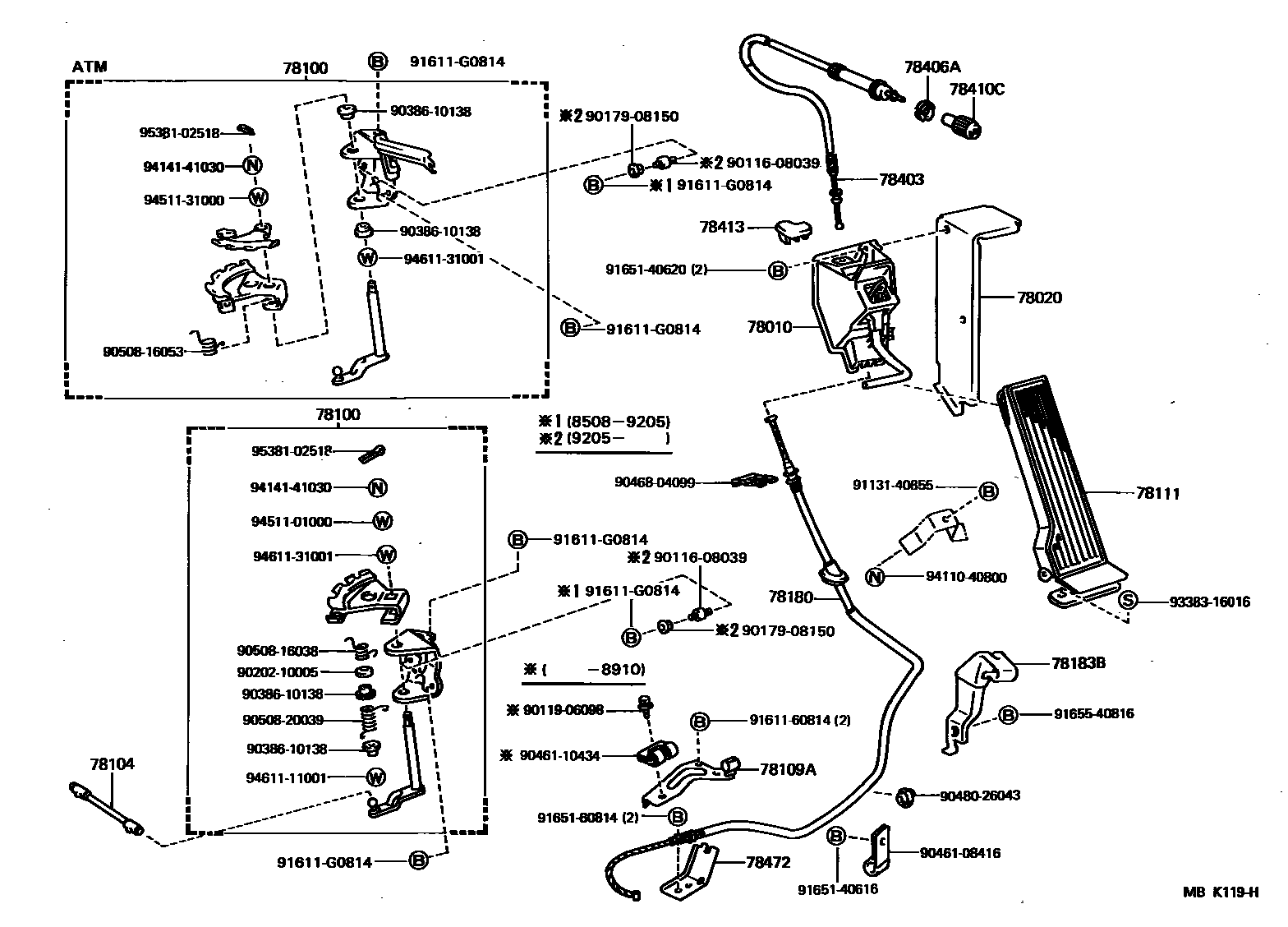

ACCELERATOR LINK

78010LINK, ACCELERATOR

main78202-90D00iLH8#198910-199505

main78202-95010iLH8#198508-198910

78020BRACKET ASSY, ACCELERATOR CONTROL

main78114-90D03iLH8#198508-199505

78100LINK ASSY, ACCELERATOR

main78100-25010iLH80198808-198905

main78100-25011iLH80198905-198910

main78100-95A01iLH80..4HC198708-198808

main78100-95J06iLH85198808-198910

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH80198808-198910

main78104-30120iLH8#198508-198808

78109ABRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP

main78109-95J00iLH85198808-198910

78111PEDAL, ACCELERATOR

main78110-95410iLH8#198508-199505

78180WIRE ASSY, ACCELERATOR

main78150-90D01iLH8#198508-198808

main78150-90D02iLH80198808-198910

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-90D00iLH80198808-198910

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-90D00iLH8#198508-199505

78406ANUT, HOLDER (FOR THROTTLE BUTTON)

main78314-95010iLH8#198508-199505

78410CKNOB, THROTTLE CABLE

main78411-22010iLH8#198508-199505

78413COVER, THROTTLE CONTROL CABLE

main78413-95701iLH8#198910-199505

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-25010iLH8#198910-199505

main78472-26010iLH80198808-198910

9011608039

main90116-08039

9011906098

main90119-06098

9017908150

main90179-08150

9020210005

main90202-10005

9038610138

main90386-10138

9046108416

main90461-08416

9046110434

main90461-10434

9046804099

main90468-04099

9048026043

main90480-26043

9050816038

main90508-16038

9050816053

main90508-16053

9050820039

main90508-20039

9113140855

main91131-40855

9161160814

main91611-60814

91611G0814

main91611-G0814

9165140616

main91651-40616

9165140620

main91651-40620

9165160814

main91651-60814

9165540816

main91655-40816

9338316016

main93383-16016

9411040800

main94110-40800

9414141030

main94141-41030

9451101000

main94511-01000

9451131000

main94511-31000

9461111001

main94611-11001

9461131001

main94611-31001

9538102518

main95381-02518

40 parts on this diagram · 1 diagram in section
