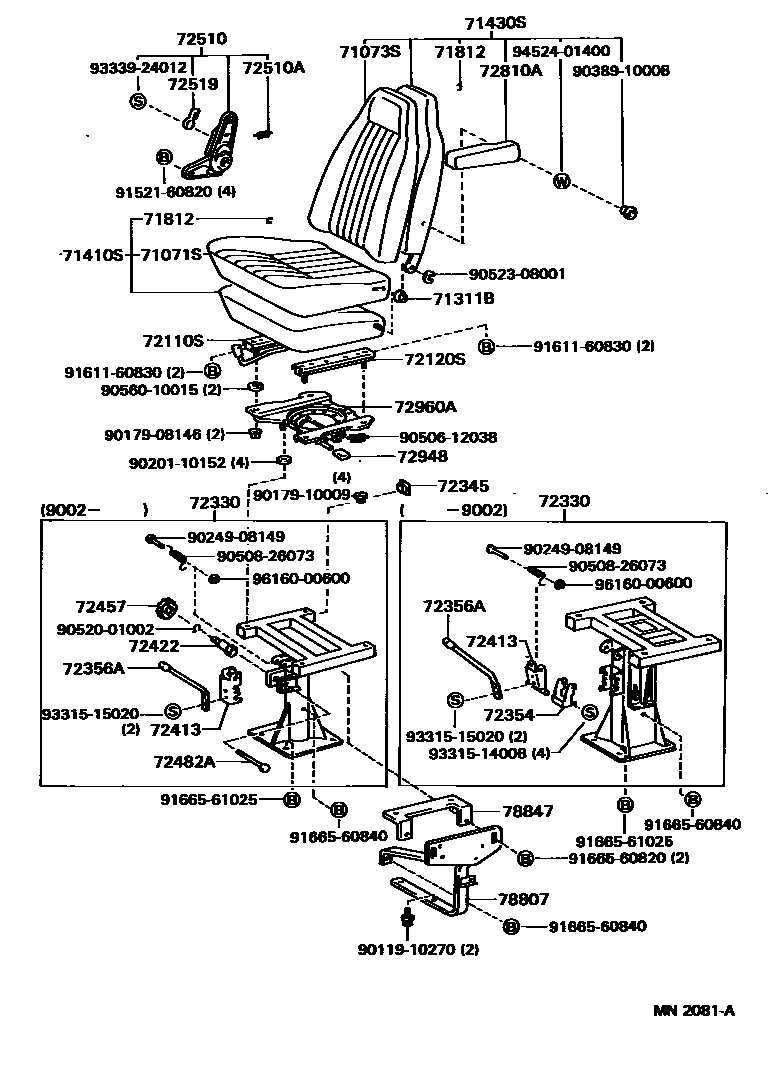

SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-90D01iLH80198605-198708

TYPE B

main71071-90D02iLH80..D198508-198708

W/RETRACTABLE TYPE,TYPE B

main71071-90D03iLH80..N198508-198708

TYPE A

main71071-90D04-06iLH8#198708-198804

DARK BROWN,DARK BROWN,TRIM4#

main71071-90D05-06iLH80..D198708-198804

W/RETRACTABLE,DARK BROWN,DARK BROWN,TRIM4#

main71071-90D06-06iLH8#199008-199505

DARK BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-90D05iLH80..N; LH85;LH80..D198804-199008

main71073-90D07iLH80..D; LH80..N198804-199008

main71073-90D08-06iLH80..D; LH80..N198804-199008

main71073-90D10-06iLH80..D; LH80..N199008-199505

main71073-90D11-06iLH80..N; LH85;LH80..D199008-199505

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12005iLH8#198508-199505

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-90D01iLH80..5H..D198508-198605

TYPE B

main71410-90D02iLH80..D198508-198708

W/RETRACTABLE TYPE,TYPE B

main71410-90D03iLH80..N198508-198708

TYPE A

main71410-90D04-06iLH8#198804-199008

DARK BROWN,TRIM4#

main71410-90D05-06iLH80..D198804-199008

main71410-90D06-06iLH8#199008-199505

DARK BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-90D05iLH80..N; LH85;LH80..D198804-199008

main71430-90D08iLH80198508-198804

W/ARMREST

main71430-90D09-06iLH80198708-198804

W/CENTER SUB SEAT,DARK BROWN,DARK BROWN

main71430-90D11-06iLH80..D; LH80..N199008-199505

main71430-90D12-06iLH80..D; LH80..N199008-199505

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010×3iLH80198508-198804

main90468-18071×33iLH8#198508-198804

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-90D01iLH80198508-199505

main72110-90D02iLH85198711-199505

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-90740iLH80198508-198801

main72120-90D00iLH80198801-199505

main72120-90D01iLH85198711-199505

72330STAND ASSY,SEAT

main72330-90D08iLH80..D198508-199505

main72330-90D10iLH80..D198508-199505

main72330-90D14iLH80..D198508-199008

main72330-90D18iLH80..D198508-199505

main72330-90D22iLH80..N198508-199002

main72330-90D24iLH80..N198508-199002

main72330-90D26iLH80..D198508-199505

main72330-90D27iLH80..D198508-199505

main72330-90D29iLH80..D198508-199008

main72330-90D31iLH80..D198508-199505

main72330-90D32iLH85..D198711-199002

main72330-90D34iLH80..N198508-199002

main72330-90D39iLH80..D198508-199002

main72330-90D40iLH80..D198508-199002

main72330-90D41iLH80..D198508-199002

main72330-90D42iLH80..D..CBU; LH80..IV198508-199002

main72330-90D43iLH85..D198711-199002

main72330-90D44iLH8#..N198508-199002

main72330-90D45iLH80..D199002-199505

main72330-90D46iLH80..D199002-199505

main72330-90D47iLH80..D199002-199008

main72330-90D48iLH80..D..CBU; LH80..IV199002-199008

main72330-90D49iLH8#..N; LH85..D199002-199505

main72330-90D50iLH80..N; LH85..D199002-199505

main72330-90D51iLH80..N; LH85..D199002-199505

main72330-90D52iLH8#..N; LH85..D199002-199505

main72330-90D53iLH80..N199002-199505

main72330-90D54iLH80..N199002-199505

72345CAP, SEAT STAND FRAME

main72345-90D00×2iLH8#198508-199505

72354CATCH, VERTICAL ADJUSTER LOCK, NO.2

main72354-90D00iLH8#198508-199002

72356APLATE, VERTICAL ADJUSTER RELEASE

main72356-90D00iLH8#198508-199002

main72356-90D01iLH8#199002-199505

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-90D00iLH8#198508-199002

main72413-90D01iLH8#199002-199505

72422ROD, VERTICAL ADJUSTER

main72422-90D00iLH8#199002-199505

72457KNOB, VERTICAL SEAT ADJUSTER

main72457-20050-03iLH8#199002-199505

GRAY,TRIM4#

72482AROD, VERTICAL ADJUSTER, NO.2

main72482-90D00iLH80..D199002-199505

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-90D00iLH8#198512-199505

main72530-90500iLH80..5H198508-198512

72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

main90506-12287iLH8#198508-199505

72519KNOB, RECLINING SEATBACK ADJUSTING ARM

main72553-12010iLH8#198508-199505

72810AARMREST ASSY, SEAT, RH

main72830-90D01iLH80198508-199505

72948KNOB, SEAT TURN LOCK

main72948-90D00iLH80..D198508-199008

72960ATABLE ASSY, SEAT TURN

main72960-90D00iLH80..D198508-199008

78807BRACKET SUB-ASSY, CENTER SUB SEAT

main78807-90D00iLH80198508-198708

main78807-90D01-06iLH80198708-198804

BROWN,BROWN,TRIM4#

78847PLATE, CENTER SUB SEAT BRACKET

main78847-90D00iLH80198508-198708

main78847-90D01iLH80198708-199505

9011910270

main90119-10270

9017908146

main90179-08146

9017910009

main90179-10009

9020110152

main90201-10152

9024908149

main90249-08149

9038910008

main90389-10008

9050612038

main90506-12038

9050826073

main90508-26073

9052001002

main90520-01002

9052308001

main90523-08001

9056010015

main90560-10015

9152160820

main91521-60820

9161160830

main91611-60830

9166560820

main91665-60820

9166560840

main91665-60840

9166561025

main91665-61025

9331514008

main93315-14008

9331515020

main93315-15020

9333924012

main93339-24012

9452401400

main94524-01400

9616000600

main96160-00600

45 parts on this diagram · 3 diagrams in section
