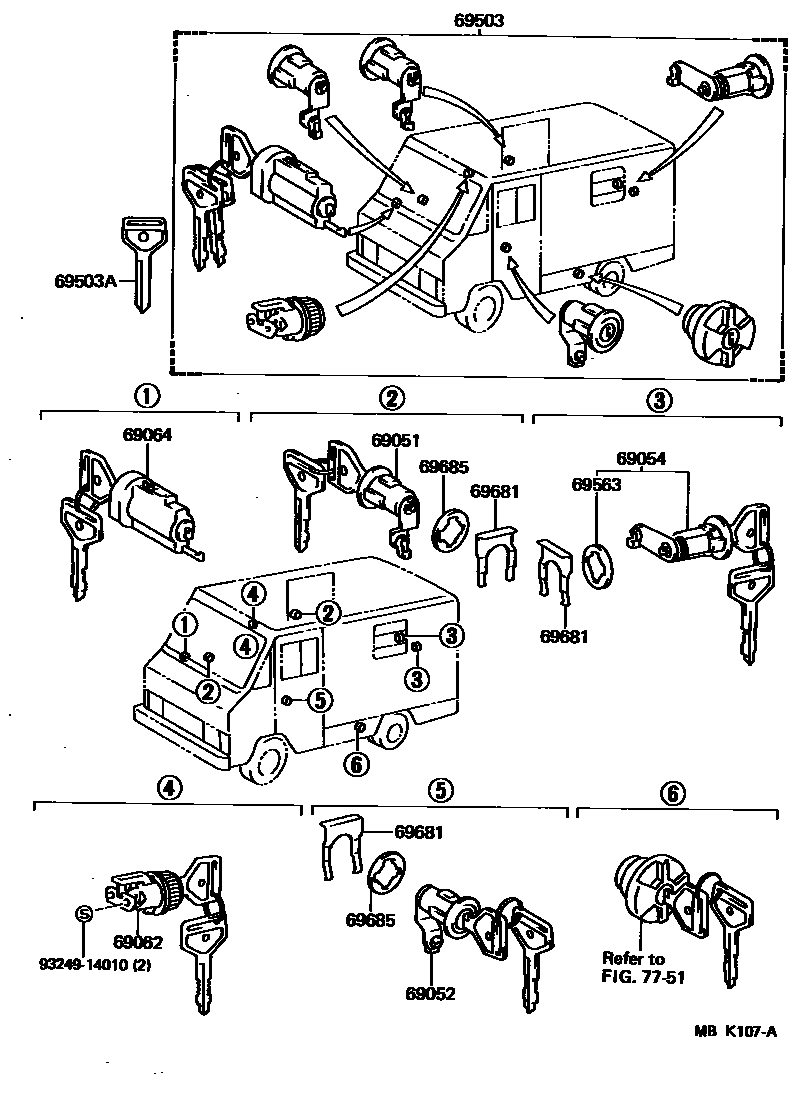

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69053-26010iLH8#199404-199505

main69053-95701iLH8#198508-199404

sub69053-26010

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69054-26040iLH8#199404-199505

main69054-95701iLH8#198508-199404

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69009-90D00iLH8#198804-199505

main69051-19176iLH8#198508-198804

RH

sub69051-39036

main69052-19176iLH8#..125..CBU198508-198804

LH

sub69052-39036

main69055-90D00iLH8#198804-199505

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14020iLH80198508-198708

sub69056-20020

main69056-20020iLH8#198708-198804

sub69056-30030

main69056-30030iLH8#198804-199505

sub69056-90P01

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20010iLH8#198508-199505

sub69057-25010

69503CYLINDER SET, LOCK

main69005-90D02iLH80..IV;LH80..1T198508-199505

main69005-90D03iLH8#..N..3D198804-199505

sub69005-25030

main69005-90D03iLH8#..125..3D198508-198804

W/GLOVE BOX KEY

sub69005-25030

main69005-90D04iLH80..N..4D198804-199505

main69005-90D04iLH80..4D198508-198804

W/GLOVE BOX KEY

main69005-90D05iLH80..1T198508-198804

W/GLOVE BOX KEY

main69005-90D05iLH80..IV;LH80..1T198804-199505

main69005-90D06iLH8#..D..125..3D198508-199505

main69005-90D07iLH80..D..4D198508-199505

69503AKEY, BLANK

main90999-00066iLH8#198508-199505

sub90999-00085

69563PAD, BACK DOOR LOCK CYLINDER

main69513-90A00iLH8#198508-199505

sub69513-38010

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iLH8#198508-199505

69685PAD, LOCK CYLINDER

main69513-12020iLH8#198508-199505

7751

9324914010

main93249-14010

12 parts on this diagram · 1 diagram in section
