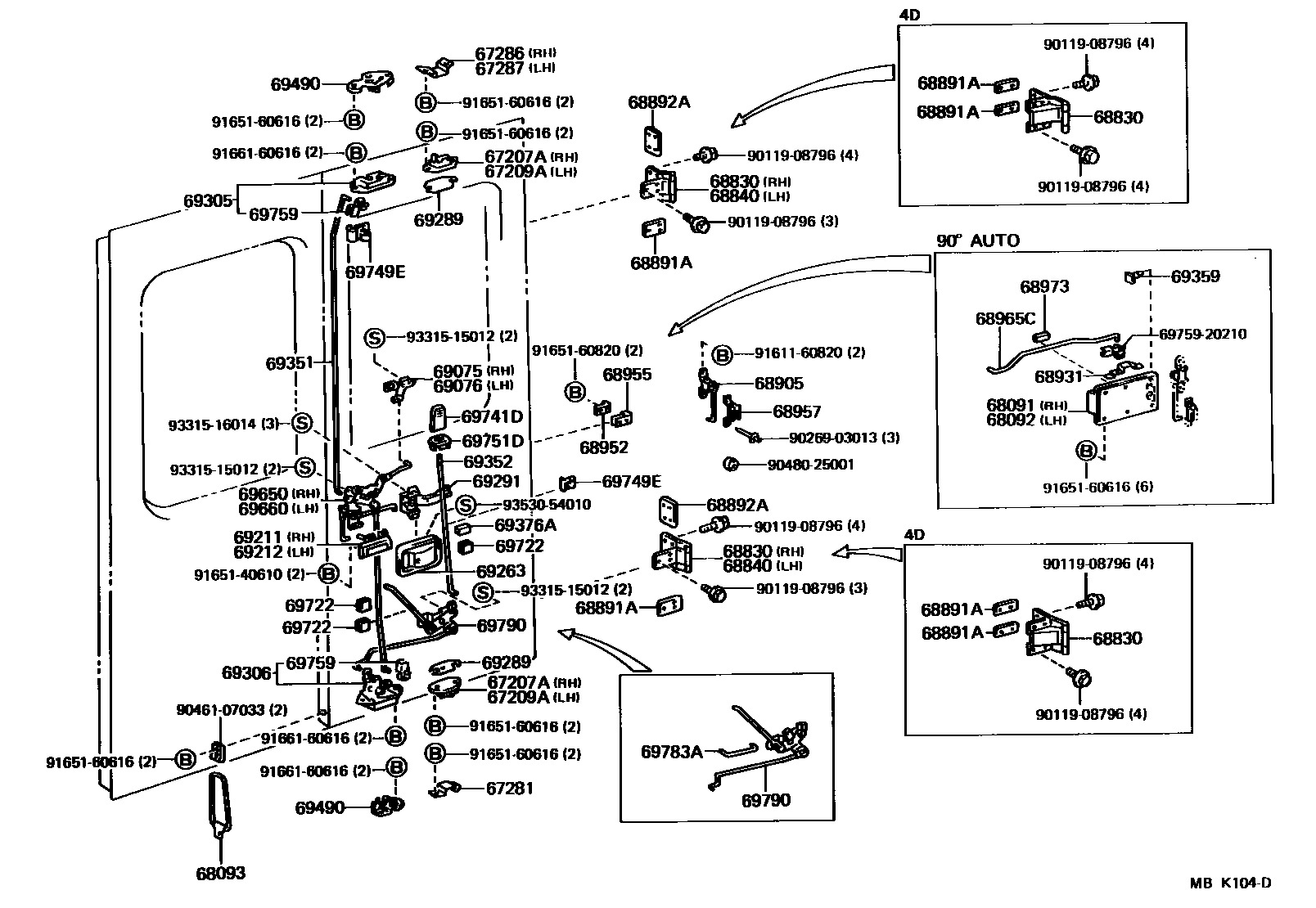

BACK DOOR LOCK & HINGE

0001 1 0002 1

67207ASTOPPER SUB-ASSY, BACK DOOR, RH

main67207-90D00iLH8#..CBU198804-199505

main67209-90A01iLH8#198508-198804

UPR

67209ASTOPPER SUB-ASSY, BACK DOOR, LH

main67207-90D00iLH8#198508-198804

UPR

main67209-90A01iLH8#198508-198804

LWR

67281PLATE, BACK DOOR STOPPER

main67281-90D00×2iLH8#198508-198804

67286ANTI-RATTLE, BACK DOOR, RH

main67285-90D00iLH8#..CBU198804-199505

67287ANTI-RATTLE, BACK DOOR, LH

main67285-90D00iLH8#..CBU198804-199505

68091RAIL SUB-ASSY, BACK DOOR STAY, RH

main68091-26010iLH8#..3D199106-199505

main68091-26020iLH80..4D199106-199505

main68091-90D02iLH80..3D198508-198604

main68091-90D03iLH80..4D198508-198604

main68091-90D04iLH8#..3D198604-198804

main68091-90D05iLH80..4D198804-199106

68092RAIL SUB-ASSY, BACK DOOR STAY, LH

main68092-26010iLH8#..CBU199106-199505

main68092-90D01iLH80..5H198508-198604

main68092-90D02iLH8#..CBU198804-199106

68093STAY SUB-ASSY, BACK DOOR, NO.2

main68093-90D00×2iLH8#198508-198804

68830HINGE ASSY, BACK DOOR, RH

main68801-26010iLH8#..3D199105-199505

main68801-26020iLH80..4D199105-199505

main68801-90D02iLH8#..3D198508-198804

UPR

main68801-90D03iLH80..4D198804-199105

main68803-26010iLH8#..3D199105-199505

main68803-26020iLH80..4D199105-199505

main68803-90D01iLH8#..3D198508-198804

LWR

main68803-90D02iLH80..4D198508-198804

LWR

68840HINGE ASSY, BACK DOOR, LH

main68802-26010iLH8#..CBU199105-199505

main68802-90D01iLH8#198508-198804

UPR

main68804-26010iLH8#..CBU199105-199505

main68804-90D00iLH8#..CBU198804-199105

68891APACKING, BACK DOOR HINGE MALE

main68891-90D02×2iLH8#..3D; LH80..4D198804-199105

main68891-90D03×4iLH80..4D198804-199105

68892APACKING, BACK DOOR HINGE FEMALE

main68892-90D01×4iLH8#198508-198804

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68905-26010iLH8#..D..3D199106-199505

main68905-26020iLH80..D..4D199106-199505

main68905-26030iLH8#..D..3D; LH8#..N..3D199106-199505

main68905-26040iLH80..D..4D; LH80..N..4D199106-199505

main68905-90D02iLH80..3D198508-198604

RH

main68905-90D03iLH80..5H..4D198508-198604

RH

main68905-90D04iLH8#..3D198804-199106

main68905-90D05iLH80..4D198604-198804

RH

main68906-26010iLH8#..D..CBU199106-199505

main68906-26020iLH8#..D..CBU; LH8#..N199106-199505

main68906-90D01iLH80..5H198508-198604

LH

main68906-90D02iLH8#..CBU198804-199106

68931STAY, BACK DOOR, NO.1

main68931-90D03×2iLH8#..CBU198804-199104

68952RETAINER, BACK DOOR STAY

main68952-90D00×2iLH8#..D198508-198804

68955BRACKET, BACK DOOR STAY

main68955-90D00×2iLH80..5H..D198508-198604

main68955-90D04×2iLH8#..D..CBU198901-199505

BODY SIDE

main68955-90D05×2iLH8#..D..CBU; LH8#..N198901-199505

STAY SIDE

68957BRACKET, BACK DOOR STAY

main68957-90D03×2iLH80..5H198508-198606

68965CSHAFT, BACK DOOR STAY

main68907-26010iLH8#..CBU199104-199505

main68908-26010iLH8#..CBU199104-199505

main68965-90D00iLH8#..CBU198804-199104

main68965-90D01iLH8#..CBU198804-199104

68973CUSHION, BACK DOOR STAY

main68973-90D01×2iLH8#..CBU198804-199505

69075LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.2

main69075-90D01iLH8#198508-198804

69076LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.3

main69076-90D01iLH8#198508-198804

69211HANDLE, BACK DOOR OUTSIDE, RH

main69090-26010iLH8#..CBU199111-199505

main69090-90D01iLH80..5H198508-198601

main69090-90D02iLH8#198601-198804

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-26010iLH8#..125..CBU199111-199505

main69190-90D00iLH80..5H..125198508-198601

main69190-90D01iLH8#..125198601-198804

69263BEZEL, BACK DOOR INSIDE HANDLE

main69277-16040×2iLH8#..CBU198808-199008

main69277-16040-01×2iLH8#198508-198804

BLACK,BLACK

69289SHIM, BACK DOOR STOPPER

main69289-90A00iLH8#..CBU198804-199505

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-20020×2iLH80..5H198508-198606

main69205-90D00×2iLH8#198606-198804

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69350-90D00×2iLH80..5H198508-198601

main69350-90D01×2iLH8#198601-198804

69306LOCK SUB-ASSY, BACK DOOR, LOWER

main69380-90D00×2iLH80198508-198708

main69380-90D01×2iLH8#198708-198804

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69357-90D03iLH80..5H198508-198601

RH

main69357-90D04iLH80..5H198601-198605

RH

main69357-90D05iLH8#198605-198804

RH

main69378-90D02iLH80..5H198508-198601

LH

main69378-90D03iLH80..5H198601-198605

LH

main69378-90D04iLH8#198605-198804

LH

69352ROD, BACK DOOR LOCK CONTROL, LOWER

main69395-90D01iLH80..5H198508-198601

RH

main69395-90D02iLH8#..125..CBU; LH80..1T198804-199505

main69396-90D01iLH80..5H..125198508-198601

LH

main69396-90D02iLH8#..125198601-198804

LH

69359CUSHION, BACK DOOR LOCK

main90541-03004×2iLH80198508-198804

69376ASILENCER, BACK DOOR LOCK LINK

main67811-90D00iLH8#..125..CBU; LH80..1T199112-199505

60X30

main69759-30021×4iLH8#..125..CBU; LH80..1T198804-199112

69490STRIKER ASSY, BACK DOOR LOCK

main69430-90D00×2iLH8#..CBU198804-199505

main69430-95701×2iLH8#..CBU198804-199505

69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH

main69690-26010iLH8#..CBU199104-199505

main69690-90D04iLH80..5H198508-198601

main69690-90D07iLH80..5H198601-198605

main69690-90D08iLH8#198605-198804

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69670-26010iLH8#..125..CBU199104-199505

main69670-26020iLH80..1T199104-199505

main69670-90D06iLH80..5H..125198508-198601

main69670-90D07iLH80..1T198508-198601

main69670-90D10iLH80..5H..125198601-198605

main69670-90D11iLH80..1T198601-198605

main69670-90D12iLH8#..125198605-198804

main69670-90D13iLH80..1T198605-199104

69722PAD, BACK DOOR LOCK CONTROL

main69722-90A00×4iLH8#198601-198804

69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)

main69741-20020-01×2iLH8#198508-198803

BLACK,BLACK

main69741-90K00-01iLH8#..125..CBU; LH80..1T198804-199505

BLACK,TRIM4#

69749ECLAMP, BACK DOOR LOCK LINK

main69749-12010×4iLH8#..125..CBU; LH80..1T198804-199505

main69749-20020×2iLH8#..CBU198804-199505

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-12020-01iLH8#..125..CBU; LH80..1T198810-199505

BLACK,TRIM4#

main69751-20031-01×2iLH8#..125..CBU; LH80..1T198804-198810

BLACK,TRIM4#

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20210×2iLH8#..CBU198508-199505

LIGHT BLUE

main69759-24010×4iLH8#..CBU198508-199505

NATURAL

69783AROD, BACK DOOR LOCK CONTROL, NO.4

main69783-90D00×2iLH80..5H..N198508-198511

W/*EL

69790CONTROL ASSY, BACK DOOR LOCK

main69790-90D03iLH8#..125..CBU; LH80..1T198804-199505

main69790-90D04iLH8#..N198508-198804

RH,W/*EL

main69860-26010iLH8#..N199101-199505

main69860-90D01iLH8#..125..CBU198804-199505

main69860-90D02iLH8#..N198804-199101

6975920210SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20210

9011908796

main90119-08796

9026903013

main90269-03013

9046107033

main90461-07033

9048025001

main90480-25001

9161160820

main91611-60820

9165140610

main91651-40610

9165160616

main91651-60616

9165160820

main91651-60820

9166160616

main91661-60616

9331515012

main93315-15012

9331516014

main93315-16014

9353054010

main93530-54010

55 parts on this diagram · 2 diagrams in section
