BACK DOOR PANEL & GLASS

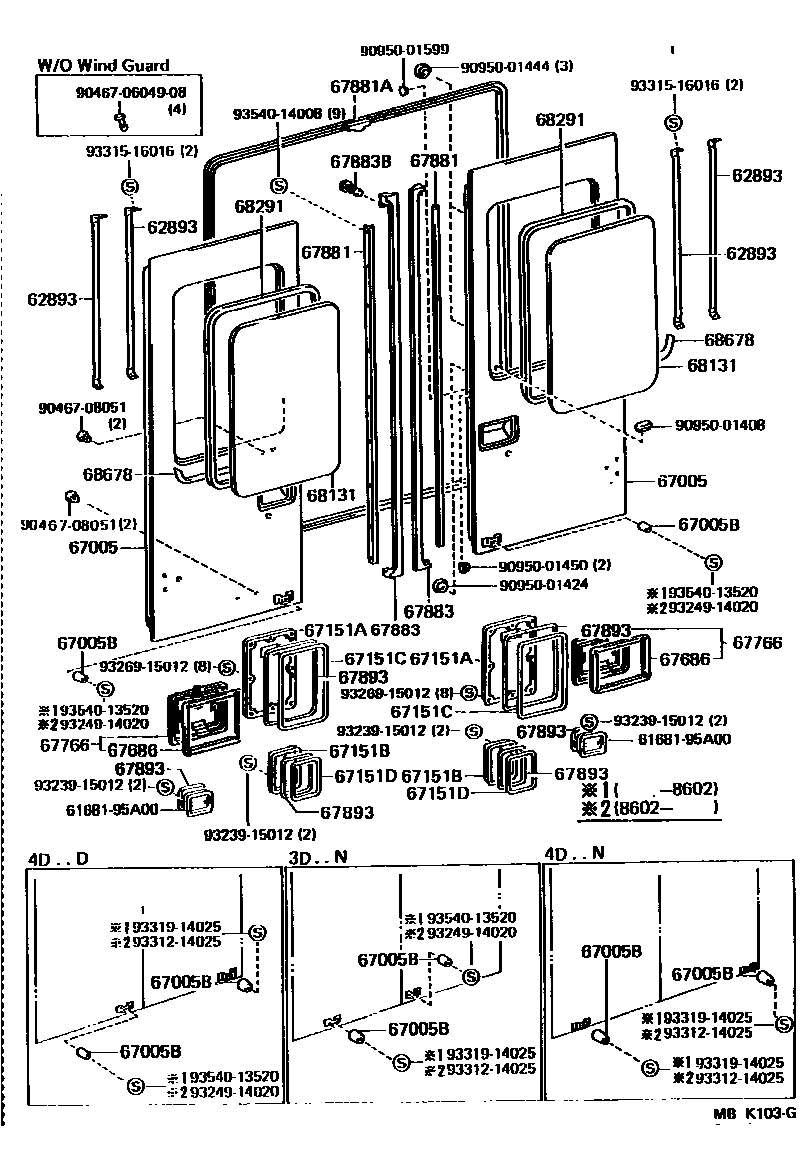

Parts diagram
62893TUBE, BACK DOOR WINDOW GUARD
main62899-90D02×4i198804-198808
main62899-90D03×4i198808-199505
67005PANEL SUB-ASSY, BACK DOOR
main67005-26080i199104-199505
main67005-26090i199104-199505
main67005-26100i199104-199505
main67005-26110i199104-199505
main67005-26120i199104-199505
main67005-26130i199104-199505
main67005-90D57i198508-198602
RH
main67005-90D58i198508-198602
RH
main67005-90D59i198508-198602
main67005-90D60i198508-198602
main67005-90D61i198508-198602
main67005-90D62i198508-198602
RH,W/*RW
main67005-90D63i198508-198702
RH,W/*RW
main67005-90D64i198508-198602
RH,W/*EL
main67005-90D65i198508-198602
RH,W/*EL,*RW
main67005-90D66i198508-198602
RH,W/*EL
main67005-90D67i198508-198602
RH,W/*EL,*RW
main67005-90D68i198508-198602
RH,W/*RW
main67005-90D69i198804-198910
RH
main67005-90D70i198602-198804
RH
main67005-90D71i198602-198804
main67005-90D72i198602-198804
main67005-90D73i198602-198804
main67005-90D74i198804-198910
main67005-90D75i198602-198804
main67005-90D76i198804-198910
main67005-90D77i198602-198708
RH,W/*EL,*RW
main67005-90D78i198804-198910
main67005-90D79i198602-198708
RH,W/*EL,*RW
main67005-90D80i198602-198804
RH,W/*RW
main67005-90D81i198910-199008
RH
main67005-90D82i198910-199008
RH
main67005-90D83i198910-199008
main67005-90D84i198910-199008
main67005-90D85i198910-199008
main67005-90D86i198910-199008
main67005-90D87i198910-199008
main67005-90D88i198910-199008
main67005-90D89i198910-199008
main67005-90D90i198910-199008
main67005-90D91i199008-199505
RH
main67005-90D92i199008-199505
RH
main67005-90D93i199008-199104
main67005-90D94i199008-199104
main67005-90D95i199008-199104
main67005-90D96i199008-199505
main67005-90D97i199008-199104
main67005-90D98i199008-199104
main67005-90D99i199008-199104
main67005-90N00i199008-199505
main67006-26010i199104-199505
main67006-26020i199104-199505
main67006-26030i199104-199505
main67006-26040i199104-199505
main67006-26050i199104-199505
main67006-26060i199104-199505
main67006-26070i199104-199505
main67006-26080i199104-199505
main67006-90D41i198508-198602
LH
main67006-90D42i198508-198602
LH
main67006-90D43i198508-198602
main67006-90D44i198508-198602
LH,W/WINDOW
main67006-90D46i198508-198602
LH,W/WINDOW,*RUM
main67006-90D47i198508-198602
main67006-90D49i198508-198602
main67006-90D50i198508-198602
LH,W/WINDOW
main67006-90D51i198508-198602
main67006-90D52i198508-198602
main67006-90D54i198508-198602
LH,W/WINDOW,*RUM
main67006-90D57i198508-198602
LH,W/HAND TRUCK
main67006-90D58i198508-198602
LH,W/*EL,HAND TRUCK
main67006-90D62i198508-198602
main67006-90D63i198508-198601
LH
main67006-90D64i198508-198601
LH,W/*EL
main67006-90D65i198602-198804
LH
main67006-90D66i198602-198804
LH
main67006-90D67i198804-198910
main67006-90D68i198804-198910
main67006-90D69i198804-198910
main67006-90D70i198804-198910
main67006-90D71i198804-198910
main67006-90D72i198602-198804
LH,W/WINDOW
main67006-90D73i198804-198910
main67006-90D74i198602-198804
main67006-90D75i198804-198910
main67006-90D76i198602-198708
LH
main67006-90D77i198602-198708
LH,W/*EL
main67006-90D78i198804-198910
main67006-90D81i198708-198804
LH
main67006-90D82i198708-198804
LH,W/*EL
main67006-90D83i198808-198910
LH
main67006-90D84i198808-198910
main67006-90D85i198910-199008
LH
main67006-90D86i198910-199008
LH
main67006-90D87i198910-199008
main67006-90D88i198910-199008
main67006-90D89i198910-199008
main67006-90D90i198910-199008
main67006-90D91i198910-199008
main67006-90D92i198910-199008
main67006-90D93i198910-199008
main67006-90D94i198910-199008
main67006-90D95i198910-199008
main67006-90D96i198910-199008
LH
main67006-90D97i198910-199008
main67006-90D98i198910-199008
main67006-90D99i199008-199104
main67006-90N00i199008-199104
main67006-90N01i199008-199505
LH
main67006-90N02i199008-199505
LH
main67006-90N03i199008-199104
main67006-90N04i199008-199505
main67006-90N05i199008-199505
main67006-90N06i199008-199104
main67006-90N07i199008-199104
main67006-90N08i199008-199505
main67006-90N09i199008-199104
main67006-90N10i199008-199104
main67006-90N11i199008-199505
main67006-90N12i199008-199104
67005BCUSHION(FOR BACK DOOR PANEL)
main90540-04004×2i198508-198804
LH; RH
main90541-03010i198804-199505
67151ACOVER, BACK DOOR SERVICE HOLE, NO.1
main67847-90D01i198508-198804
RH
main67847-90D02i198508-198804
LH
67151BCOVER, BACK DOOR SERVICE HOLE, NO.2
main67512-95A00i198804-199505
67151CPACKING, BACK DOOR SERVICE HOLE COVER, NO.1
main67685-90D01i198804-199505
67151DPACKING, BACK DOOR SERVICE HOLE COVER, NO.2
main67685-90D01i198804-199505
67686PACKING, BACK DOOR SERVICE HOLE, NO.2
main67686-90D00i198508-198804
67766COVER, BACK DOOR SERVICE HOLE, NO.2
main67808-90D00i198508-198804
67881PLATE, BACK DOOR WEATHERSTRIP SET
main67889-90D03×2i198804-199505
67881AWEATHERSTRIP, BACK DOOR
main67881-90D04i198804-199008
main67881-90D05i198804-199008
main67881-90D06i199008-199505
67883WEATHERSTRIP, BACK DOOR, CENTER
main67884-90D03×2i198508-198804
67883BCLIP, BACK DOOR WEATHERSTRIP
main90467-06044×8i198508-198804
67893RETAINER, REAR QUARTER WINDOW, RH
main67855-90D00i199008-199505
*H,L=1360
main67894-90D00i199008-199505
*H,L=531
68131GLASS, BACK DOOR
main68131-90D05×2i198804-199505
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-90D03×2i198508-198804
68678PROTECTOR, BACK DOOR WINDOW
main68678-90D00i199008-199505
6168195A00PANEL, REAR BODY STEP, RH
main61681-95A00
904670604908
main90467-0604908
9046708051
main90467-08051
9095001408
main90950-01408
9095001424
main90950-01424
9095001444
main90950-01444
9095001450
main90950-01450
9095001599
main90950-01599
9323915012
main93239-15012
9324914020
main93249-14020
9326915012
main93269-15012
9331214025
main93312-14025
9331516016
main93315-16016
9331914025
main93319-14025
9354013520
main93540-13520
9354014008
main93540-14008

33 parts on this diagram · 1 diagram in section
