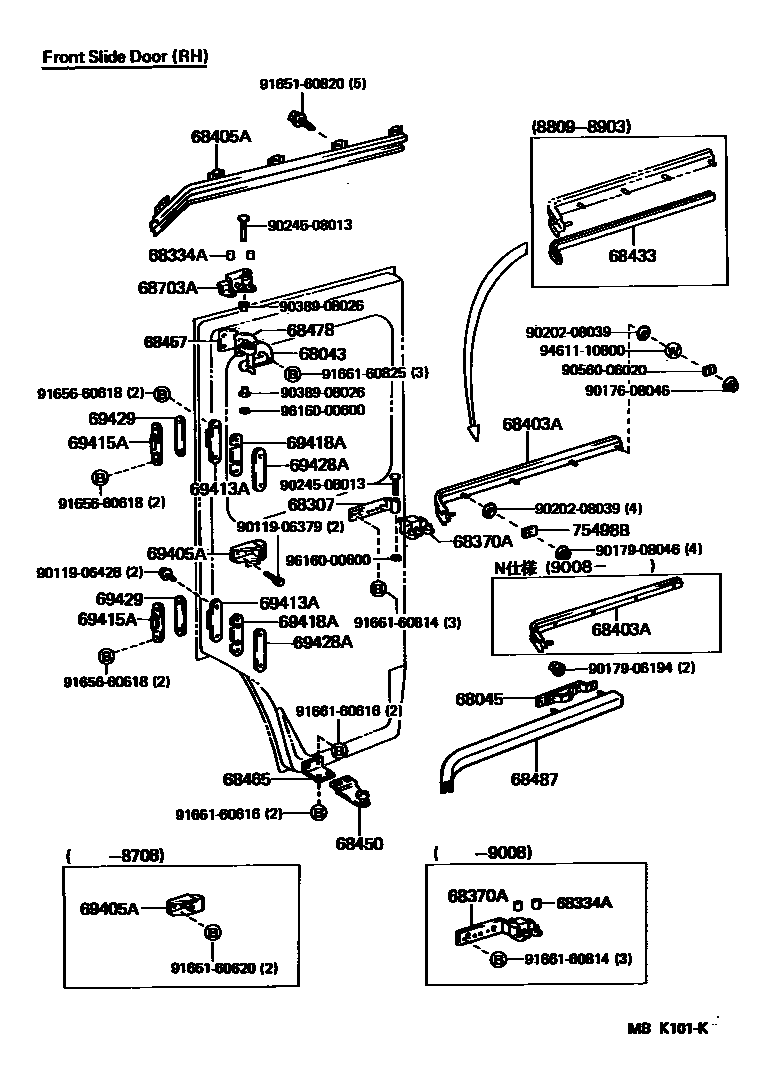

SLIDE ROLLER & RAIL

0001 1 0002 1 0003 1

68043ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH

main68043-90D03iLH8#198508-199505

68045BRACKET SUB-ASSY, FRONT SLIDE DOOR CATCH

main68045-90D02×2iLH8#198508-198804

68307HINGE SUB-ASSY, SLIDE DOOR CENTER MALE

main68307-95702iLH8#199008-199505

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700×2iLH80..4D198508-198804

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700×4iLH8#198804-199008

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-87001iLH80..4D198508-198602

main68370-90D00iLH80..4D198602-198804

68370AHINGE ASSY, FRONT SLIDE DOOR, CENTER RH

main68701-26010iLH8#199101-199505

main68701-90D01iLH8#199008-199101

main68710-90D00iLH8#198508-199008

68403ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH

main68403-90D02iLH8#198508-198903

main68403-90D03iLH8#198903-199008

main68403-90F02iLH8#..N199008-199011

68405ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68405-90D01iLH8#198508-199505

68433PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, RH

main68433-90D00iLH8#198809-198903

68450ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH

main68450-90D01iLH8#198508-199505

68457BASE, FRONT SLIDE DOOR CUSHION

main68457-26010iLH8#199206-199505

68465BRACKET, FRONT SLIDE DOOR LOWER ROLLER

main68465-90D01iLH8#198508-198804

RH

main68466-90D01iLH8#198508-198804

LH

68478PLATE, FRONT SLIDE DOOR ARM STOPPER

main68478-90D00×8iLH8#198508-198804

68487GUIDE, FRONT SLIDE DOOR LOWER ROLLER, RH

main68407-90D04iLH8#198708-198910

main68487-90D07iLH8#198910-199505

68703AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68704-26010iLH8#199101-199505

main68704-90D00iLH8#198508-199101

69405ASTOP, FRONT SLIDE DOOR

main69405-90D03iLH80198508-198708

LH

main69405-90D04iLH80198508-198708

RH

main69405-90D05iLH8#198708-198804

RH

main69406-90D00iLH8#198804-199505

69413STOP, SLIDE DOOR DOWN MALE

main69406-95J00×2iLH80..4D198508-198803

main69406-95J01×2iLH80..4D198803-198804

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

main69406-95J00×4iLH8#198508-198803

main69406-95J01×4iLH8#198803-199108

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95J00×2iLH80..4D198508-198804

main69415-95J01×2iLH80..4D198906-199108

69415ASTOP, FRONT SLIDE DOOR DOWN FEMALE

main69415-95J00×4iLH8#198508-199108

main69415-95J01×4iLH8#198906-199108

69418ASHIM, FRONT SLIDE DOOR DOWN STOP MALE

main69418-95700×8iLH8#198508-198804

69428APAD, FRONT SLIDE DOOR DOWN STOP, MALE

main69428-90D00×4iLH8#198508-199108

69429PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL

main69429-90D00×4iLH8#198508-199108

75498BSEAL, OUTSIDE MOULDING, NO.2

main75498-90F01×4iLH8#..N199008-199011

9011906379

main90119-06379

9011906428

main90119-06428

9017608046

main90176-08046

9017906194

main90179-06194

9017908046

main90179-08046

9020208039

main90202-08039

9024508013

main90245-08013

9038908026

main90389-08026

9056006020

main90560-06020

9165160620

main91651-60620

9165160820

main91651-60820

9165660618

main91656-60618

9166160616

main91661-60616

9166160814

main91661-60814

9166160825

main91661-60825

9461110800

main94611-10800

9616000600

main96160-00600

42 parts on this diagram · 3 diagrams in section
