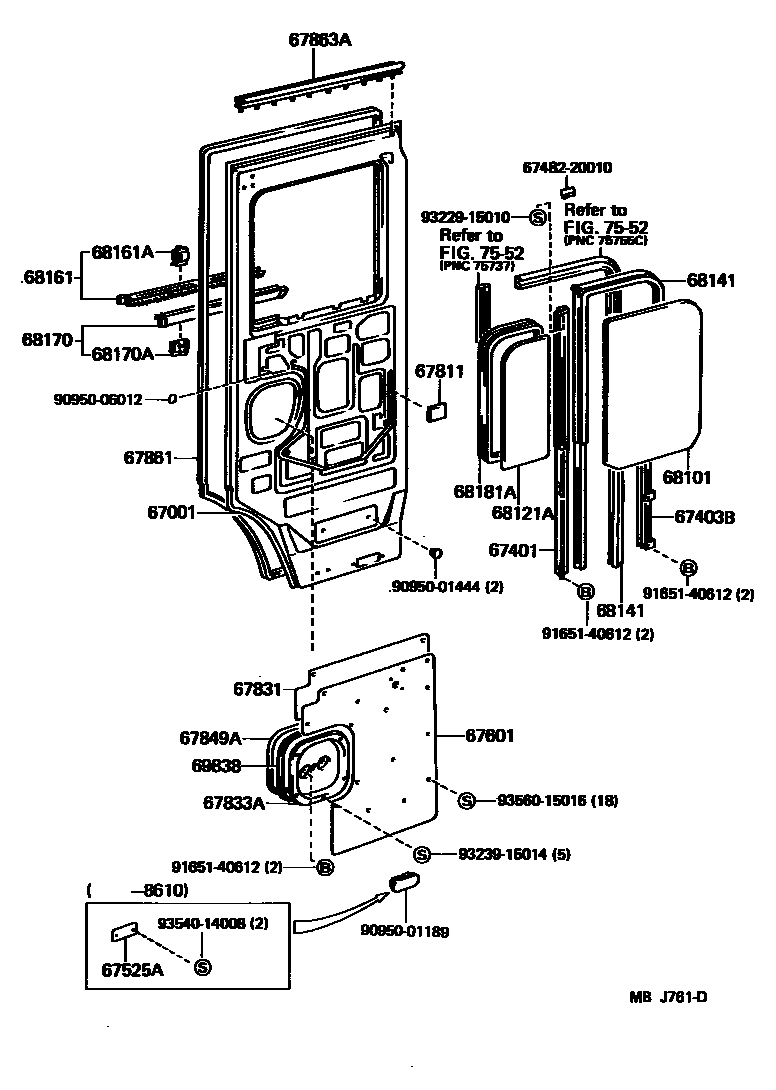

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-90D04iLH80..5H198508-198602

main67001-90D05iLH80..5H..N198508-198602

W/*EL

main67001-90D06iLH80198602-198708

main67001-90D07iLH80..N198602-198708

W/*EL

main67001-90D08iLH8#198708-199008

main67001-90D09iLH8#..N198708-198804

W/*EL

main67001-90D11iLH8#199008-199010

main67001-90D12iLH8#..N199008-199505

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67503-90D00iLH8#198508-198910

main67503-90D01iLH8#198910-199505

67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-90D00iLH8#198508-199505

67525ACOVER, SLIDE DOOR PANEL, LOWER

main67525-90D00×2iLH80..5H198508-198610

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67601-90D00iLH80198508-198708

main67611-90D02-05iLH8#198708-198804

BEIGE,BEIGE,TRIM4#

67811PAD, FRONT DOOR SILENCER

main67811-90D00×3iLH8#198508-198804

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-90D01iLH80198508-198708

main67831-90D02iLH80198708-198710

67833ACOVER, FRONT SLIDE DOOR PANEL, INNER

main67833-90D00iLH8#198508-199505

67849APROTECTOR, FRONT SLIDE DOOR PANEL COVER

main67849-90D00iLH8#198508-199505

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90D04iLH8#198508-199008

main67861-90D06iLH8#198804-199008

67863AWEATHERSTRIP, FRONT DOOR, UPPER RH

main67863-90D00iLH8#198508-199505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-90D00iLH8#198508-198804

68121AGLASS, DOOR VENTILATING WINDOW, RH

main68121-90D00iLH8#198508-199505

68141RUN, FRONT DOOR GLASS

main68141-90D00iLH8#198508-199505

main68143-90D00iLH8#198508-198804

L=593

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-90D00iLH8#198508-199505

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-95J00×3iLH8#198508-199505

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-90D00iLH8#198508-199505

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68212-95J00×3iLH8#198508-199505

68181AWEATHERSTRIP, FRONT DOOR VENT WINDOW, RH

main68181-90D00iLH8#198508-199505

69838SEAL, WINDOW REGULATOR HOLE, NO.2

main69838-90D00iLH8#198508-199505

7552MOULDING

→ Go to FIG 75-52

6748220010RETAINER, FRONT DOOR GLASS, FRONT LH

main67482-20010

9095001189

main90950-01189

9095001444

main90950-01444

9095006012

main90950-06012

9165140612

main91651-40612

9322915010

main93229-15010

9323915014

main93239-15014

9354014008

main93540-14008

9356015016

main93560-15016

30 parts on this diagram · 2 diagrams in section
