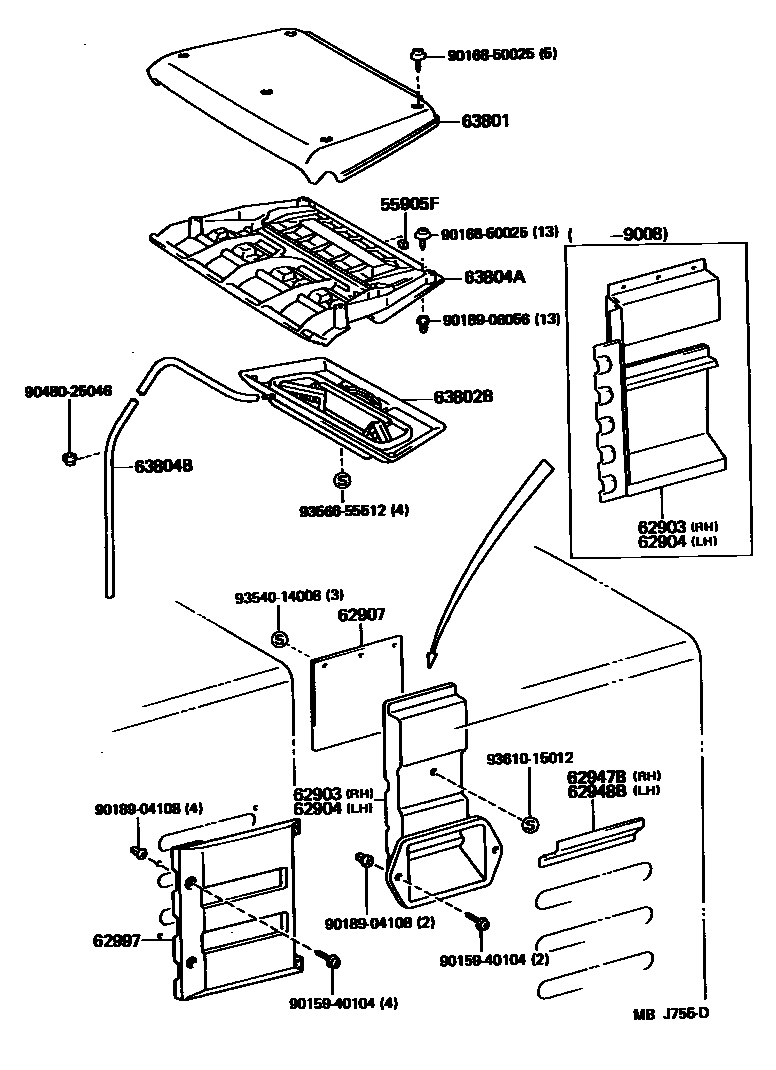

REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iLH8#198508-199505

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-90D01iLH8#198508-198804

main62903-90D02iLH8#..CBU199008-199505

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62903-90D02iLH8#..CBU199008-199505

main62904-90D02iLH8#198508-198804

62907BUTTERFLY SUB-ASSY, VENT

main62935-90D01iLH8#..125..CBU; LH80..1T198804-199008

62947BSHIELD, QUARTER VENT DUCT WATER, RH

main62947-90D00iLH80198508-198708

62948BSHIELD, QUARTER VENT DUCT WATER, LH

main62948-90D00iLH80198508-198708

62997COVER, QUARTER VENT HOLE

main62997-90901×2iLH8#..D..CBU; LH8#..N199306-199505

main62997-90D00×2iLH8#198508-198712

main62997-90D00-08×2iLH8#..D..CBU198804-198808

WHITE,033

main62997-90D00-18×2iLH8#..N198804-199008

CREAM,9A7

main62997-90D00-28×2iLH8#..D..CBU198808-199008

WHITE,045

main62997-90D01-08×2iLH8#..D..CBU199008-199306

WHITE,045

main62997-90D01-18×2iLH8#..N199008-199306

CREAM,9A7

63801COVER SUB-ASSY, ROOF VENTILATOR, FRONT

main63801-95401iLH8#198508-199505

63802BCOVER SUB-ASSY, ROOF VENTILATOR, INNER

main63802-95400-03iLH8#198508-198804

GRAY,GRAY

main63802-95400-B6iLH8#199109-199505

GRAY,TRIM4#

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iLH8#198508-199505

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main63849-90D00iLH8#198508-198812

main63849-90F00iLH8#198812-199505

9015940104

main90159-40104

9016850025

main90168-50025

9018904108

main90189-04108

9018906056

main90189-06056

9048025046

main90480-25046

9354014008

main93540-14008

9356655512

main93566-55512

9361015012

main93610-15012

19 parts on this diagram · 1 diagram in section
