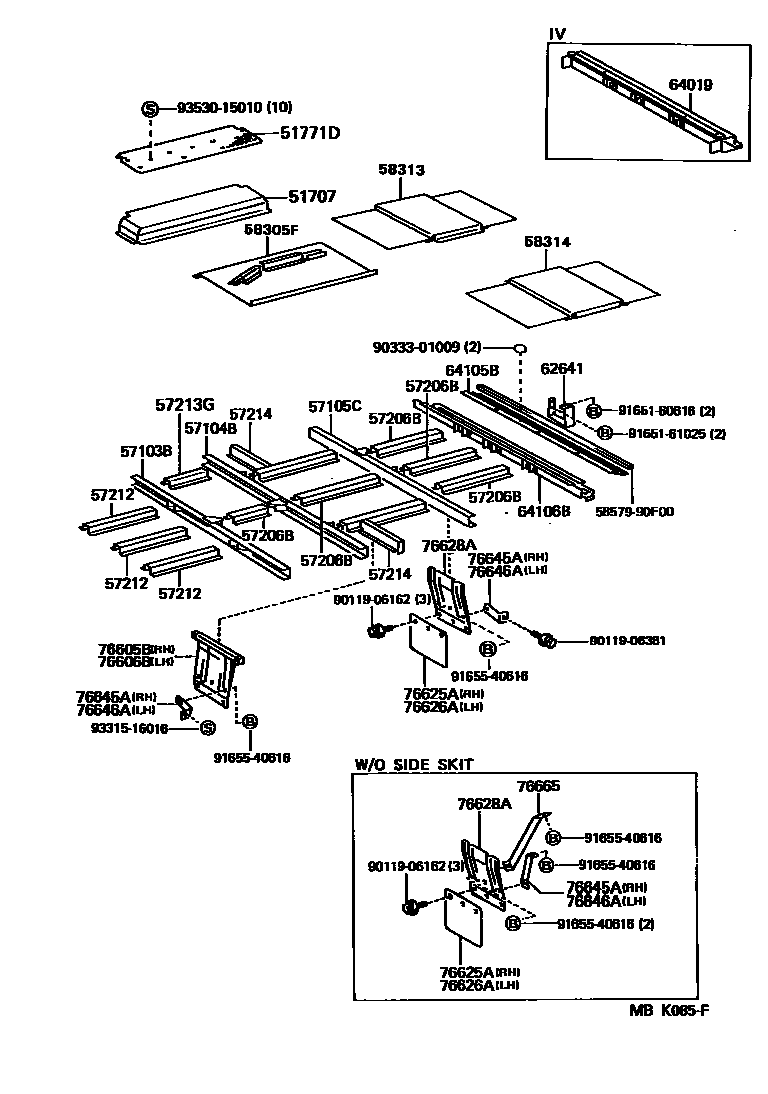

REAR FLOOR PANEL & REAR FLOOR MEMBER

51707STEP SUB-ASSY, RH

main51707-90D01iLH80..4D199008-199505

51771DPLATE, STEP RH

main51771-90D01iLH80..4D199001-199505

57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3

main57103-90D06iLH8#199008-199505

57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4

main57104-90D04iLH8#..3D;LH80..IV199008-199505

main57104-90D05iLH80..4D199008-199505

57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5

main57105-90D03iLH80..IV;LH80..3D199008-199505

main57105-90D04iLH80..4D199008-199505

main57105-90D05iLH85199008-199505

57206BSTRENGTH SUB-ASSY, ANCHOR

main57206-90D04iLH80..3D; LH85;LH80..IV;LH80..4D199008-199505

FR; SIDE-LH

main57206-90D05iLH80..3D; LH85;LH80..IV;LH80..4D199008-199505

RR,SIDE -LH

main57206-90D06iLH8#..CBU; LH80..IV199008-199505

CTR

main57215-90D04iLH8#199008-199505

57212STRENGTH, ANCHOR, NO.2

main57201-26010×3iLH80..3D; LH85;LH80..IV;LH80..4D199503-199505

main57212-90D02×3iLH8#199008-199503

57213GSTRENGTH, ANCHOR, NO.3

main57213-90D04iLH80..4D199008-199505

57214STRENGTH, ANCHOR, NO.4

main57214-90D02×3iLH8#..CBU; LH80..IV199008-199505

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-90D01iLH80..4D199008-199505

58313PANEL, REAR FLOOR SIDE, RH

main58313-90D02iLH8#199008-199505

58314PANEL, REAR FLOOR SIDE, LH

main58313-90D02iLH8#..3D;LH80..IV199008-199505

62641STEP, REAR

main52351-90D05iLH80..1T198508-199505

64019RAIL SUB-ASSY, LOWER BACK

main64019-90D01iLH80..IV198508-199505

64105BRAIL SUB-ASSY, LOWER BACK, OUTER

main64105-26010iLH8#..3D199103-199505

main64105-26020iLH80..4D199103-199505

main64105-90D06iLH8#..3D198804-199008

main64105-90D07iLH80..4D198804-199008

main64105-90D10iLH8#..3D199008-199103

main64105-90D11iLH80..4D199008-199103

64106BRAIL SUB-ASSY, LOWER BACK, INNER

main64106-90D06iLH8#..CBU198508-198808

main64106-90D09iLH8#..CBU198808-199008

main64106-90D11iLH8#..CBU199008-199503

76605BMUDGUARD SUB-ASSY, REAR BODY, FRONT RH

main76605-90D04iLH8#198508-199505

76606BMUDGUARD SUB-ASSY, REAR BODY, FRONT LH

main76606-90D02iLH8#198508-199505

76625AMUDGUARD, REAR BODY, RH

main76625-90D00iLH8#..125198508-199505

76626AMUDGUARD, REAR BODY, LH

main76625-90D00iLH8#..125198508-199505

76628AMUDGUARD, REAR BODY, REAR

main76628-90D02×2iLH80198803-199008

main76628-90D03×2iLH85198803-199008

main76628-90D04×2iLH80199008-199505

main76628-90D05×2iLH85199008-199505

76645ABRACKET, REAR BODY MUDGUARD NO.1, RH

main76645-90D01×2iLH80..D..CBU; LH80..N198804-199505

main76645-90D05×2iLH85..D; LH85..N198804-199505

main76647-90D05iLH8#..D198508-199505

76646ABRACKET, REAR BODY MUDGUARD NO.1, LH

main76646-90D01×2iLH80..D..CBU; LH80..N198804-199505

main76646-90D02×2iLH85..D; LH85..N198804-199505

main76648-90D00iLH8#..D198508-199505

76665BRACE, REAR MUDGUARD

main76665-90D00×2iLH8#..D198508-199505

5857990F00SET PLATE, REAR FLOOR CARPET, NO.1

main58579-90F00

9011906162

main90119-06162

9011906381

main90119-06381

9033301009

main90333-01009

9165160616

main91651-60616

9165161025

main91651-61025

9165540616

main91655-40616

9331516016

main93315-16016

9353015010

main93530-15010

33 parts on this diagram · 1 diagram in section
