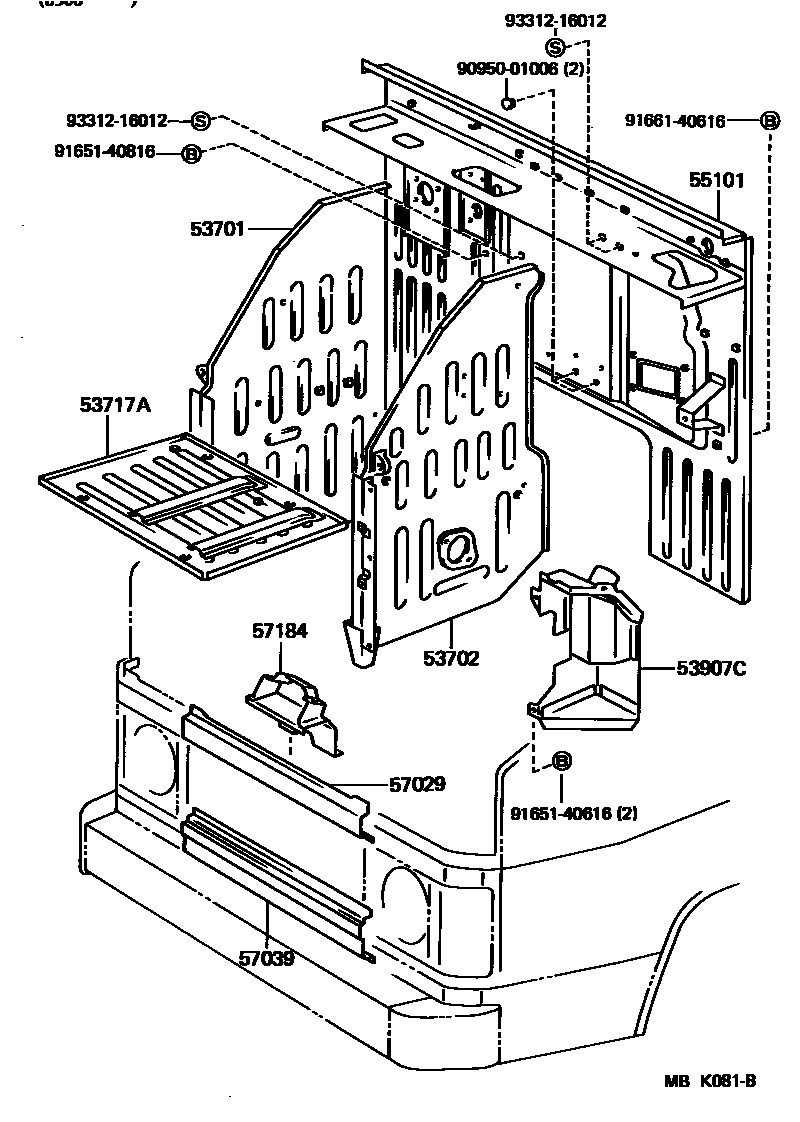

FRONT FENDER APRON & DASH PANEL

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-90D00iLH80..5H..D198508-198702

main53707-90D01iLH80..5H..N198508-198702

main53707-90D02iLH80..D198702-198708

main53707-90D03iLH80..N198702-198708

main53707-90D04iLH8#..5H..D198708-199505

main53707-90D05iLH8#..5H..N198708-199505

main53707-90D06iLH80..4HC..N198708-198804

main53707-90D07iLH80..4HC..D198708-198804

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-90D00iLH80..D198508-198708

main53708-90D01iLH80..N198508-198708

main53708-90D02iLH8#..D198708-198808

main53708-90D03iLH8#..N198708-198808

main53708-90D04iLH8#..D198808-199505

main53708-90D05iLH8#..N198808-199505

53717APLATE, FENDER APRON

main53701-90D01iLH8#198508-199008

main53701-90D02iLH8#199008-199505

53907CBOX SUB-ASSY, AIR INLET

main53907-90D01iLH8#198508-198809

55101PANEL SUB-ASSY, DASH

main55101-26010iLH8#199208-199505

main55101-90D05iLH80..5H198508-198704

main55101-90D06iLH80198704-198708

main55101-90D07iLH8#198708-198808

main55101-90D08iLH8#198808-199208

57029MEMBER SUB-ASSY, FRONT CROSS, UPPER

main57161-90D01iLH8#198508-199008

main57161-90D02iLH8#199008-199505

57039MEMBER SUB-ASSY, FRONT CROSS, LOWER

main57162-90D00iLH8#198508-199008

main57162-90D01iLH8#199008-199505

57184BRACKET, HOOD LOCK SUPPORT

main57184-90D01iLH8#198508-199008

main57184-90D02iLH8#199008-199505

9095001006

main90950-01006

9165140616

main91651-40616

9165140816

main91651-40816

9166140616

main91661-40616

9331216012

main93312-16012

13 parts on this diagram · 1 diagram in section
