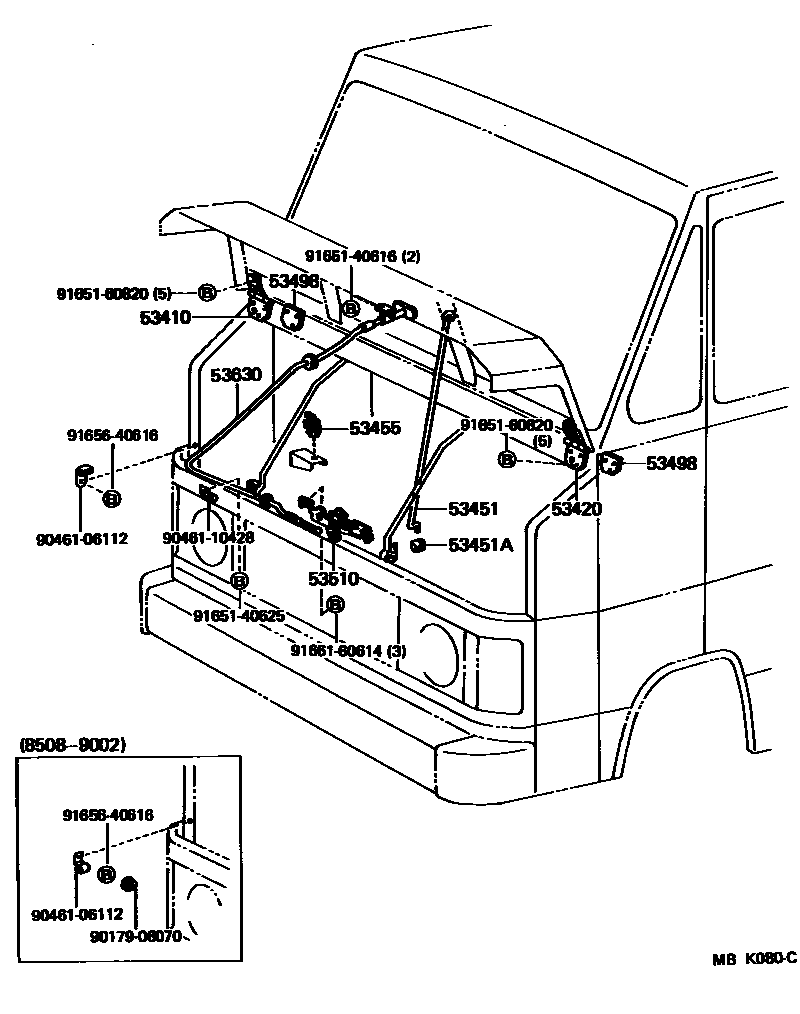

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53401-90D00iLH8#198508-199505

53420HINGE ASSY, HOOD, LH

main53401-90D00iLH8#198508-199505

53451ROD, HOOD SUPPORT

main53451-90D01iLH8#198508-199505

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iLH80..5H198508-198509

main90480-15296iLH8#198509-199505

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iLH8#198508-199505

53498PAD, HOOD HINGE, NO.2

main53498-90D00×2iLH8#198508-199505

53510LOCK ASSY, HOOD

main53510-90D01iLH8#198508-199505

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-90D00iLH8#198508-199505

9017906070

main90179-06070

9046106112

main90461-06112

9046110428

main90461-10428

9165140616

main91651-40616

9165140625

main91651-40625

9165160820

main91651-60820

9165640616

main91656-40616

9166160614

main91661-60614

16 parts on this diagram · 1 diagram in section
