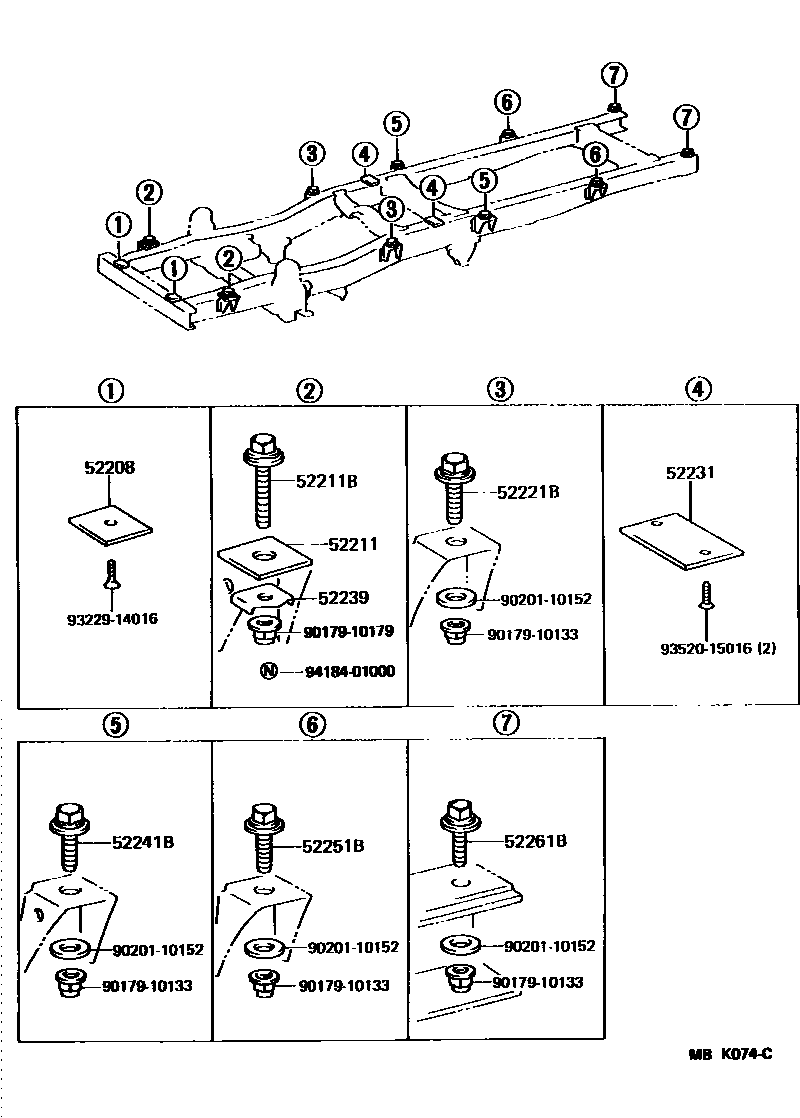

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52208SHIM SUB-ASSY, BODY MOUNTING

main51248-90D01×2iLH80198508-199505

main51248-90D02×2iLH85198711-199505

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-90D02×2iLH80198508-199505

main52213-90D02×2iLH85198711-199505

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90105-10074×2iLH85198711-198807

main90105-10242×2iLH85198807-199105

main90119-10219×2iLH80198508-198807

main90119-10537×2iLH80198807-199105

main90119-10716×2iLH85199105-199505

main90119-10720×2iLH80199105-199505

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52119-90D01×2iLH85198711

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main52291-90D01×2iLH85198711-199505

main90105-10064×2iLH80198508-198807

main90119-10538×2iLH80198807-199505

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52212-90D01×2iLH80198508-199505

main52212-90D02×2iLH85198711-199505

52239PLATE, BODY MOUNTING

main52239-90D00×2iLH8#198508-199505

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52291-90D01×2iLH85198711-199505

52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)

main52291-90D01×2iLH85198711-199505

main90105-10064×2iLH80198508-198807

main90119-10538×2iLH80198807-199505

52251CUSHION, BODY MOUNT, NO.5 UPPER

main52291-90D01×2iLH85198711-199505

52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)

main52291-90D01×2iLH85198711-199505

main90105-10064×2iLH80198508-198807

main90119-10538×2iLH80198807-199505

52261BBOLT(FOR BODY MOUNT NO.6 CUSHION)

main52291-90D01×2iLH85198711-199505

main90105-10064×2iLH80198508-198807

main90119-10538×2iLH80198807-199505

9017910133

main90179-10133

9017910179

main90179-10179

9020110152

main90201-10152

9322914016

main93229-14016

9352015016

main93520-15016

9418401000

main94184-01000

18 parts on this diagram · 2 diagrams in section
