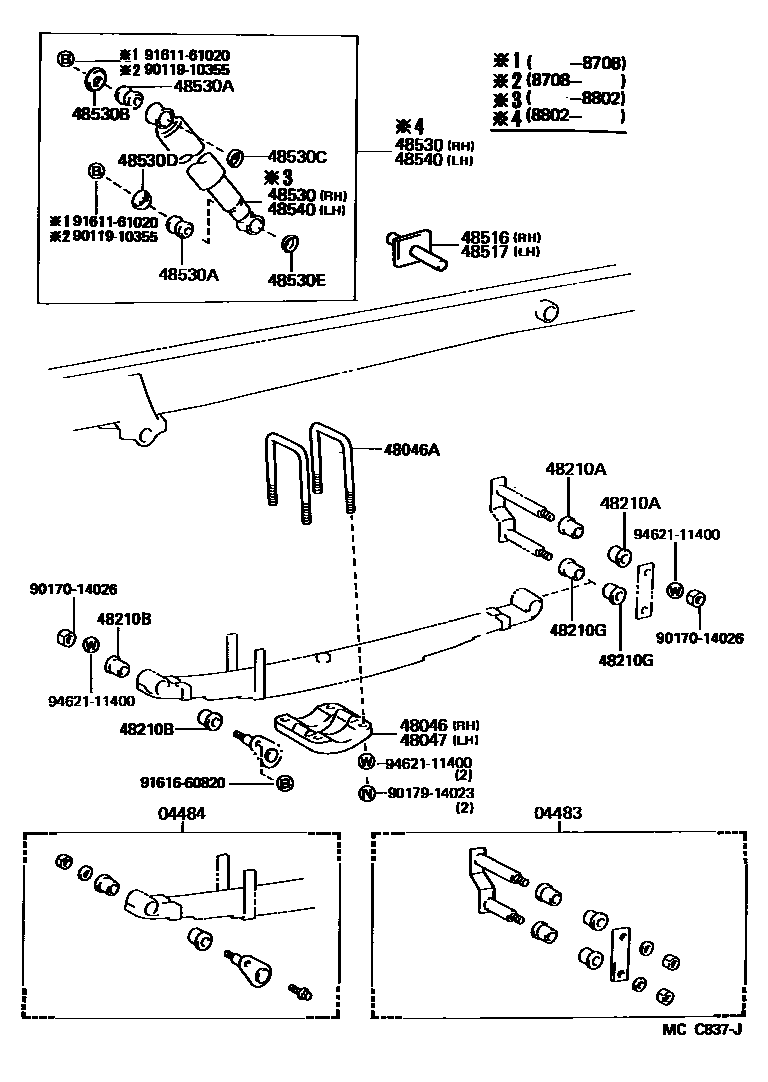

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

04483SHACKLE KIT, REAR SPRING

main04483-26080×2iLH80198508-199505

main04483-26090×2iLH85198711-199505

04484PIN KIT, REAR SPRING

main04484-26030×2iLH80198508-199505

main04484-26040×2iLH85198711-199505

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26080iLH8#198508-199505

48046ABOLT, U(FOR REAR SPRING)

main90117-14031×4iLH80199408-199505

main90117-14034×4iLH85198804-199505

main90117-14048×4iLH80..125198804-199408

main90118-14208×4iLH80..1T198508-198701

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-26080iLH8#198508-199505

48210SPRING ASSY, REAR RH

main48210-26430iLH80..1T198508-199505

main48210-26440iLH80..125198804-199505

main48210-26570iLH85198711-198804

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18011×4iLH8#198508-199505

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046×4iLH8#198508-199505

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046×4iLH8#198508-199505

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-26010iLH8#198804-199505

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-26010iLH8#198804-199505

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-26200iLH80198508-198802

main48531-80160iLH85198711-199505

sub48531-80543

main48531-80165iLH80198802-199505

sub48531-80496

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×4iLH80198508-198708

main90385-16010×4iLH8#198708-199505

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03007×2iLH80198508-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iLH8#198508-199505

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007×2iLH80198508-198708

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLH8#198508-199505

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-26200iLH80198508-198802

main48531-80160iLH85198711-199505

sub48531-80543

main48531-80165iLH80198802-199505

sub48531-80496

9011910355

main90119-10355

9017014026

main90170-14026

9017914023

main90179-14023

9161161020

main91611-61020

9161660820

main91616-60820

9462111400

main94621-11400

24 parts on this diagram · 3 diagrams in section
