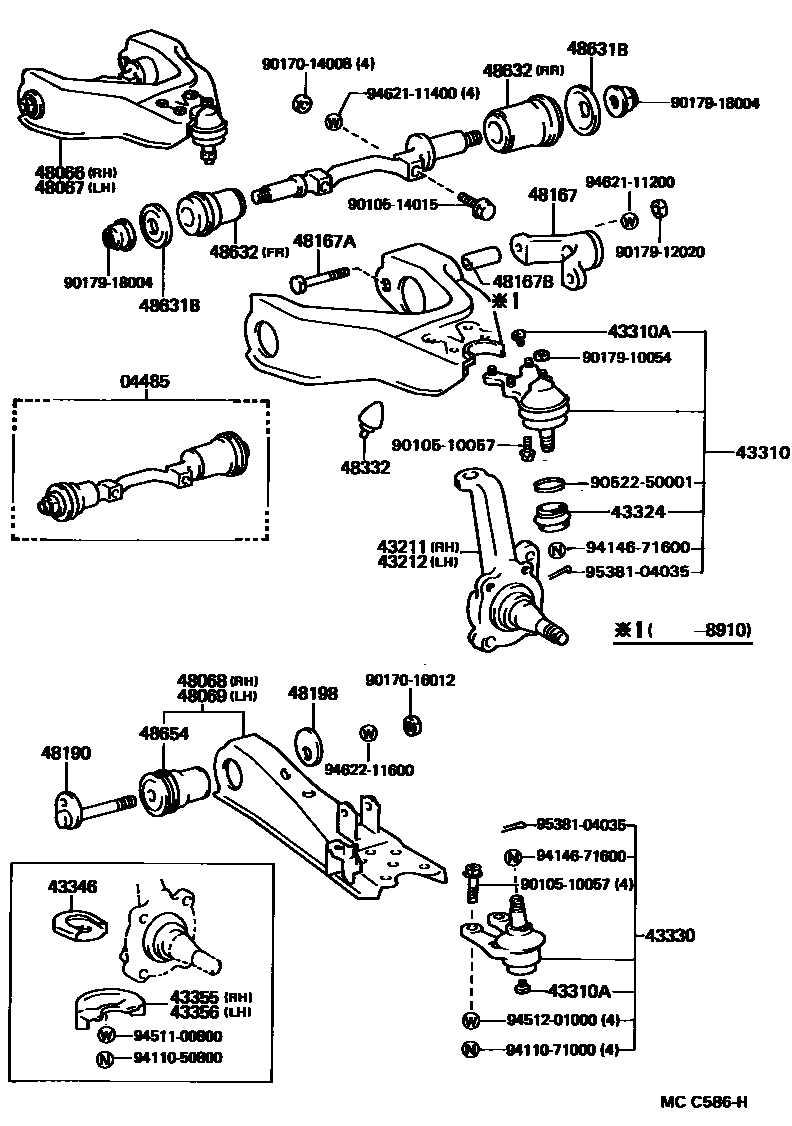

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26040×2iLH80198508-198908

main04485-26050×2iLH80198908-199505

sub04485-26120

43211KNUCKLE, STEERING, RH

main43201-26010iLH85198711-199310

main43201-26030iLH85199310-199505

sub43201-26031

sub90304-76005

main43211-26051iLH80198508-199505

43212KNUCKLE, STEERING, LH

main43202-26010iLH85198711-199310

main43202-26030iLH85199310-199505

sub43202-26031

sub90304-76005

main43212-26021iLH80198508-199505

43310JOINT ASSY, UPPER BALL

main43350-29055iLH80198508-198804

RH

main43350-29056iLH80198804-198910

main43350-29065×2iLH80198910-199306

main43350-29095×2iLH80199306-199505

main43360-29075iLH80198508-198804

LH

main43360-29076iLH80198804-198910

43310APLUG (FOR BALL JOINT)

main90345-06014×2iLH85198711-198910

43324COVER, UPPER JOINT DUST

main43324-26020×2iLH85198711-198910

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29125iLH80..5H198508-198608

RH

main43330-29155×2iLH80198804-199505

sub43330-29535

main43330-39195iLH85198711-198804

RH

main43340-29105iLH80..5H198508-198608

LH

main43340-39175iLH85198711-198804

LH

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-26010×2iLH80198508-198804

COLD SPEC

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iLH80198508-198804

COLD SPEC

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iLH80198508-198804

COLD SPEC

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-26050iLH85198711-198908

main48066-29025iLH85198908-199505

main48610-26040iLH80..5H198508-198703

main48610-26041iLH80198703-198910

main48610-29015iLH80198910-199306

main48610-29085iLH80199306-199505

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-26050iLH85198711-198908

main48067-29025iLH85198908-199505

main48630-26040iLH80..5H198508-198703

main48630-26041iLH80198703-198910

main48630-29015iLH80198910-199306

main48630-29075iLH80199306-199505

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26021iLH80..5H198508-198703

main48068-26022iLH80198703-199505

main48068-26040iLH85198711-199109

main48068-26080iLH85199109-199505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26021iLH80..5H198508-198703

main48069-26022iLH80198703-199505

main48069-26040iLH85198711-199109

main48069-26080iLH85199109-199505

48167ARM, TORQUE

main48106-26011×2iLH80198508-198910

main48106-26030×2iLH85198711-199505

sub48106-25010

main48106-26050×2iLH80198910-199505

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-12131×4iLH80198611-198804

*12-1.25PX85-30

main90105-12141×2iLH85198711-198804

*12-1.25PX34.5-16.5

main90105-12151×2iLH85198711-198804

*12-1.25PX54.5-16.5

main90105-12183×2iLH80198910-199505

main90105-12200×2iLH85198906-198910

main90105-12201×2iLH85198906-199505

*12-1.25PX54.5-16.5

main91171-71285×4iLH80..5H198508-198611

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-20010×2iLH80198508-198910

48190CAM ASSY, CAMBER ADJUST

main48190-26010×2iLH85198804-199201

main48190-26020×2iLH85199201-199505

48198CAM, CAMBER ADJUST, NO.2

main48198-26010×2iLH85198804-199505

48332BUMPER, FRONT SPRING, NO.2

main48332-26020×2iLH85198711-199505

main48332-35020×2iLH80198508-199505

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02065×2iLH80198508-198804

RR

main90948-02066×2iLH80198508-198804

FR

main90948-02142×2iLH80198908-199505

main90948-02143×2iLH80198908-199505

48632BUSH, UPPER ARM

main48632-26010×2iLH80198508-198804

FR

main48635-26010×2iLH80198804-199505

48654BUSH, LOWER ARM

main48061-26010×2iLH80198508-199505

main48061-26020×2iLH85198711-199505

9010510057

main90105-10057

9010514015

main90105-14015

9017014008

main90170-14008

9017016012

main90170-16012

9017910054

main90179-10054

9017912020

main90179-12020

9017918004

main90179-18004

9052250001

main90522-50001

9411050800

main94110-50800

9411071000

main94110-71000

9414671600

main94146-71600

9451100800

main94511-00800

9451201000

main94512-01000

9462111200

main94621-11200

9462111400

main94621-11400

9462211600

main94622-11600

9538104035

main95381-04035

40 parts on this diagram · 2 diagrams in section
