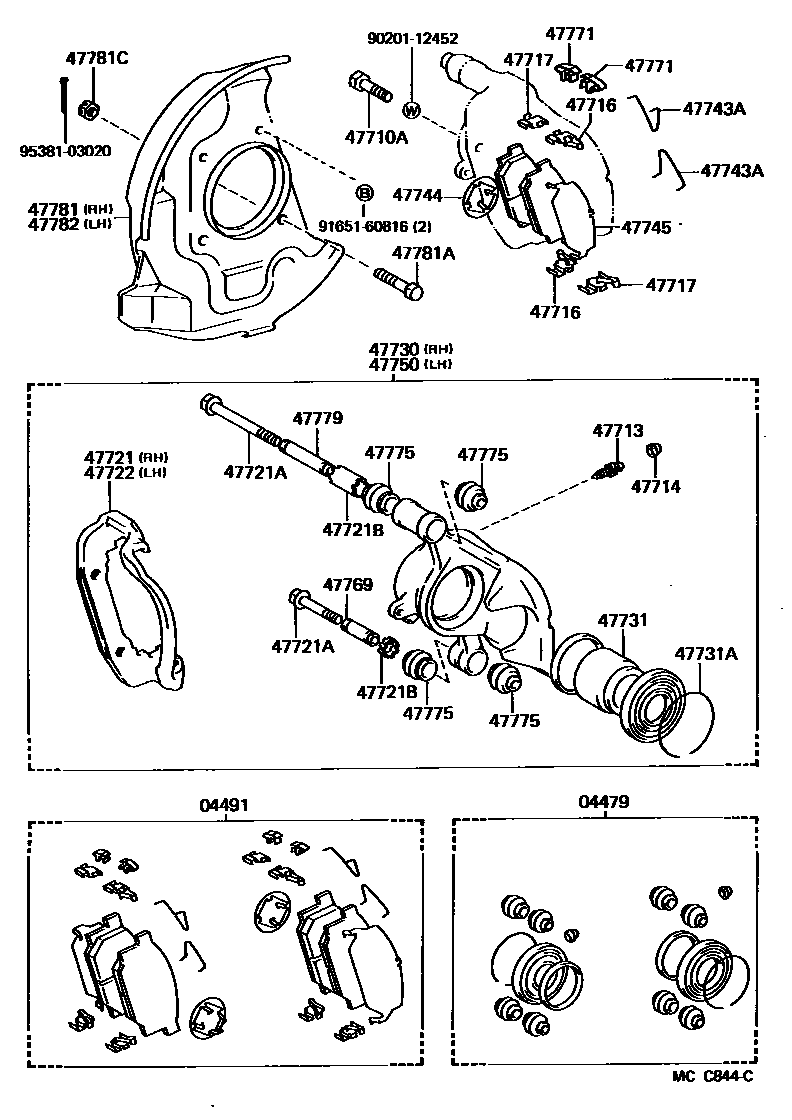

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26030iLH85198711-199505

main04479-40010iLH80198508-199505

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-26080iLH80198508-198804

main04491-26160iLH85198711-199505

main04491-26200iLH80198804-198808

main04491-26220iLH80..N198808-199110

main04491-26300iLH80..N199110-199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132×4iLH80198804-199505

main90101-12149×4iLH85198804-199505

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLH80198508-199505

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLH80198508-199505

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26030×4iLH85198711-199004

main47716-26040×4iLH80199109-199505

main47716-26050×4iLH85199004-199505

main47716-40010×4iLH80198508-199109

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010×4iLH80199109-199505

main47717-26020×4iLH85199004-199505

main47717-26030×4iLH85198711-199004

main47717-40010×4iLH80198508-199109

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26060iLH80198508-199505

main47721-26070iLH85198711-199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLH8#198508-198804

main90119-10249×2iLH8#198804-199505

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLH80198508-198804

L=6

main90387-16005×2iLH80198508-198804

L=36

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26060iLH80198508-199505

main47721-26070iLH85198711-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26090iLH80198508-199505

main47730-26100iLH85198711-199505

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iLH85198711-199505

main47731-40010×2iLH80198508-199505

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-70001×2iLH80198508-199505

main90522-76001×2iLH85198711-199505

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-26030×4iLH85198804-199505

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26040×2iLH80198508-199505

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26020×2iLH80198508-199505

main47745-26030×2iLH85198711-199505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26090iLH80198508-199505

main47750-26100iLH85198711-199505

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLH8#198508-199505

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26010×4iLH80198804-198808

main47771-26011×4iLH80..D198812-199505

main47771-26020×4iLH85198804-199505

main47771-26040×4iLH80..N198808-199505

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010×8iLH85198711-199505

main47775-40010×8iLH80198508-198708

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLH8#198508-199505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26040iLH80198508-199505

main47781-26050iLH85198711-198907

main47781-26051iLH85198907-199505

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005×4iLH80198508-198804

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004×4iLH80198508-199505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26040iLH80198508-199505

main47782-26050iLH85198711-198907

main47782-26051iLH85198907-199505

9020112452

main90201-12452

9165160816

main91651-60816

9538103020

main95381-03020

29 parts on this diagram · 3 diagrams in section
