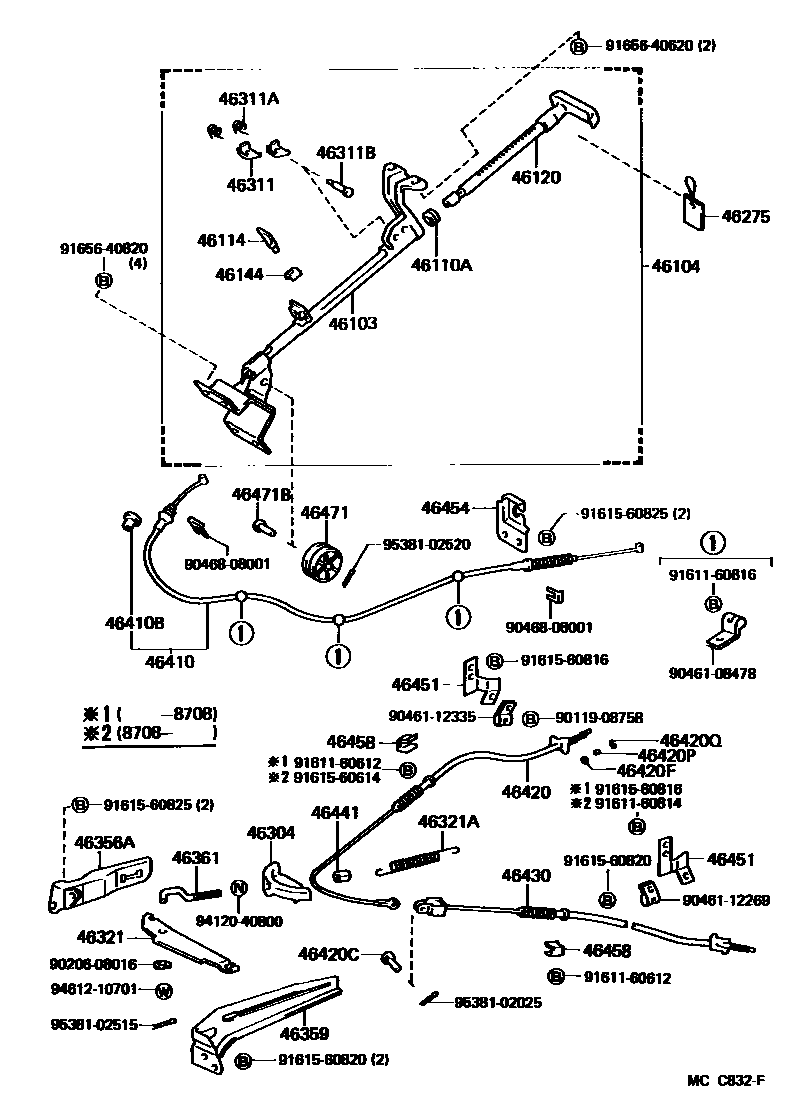

PARKING BRAKE & CABLE
46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
46114PIN, PARKING BRAKE PLUNGER
46144ANTI-RATTLE, PARKING BRAKE PLUNGER
46275PLATE, PARKING BRAKE RELEASE CAUTION
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46311PAWL, PARKING BRAKE
46311ASPRING(FOR PARKING BRAKE PAWL)
46311BPIN, PARKING BRAKE PAWL PIVOT
46321LEVER, PARKING BRAKE INTERMEDIATE
46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46410CABLE ASSY, PARKING BRAKE, NO.1
46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)
46420CABLE ASSY, PARKING BRAKE, NO.2
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46420FSEAL, DUST(FOR PARKING BRAKE CABLE)
46420PSPACER, PARKING BRAKE
46420QRING, E(FOR PARKING BRAKE CABLE)
46441NUT, WIRE ADJUSTING, NO.1
46451BRACKET, CABLE SUPPORT
RH
RH
LH
46454BRACKET, CABLE RETAINER, FRONT
46458RETAINER, CABLE
46471PULLEY, WIRE
46471BPIN, W/HOLE(FOR WIRE PULLEY SET)
9011908758
main90119-08758
9020608016
main90206-08016
9046108478
main90461-08478
9046112269
main90461-12269
9046112335
main90461-12335
9046808001
main90468-08001
9161160612
main91611-60612
9161160814
main91611-60814
9161160816
main91611-60816
9161560614
main91615-60614
9161560816
main91615-60816
9161560820
main91615-60820
9161560825
main91615-60825
9165640620
main91656-40620
9165640820
main91656-40820
9412040800
main94120-40800
9461210701
main94612-10701
9538102025
main95381-02025
9538102515
main95381-02515
9538102520
main95381-02520
50 parts on this diagram · 1 diagram in section
