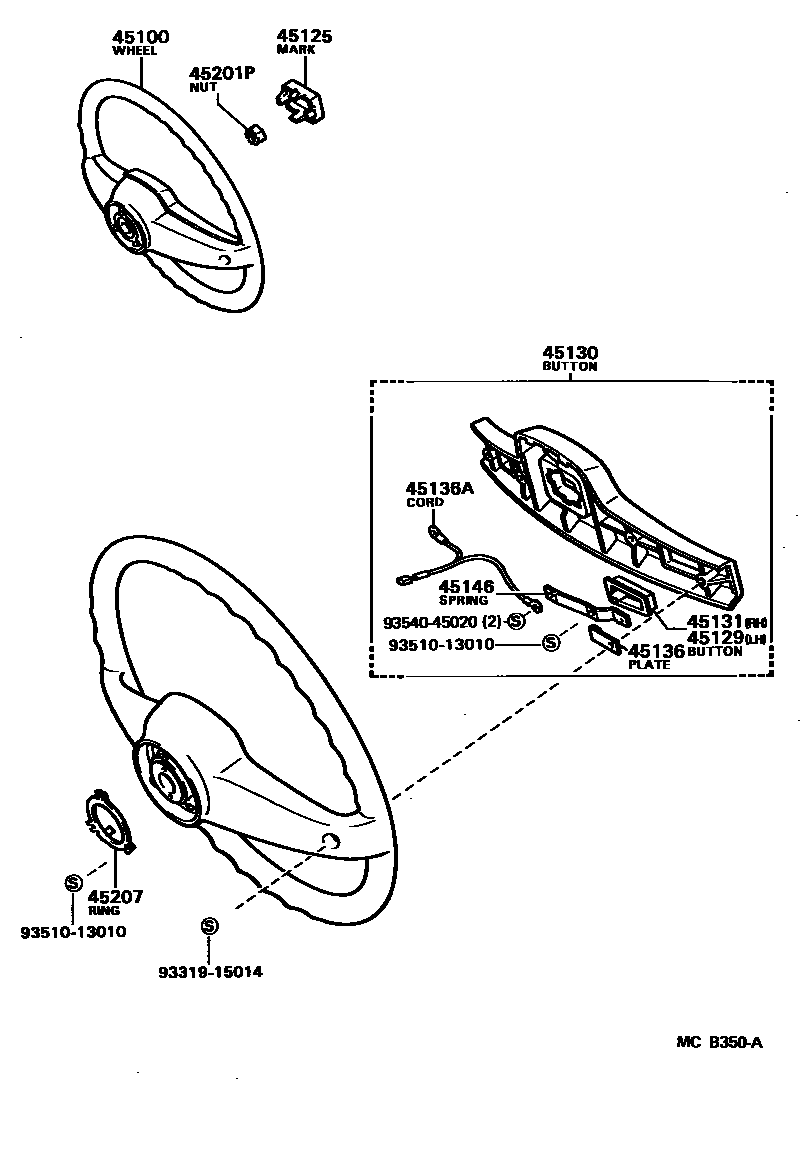

STEERING WHEEL

0001 1 0002 1W/POWER STEERING

45100WHEEL ASSY, STEERING

main45100-25080-06iLH80..D198508-198708

BROWN

main45100-26100-06iLH80198508-198708

W/POWER STEERING,BROWN

main45100-26121-06iLH8#198708-198804

45125MARK, STEERING WHEEL PAD

main45125-25030-06iLH80..D198508-198708

BROWN,BROWN

main45125-26060-06iLH80198508-198708

W/POWER STEERING,BROWN

45129BUTTON, HORN, NO.2

main45129-36010iLH80..D198508-198708

45130BUTTON ASSY, HORN

main45130-25060-06iLH80..D198508-198708

BROWN

main45130-26080-06iLH80198508-198708

W/POWER STEERING,BROWN

main45130-26110-06iLH8#199008-199505

BROWN,BROWN,TRIM4#

45131BUTTON, HORN, NO.1

main45131-26040×2iLH80198508-198708

W/POWER STEERING

main45131-26050×2iLH8#198804-199505

main45131-26050-06iLH8#198708-198804

BROWN

main45131-36050iLH80..D198508-198708

45136PLATE, HORN BUTTON CONTACT

main45136-26020iLH8#198508-199505

45136ACORD(FOR HORN CONTACT RING)

main90945-02040iLH80..D198508-198708

45146SPRING, HORN BUTTON CONTACT

main45146-26030×2iLH80198508-198708

W/POWER STEERING

main45146-36010×2iLH80..D198508-198708

45201PNUT, STEERING WHEEL SET

main90179-12071iLH8#199306-199505

main90179-12086iLH8#198508-199306

45207RING, HORN CONTACT

main45176-20030iLH80..D198508-198708

main45176-30070iLH80198508-198708

W/POWER STEERING

9331915014

main93319-15014

9351013010

main93510-13010

9354045020

main93540-45020

13 parts on this diagram · 2 diagrams in section
