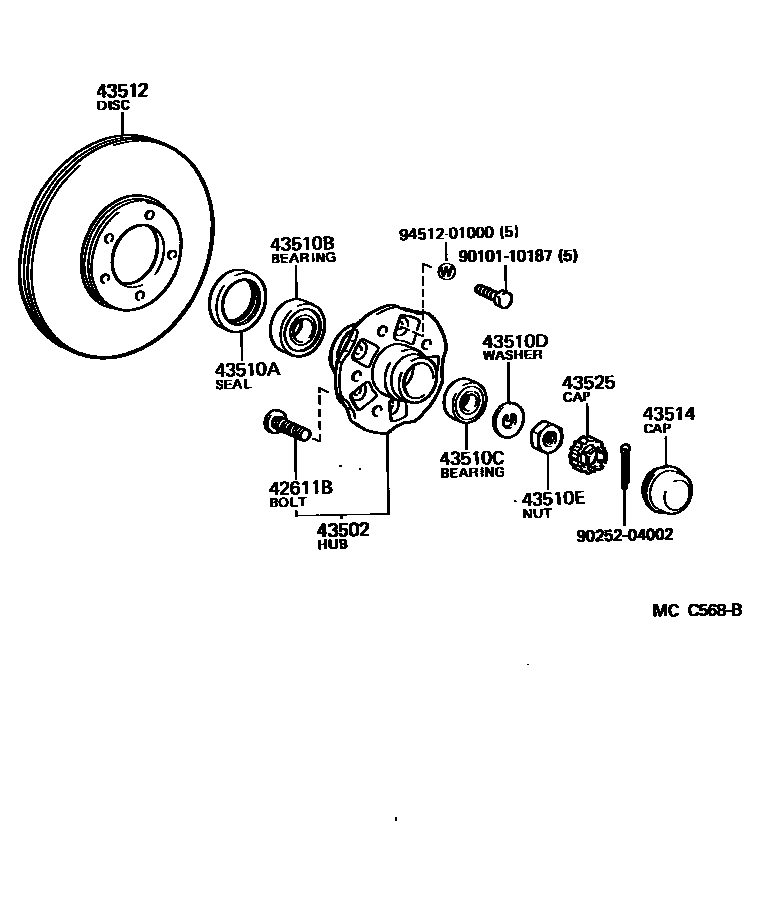

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×10iLH80..5H198508-198707

main90942-02047×10iLH80198707-198804

main90942-02049×12iLH85198711-198804

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050×2iLH80198508-198804

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005×2iLH80198508-199505

main90311-66001×2iLH85198804-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064×2iLH85199309-199505

TIMKEN

main90368-34001×2iLH80198508-199505

main90368-49084×2iLH85198910-199505

KOYO

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067×2iLH85199309-199505

TIMKEN

main90368-21001×2iLH80198508-199505

main90368-45087×2iLH85198910-199505

KOYO

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2iLH80198508-199505

main90214-42030×2iLH85198711-198804

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iLH80198508-199505

43512DISC, FRONT

main43512-26040×2iLH80198508-199505

main43512-26081×2iLH85198711-199505

43514CAP, FRONT HUB GREASE

main43514-35010×2iLH80198508-199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iLH80198508-199505

9010110187

main90101-10187

9025204002

main90252-04002

9451201000

main94512-01000

13 parts on this diagram · 2 diagrams in section
