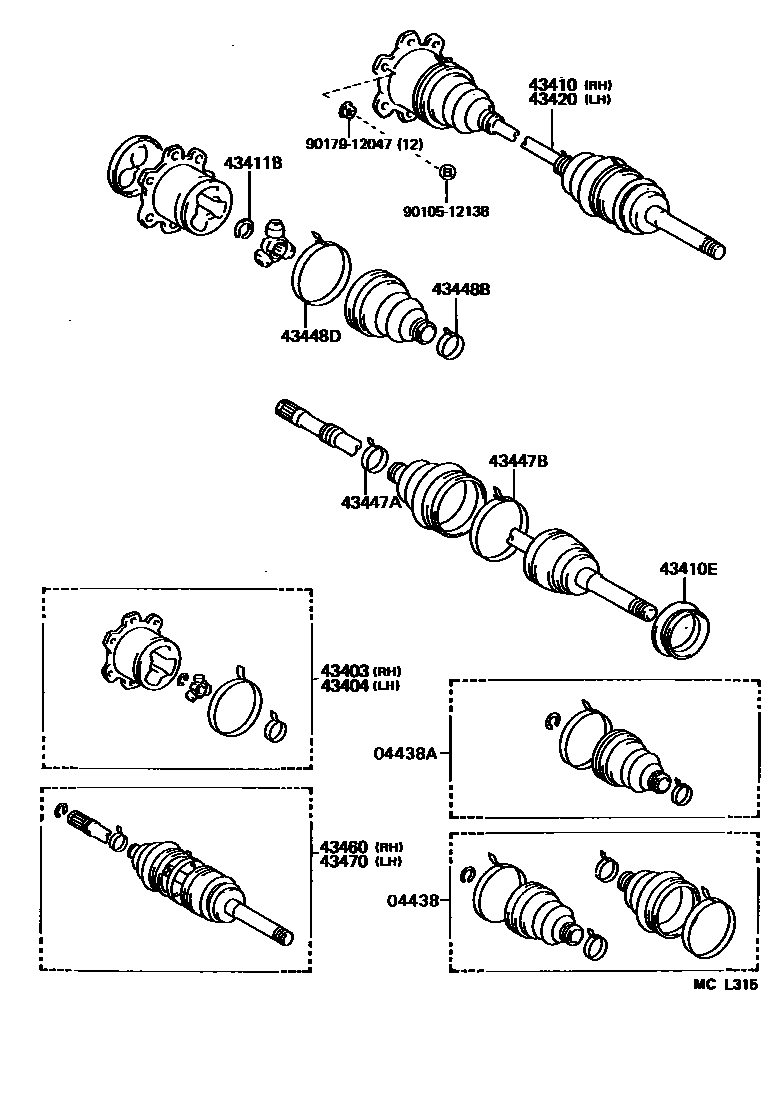

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35021×2iLH85198711-199505

sub04438-35022

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35011×2iLH85198711-199505

sub04438-35012

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-35010iLH85198711-199505

sub43403-35020

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-35010iLH85198711-199505

sub43403-35020

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26011iLH85198711-198906

main43430-26012iLH85198906-199505

sub43430-26013

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main90304-76002×2iLH85198711-199001

sub90304-76005

sub90316-60004

main90304-76003×2iLH85199001-199505

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028iLH85198711-198804

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26011iLH85198711-198906

main43430-26012iLH85198906-199505

sub43430-26013

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221iLH85198711-198804

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135iLH85198711-198804

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221iLH85198711-198804

43448DCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222iLH85198711-198804

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29065iLH85198711-198906

main43460-29066iLH85198906-199505

sub43460-29067

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29065iLH85198711-198906

main43460-29066iLH85198906-199505

sub43460-29067

9010512138

main90105-12138

9017912047

main90179-12047

16 parts on this diagram · 1 diagram in section
