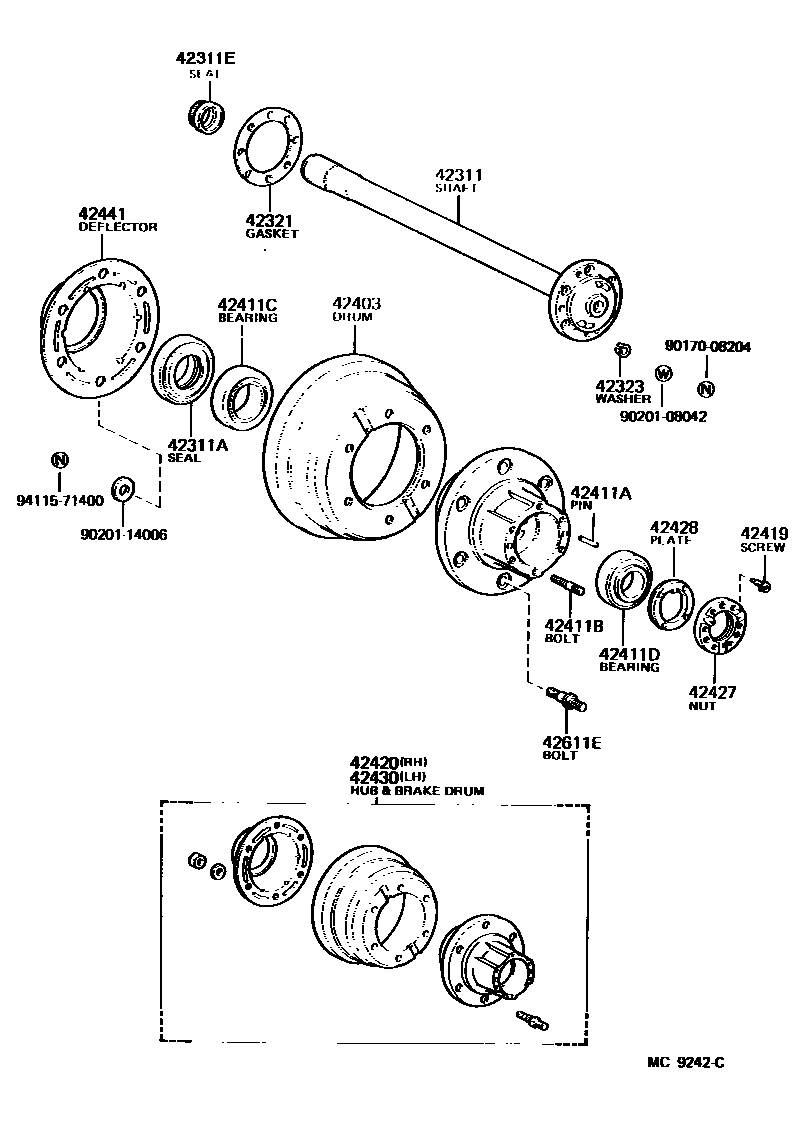

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-25070×2iLH8#198508-199505

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-62001×2iLH8#198508-199505

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iLH8#198508-199505

42321GASKET, REAR AXLE SHAFT

main43422-60010×2iLH80198508-198708

main43422-60020×2iLH8#198708-199205

main43422-60040×2iLH8#199205-199505

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-60010×12iLH8#198508-199505

42403DRUM SUB-ASSY, REAR BRAKE

main42431-26060×2iLH8#198508-199505

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-07057×4iLH8#198508-199505

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-08325×12iLH8#198508-198804

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90080-36064×2iLH8#199408-199505

main90368-49084×2iLH8#198804-199408

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90080-36067×2iLH8#199408-199505

main90368-45087×2iLH8#198508-198804

42419SCREW, REAR AXLE BEARING LOCK NUT

main42419-60011×4iLH8#198508-199505

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-26090iLH80198508-199505

main42420-26140iLH85198711-199505

42427NUT, REAR AXLE BEARING LOCK

main42427-60021×2iLH8#198508-199505

42428PLATE, REAR AXLE LOCK NUT

main42428-60011×2iLH8#198508-199505

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-26090iLH8#198508-198804

main42430-26100iLH85198804-199505

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25020iLH8#198804-199505

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02041×6iLH80198508-198804

RH

main90942-02042iLH80198804-199505

main90942-02064×6iLH85198711-198804

RH

main90942-02065×6iLH85198711-198804

LH

9017008204

main90170-08204

9020108042

main90201-08042

9020114006

main90201-14006

9411571400

main94115-71400

21 parts on this diagram · 1 diagram in section
