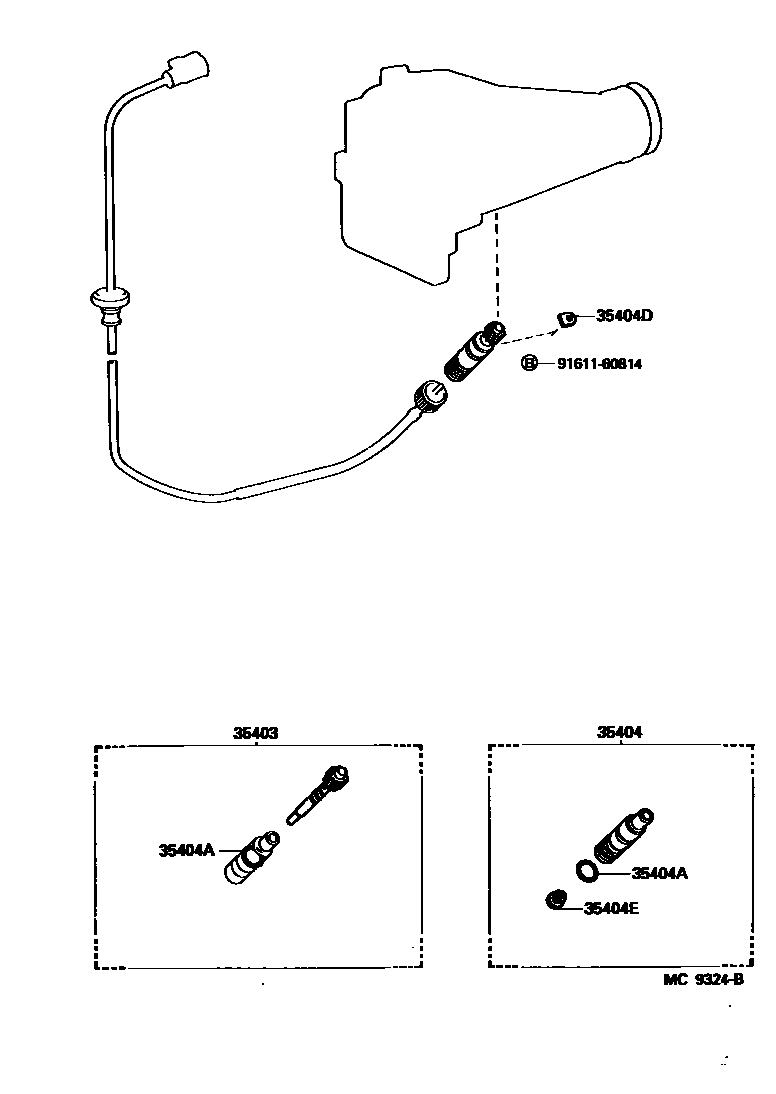

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29016iLH80..4HC198708-198804

MARK 5X19

main33403-29016iLH80..4HC198804-199505

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH80..4HC198708-199505

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH80..4HC198708-199505

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH80..4HC198708-199505

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH80..4HC198708-199505

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
