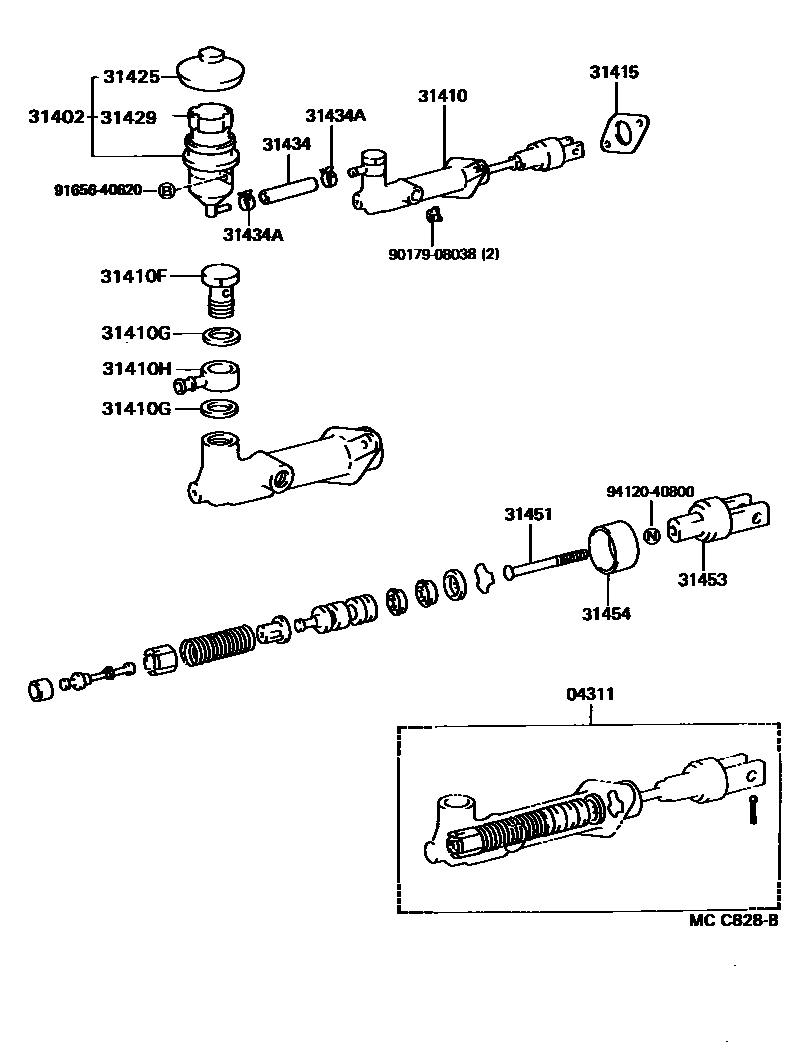

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iLH80..5H198609-198704

main04311-14031iLH8#198704-198804

main04311-22050iLH8#..5H198804-198811

main04311-26040iLH80..5H198508-198609

main04311-60080iLH8#..5H198811-199505

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12080iLH8#..5H198508-199505

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26150iLH80..5H198508-198704

main31420-26151iLH80..5H198704-198710

main31420-26152iLH8#..5H198710-199505

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH8#..5H198508-199505

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iLH8#..5H198508-199505

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH8#..5H198508-199505

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iLH8#..5H198508-199505

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20030iLH8#..5H198508-199505

31429STRAINER, MASTER CYLINDER RESERVOIR

main47299-22020iLH8#..5H198508-199505

31434TUBE, CLUTCH RESERVOIR

main90445-14144iLH8#..5H198508-199505

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLH8#..5H198508-199505

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12040iLH80..5H198508-198609

main31451-12060iLH8#..5H198609-199505

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLH8#..5H198508-198809

main31404-28012iLH8#..5H198809-199505

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iLH8#..5H198508-199505

9017908038

main90179-08038

9165640620

main91656-40620

9412040800

main94120-40800

17 parts on this diagram · 1 diagram in section
