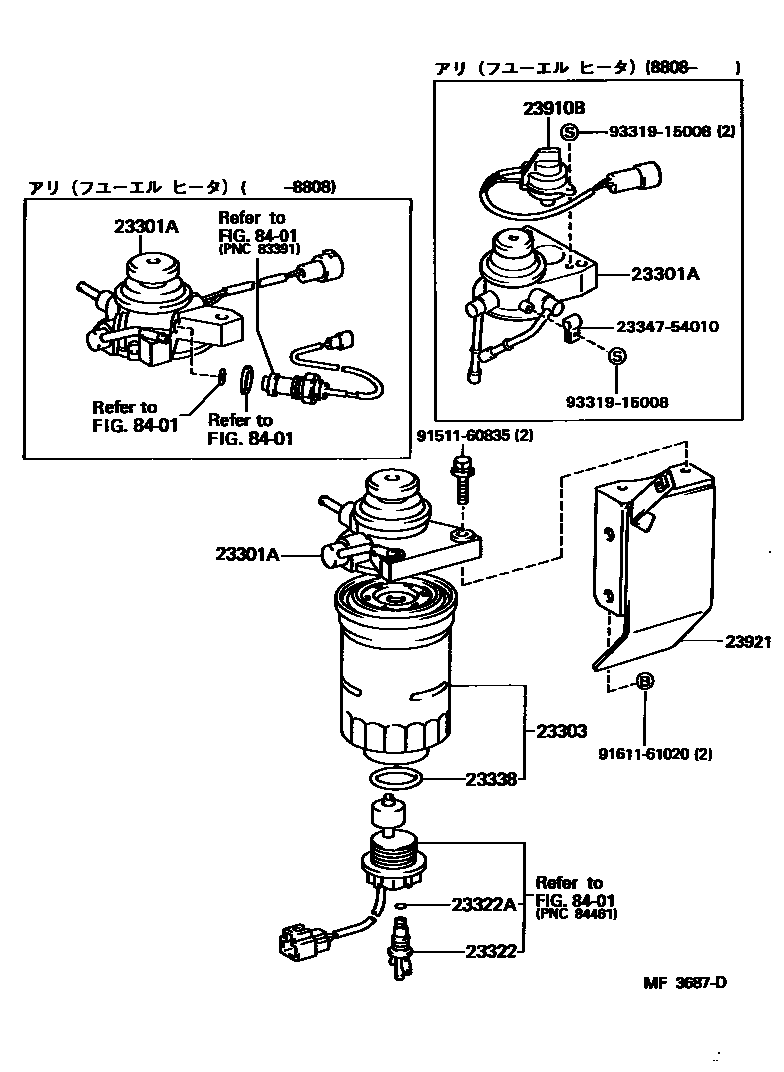

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-54090i2L..LH8#198508-199505

main23301-54100i2L..LH8#198508-198804

W/FUEL HEATER

main23301-54450i2L..LH8#198808-199505

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LH8#198508-199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L..LH8#198508-199505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LH8#198508-199505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LH8#198508-199505

23910BHEATER ASSY, FUEL

main23910-54050i2L..LH8#199309-199505

main23910-64010i2L..LH8#198808-199309

23921SUPPORT, FUEL FILTER

main23921-54380i2L..LH8#198508-199505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2334754010CLIP, CORD

main23347-54010

9151160835

main91511-60835

9161161020

main91611-61020

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
