INJECTION NOZZLE

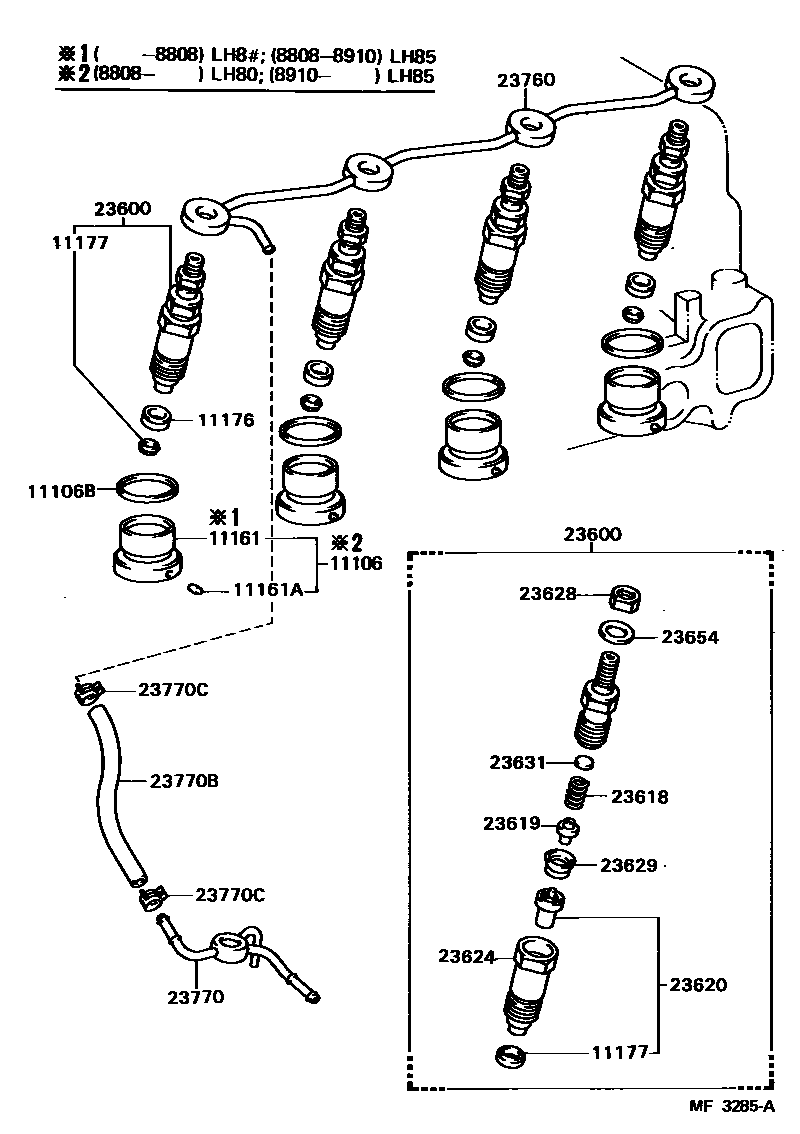

Parts diagram
11106CHAMBER SUB-ASSY, COMBUSTION
main11106-54100i198808-199505
11106BSHIM(FOR COMBUSTION CHAMBER)
main11165-54011i198804-198910
main11165-54030i198808-199505
main11166-54011i198804-198910
main11167-54011i198804-198910
main11168-54011i198804-198910
11161CHAMBER, COMBUSTION
main11161-54070i198508-198910
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
main90250-02046i198508-199505
11176SEAT, INJECTION NOZZLE
main11176-56010i198508-198910
main11176-64010i198808-199505
11177GASKET, INJECTION NOZZLE SEAT
main11177-54010i198508-198608
sub11177-54011
main11177-54011i198608-198910
main11177-54020i199404-199505
main11177-64010i198808-199404
23600HOLDER & NOZZLE SET, NOZZLE
main23600-59035i198508-198910
main23600-59105i198808-199505
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-54020i198508-198801
sub23618-54050
main23618-54050i198801-198910
main23618-54080i198808-199505
23619PIN, NOZZLE HOLDER PRESSURE
main23619-46010i198508-198910
main23619-64010i198808-199505
23620NOZZLE ASSY
main23620-59015i198508-198910
main23620-59045i198808-199505
23624NUT, NOZZLE RETAINING
main23624-54040i198508-198910
main23624-64040i198808-199505
sub23624-64041
23628NUT(FOR RING PACKING SETTING)
main23628-46010i198508-198910
main23628-64010i198808-199505
23629PIECE, DISTANCE(FOR NOZZLE)
main23629-46010i198508-198910
main23629-54080i198908-199505
main23629-64010i198808-198908
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-46010i198804-198910
main23631-64010i198808-199505
main23631-64012i198808-199505
main23631-64014i198808-199505
main23631-64016i198808-199505
main23631-64018i198808-199505
main23632-46010i198804-198910
main23632-64010i198808-199505
main23632-64012i198808-199505
main23632-64014i198808-199505
main23632-64016i198808-199505
main23632-64018i198808-199505
main23633-46010i198804-198910
main23633-64010i198808-199505
main23633-64012i198808-199505
main23633-64014i198808-199505
main23633-64016i198808-199505
main23633-64018i198808-199505
main23634-46010i198804-198910
main23634-64010i198808-199505
main23634-64012i198808-199505
main23634-64014i198808-199505
main23634-64016i198808-199505
main23634-64018i198808-199505
main23635-46010i198804-198910
main23635-64010i198808-199505
main23635-64012i198808-199505
main23636-46010i198804-198910
main23637-46010i198804-198910
main23638-46010i198804-198910
main23639-46010i198804-198910
main23641-46010i198804-198910
main23642-46010i198804-198910
main23643-46010i198804-198910
main23644-46010i198804-198910
main23645-46010i198804-198910
main23646-46010i198804-198910
main23647-46010i198804-198910
main23648-46010i198804-198910
main23649-46010i198804-198910
main23651-46010i198804-198910
main23652-46010i198804-198910
23654WASHER(FOR RING PACKING)
main23654-46010i198804-198910
main23654-64010i198808-199505
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-54011i198508-198910
main23760-54030i198808-199505
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23764-54021i198508-198707
sub23764-54022
main23764-54022i198707-198910
main23764-54080i198808-199505
23770BHOSE, FUEL
main95332-04020i198508-198702
sub95333-04020
main95333-04020i198702-198804
main95333-04020i198804-199505
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main96132-30400i198508-199502
sub96132-51000
main96132-51000i198808-198901
main96133-41000i199502-199505
sub96132-51000

19 parts on this diagram · 1 diagram in section
